Summary of Contents for inVue Smart Lock PL501

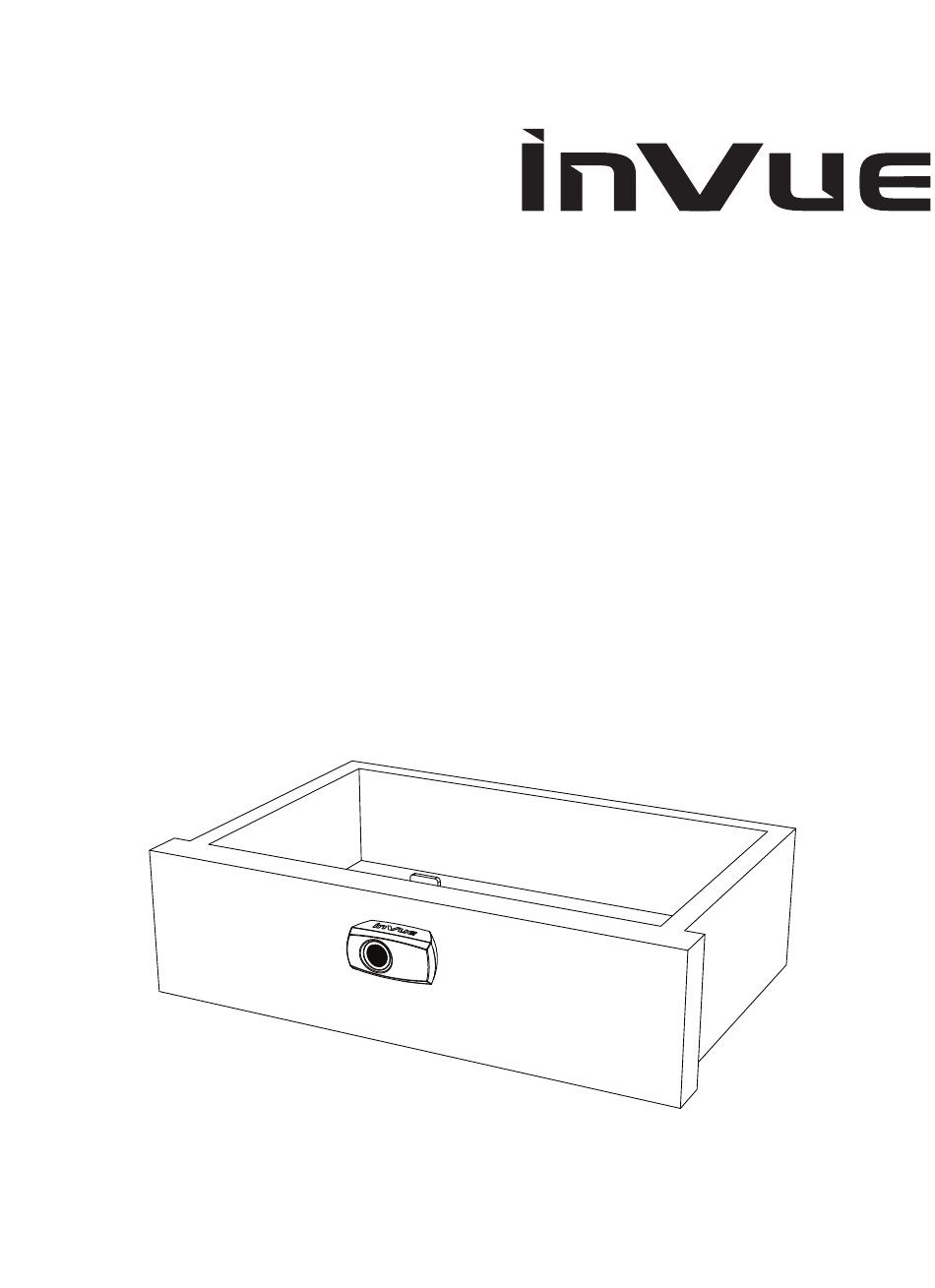

- Page 1 Smart Lock Drawer Lock PL501...
- Page 2 Overview Review entire instruction guide before starting installation. Instructions are intended for drawer applications. Lock Specification Drawer Lock is designed for wood and metal drawers. Drawer door thickness can range from 19 mm – 30 mm (0.75” – 1.18”). Front Housing System Components PL501 1.
- Page 3 Determine location of lock. Open drawer. Align tem- Using power tools, drill a 22 mm (0.87”) center hole plate (inside of drawer) with top edge of drawer. through drawer. Drill two 2.5 mm (0.1”) holes for anti- rotation prongs on lock. Caution: Do not drill prong Note: Illustrations below shows inside view of cabinet.
- Page 4 Attach drawer arm onto back housing and tighten all 3 Slide front housing through drawer. screws.
- Page 5 Extend flex cable through pre-drilled hole. Connect Align front housing and back housing with hole. Tighten cable to back housing. Store excess cable in drilled both long screws to connect front and back housing. hole or front housing.
- Page 6 LOCK OPERATION USING IR2 KEY Close drawer. Test lock to confirm proper function. Use IR2 Key to lock/unlock installation (see page 11). Position IR2 Key against lock, push button and wait for “beep” before removing key. Lock and unlock cabinets several times to ensure proper operation.
- Page 7 LOCK STATUS INDICATORS Unlocked Locked Error (not fully locked) Note: Unlock lock. Confirm no obstructions. Fully close cabinet and try again.
- Page 9 Corporate Office (North America) // 704.752.6513 • 888.55.INVUE Europe, Middle East & Africa // +31.23.8900150 Asia Pacific // +852.3127.6811 Latin America // +52.55.9000.3957 © 2013 InVue Security Products Inc. All rights reserved. InVue is a registered trademark of InVue Security Products.
