RAC2201 Installation

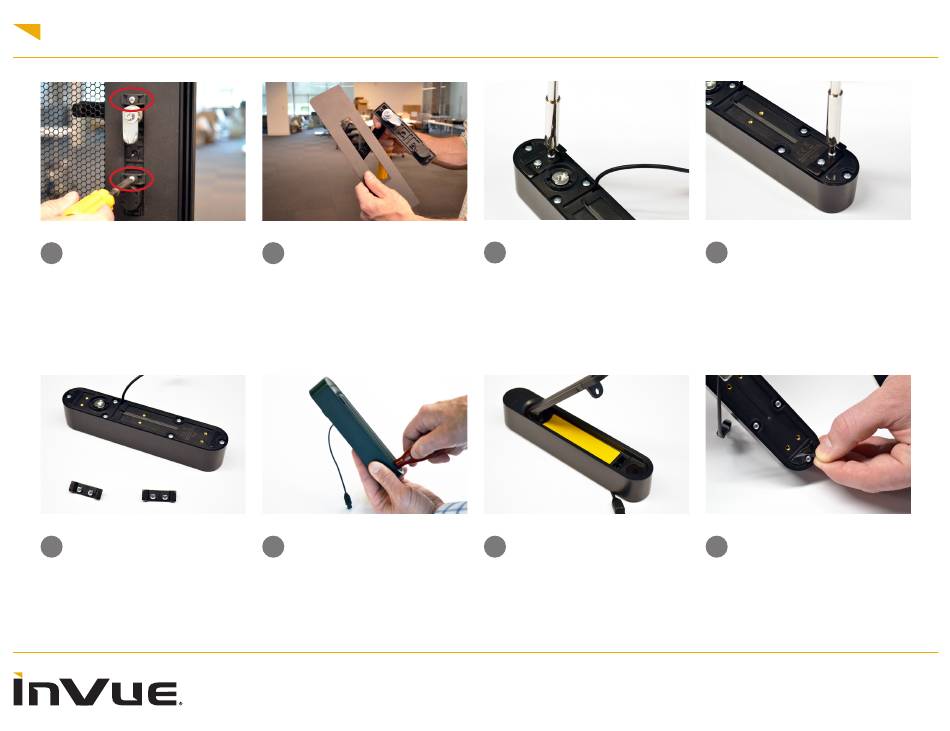

Single Door Installation:
1
Remove the 2 screws and
brackets holding the existing lock
to the door.
5
Remove the brackets and screws
from the RAC Lock and set aside.
2
Remove the lock and the outer
panel from the door. Set aside for
later use.
6
Place an installer OneKEY into the
IR port on the lock and press the
button on the key.
3
Remove the 2 screws holding the
top bracket on the back of the
RAC Lock body.
7
The handle will pop up.
1
4
Remove the 2 screws holding the
bottom bracket on the back of the
RAC Lock body.
8
Peel the clear film from the 2
adhesives on the back of the RAC
Lock.
Note: The adhesives are located
at the top and bottom of the RAC
Lock body.
For technical assistance call
NA / LATAM // 704.752.6513 • 888.55.INVUE
EMEA // +31.23.8900150
APAC // +852.3127.6811
