inVue LL301 Manual

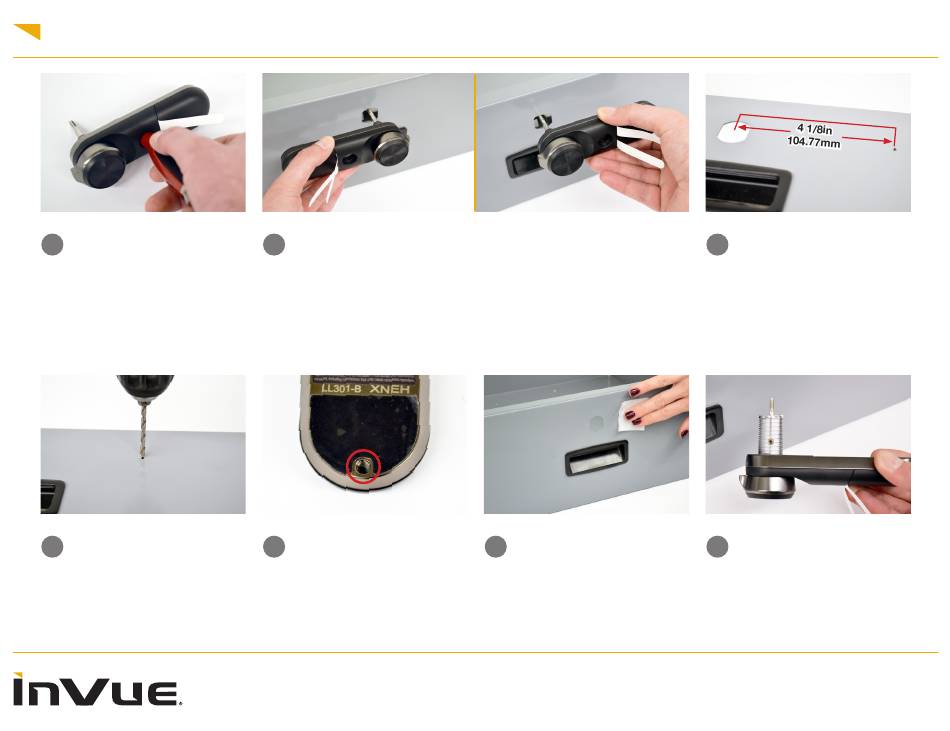

LIVE Cam Lock LL301
1 Optional:
For ease of installation, use an
Installer Key (if you have one)
to unlock the lock. If using the
Installer Key in a lock with the
battery tabs in place, it will pause
the lock in an unlocked state.
3b Drill a hole in the drawer face with
a 3/16 inch (or 5mm) drill bit.
2 Determine the lock mounting orientation.
3c Once the lock body is installed
onto the drawer, insert and
tighten the M4 screw into the
screw hole at the bottom of the
lock body.
Or Or
4 Use the provided alcohol wipe
to clean the area where the lock
body will be mounted. Allow it to
dry completely.
1
3a Optional Security Screw
Installation:
If desired for additional stability, a
M4 screw can be used to further
secure the lock to the drawer.
From the center of the hole,
measure 4 1/8 inch (104.77mm).
Make a mark in line with the hole.
5 Place the shaft adapter over the
shaft on the lock body. Ensure that
it is correctly oriented to fit into
the hole in the fixture.
