Assembly instructions
Sport-Thieme

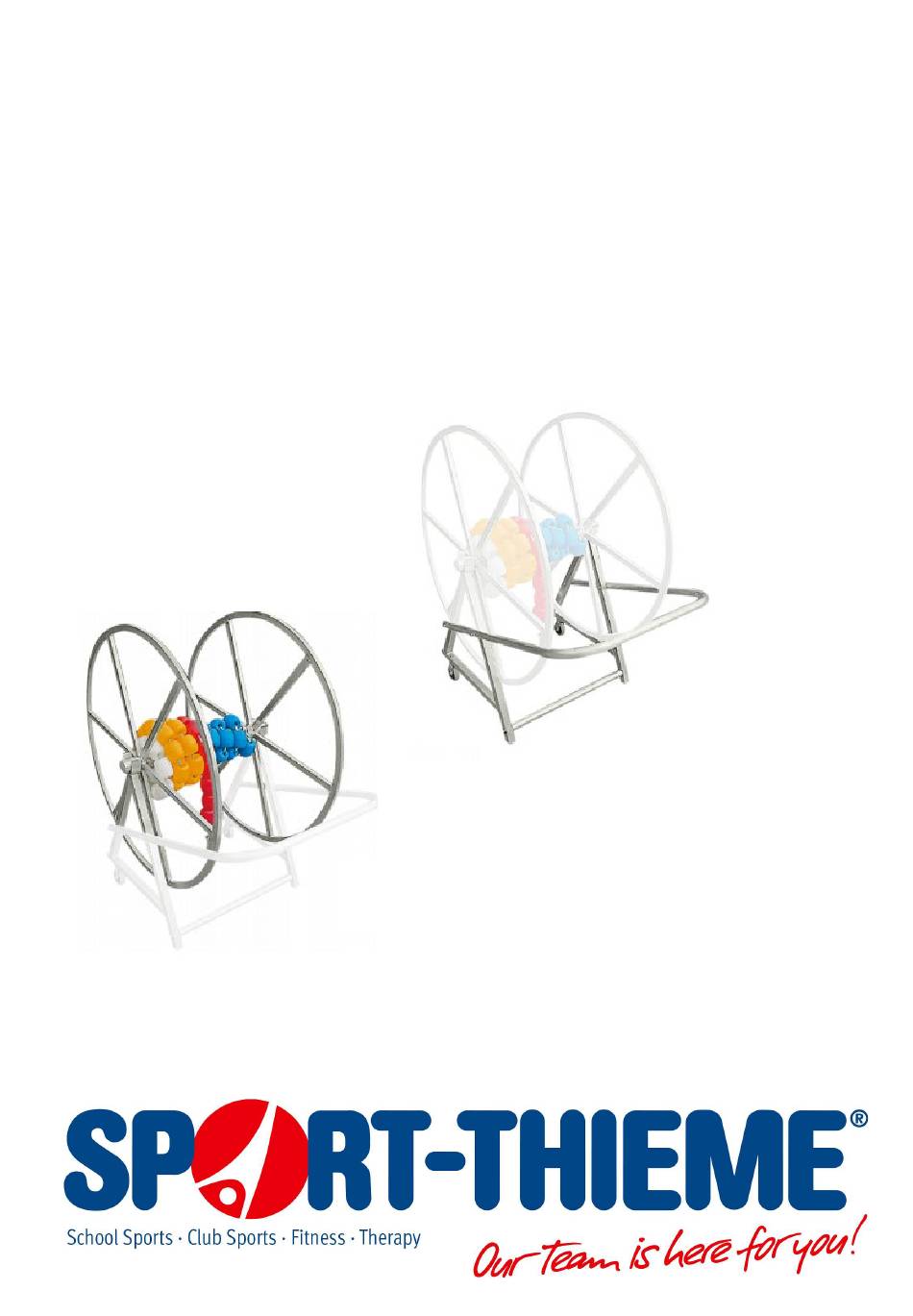

Aluminium Reel Trolley
Thank you for choosing a Sport-Thieme product!
Please read the instructions carefully before use so you can enjoy this product safely.
If you have any questions, our team is here for you.
Product code 114 5410:
Sport-Thieme
®
aluminium reel
Product codes: 114 5537
& 114 5410
Product code 114 5537:
Sport-Thieme
®
aluminium reel trolley
Version 02/2020 | Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Sport-thieme 114 5410
Summary of Contents for Sport-thieme 114 5410
- Page 1 & 114 5410 Sport-Thieme Aluminium Reel Trolley Thank you for choosing a Sport-Thieme product! Please read the instructions carefully before use so you can enjoy this product safely. If you have any questions, our team is here for you. Product code 114 5537: Sport-Thieme ®...
- Page 2 Assembly instructions For product codes 114 5537 & 114 5410 1. Items included Please check that all parts listed below are present before starting assembly. Trolley Reel Description Description Side section Wheel Crossbar Tube Handlebar Accessory pack Accessory pack Trolley accessory pack...
- Page 3 Assembly instructions For product codes 114 5537 & 114 5410 2. General We recommend assembling the parts on a smooth surface to prevent the items from becoming scratched! Preparation Remove the packaging and lay out all parts. You will need the following tools for assembly: 1 hammer or rubber mallet •...
- Page 4 Assembly instructions For product codes 114 5537 & 114 5410 C) Plastic caps Attach the two round plastic caps (dia. 30 mm) to the handlebar ends and the four square plastic caps (30×30 mm) to the relevant side section ends using a hammer or rubber mallet.
- Page 5 Assembly instructions For product codes 114 5537 & 114 5410 4. Reel assembly Insert the tube (dia. 50 mm) into the hub of each wheel and align the holes of the tube with those of the wheels (see the first image below, on the left). Fit each of the two ring eyelet screws (M8×30) with an M8 DIN 934 nut –...
- Page 6 We recommend rinsing the product with clean water after each use and then carefully drying it with a soft cloth. If you have any questions, our experts at Sport-Thieme are here for you. Haspo Sportgeräte GmbH & Co. KG owns the copyright to the illustrations and text contained herein. Use is not permitted, and only allowed after prior agreement.
