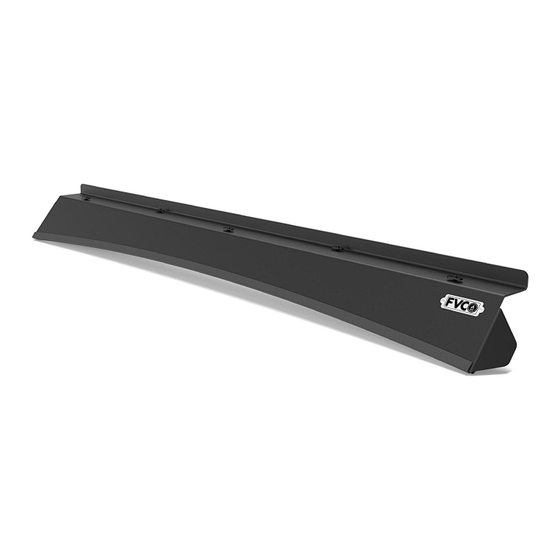

S PRI NTER VAN LOW PRO FR ON T FAIR I NG - HI GH RO OF
SP0111 B
INSTALLATION
GUIDE
F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6
TOOLS REQUIRED
(NOT INCLUDED)
+
3/16" ALLEN WRENCH
+
5/32" ALLEN WRENCH
INSTALL INFO
TIME TO INSTALL THIS PRODUCT: 45 MINUTES
Additional help is suggested for a few of the install
steps.
BEFORE YOU START
Please inspect the product and packaging upon
delivery to ensure there are no issues and that all
parts and hardware are accounted for.
Contact us ASAP if anything is missing at:
support@flatlinevanco.com
0 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for FVC SP0111B
Summary of Contents for FVC SP0111B
- Page 1 INSTALLATION GUIDE S PRI NTER VAN LOW PRO FR ON T FAIR I NG - HI GH RO OF SP0111 B TOOLS REQUIRED (NOT INCLUDED) 3/16” ALLEN WRENCH 5/32” ALLEN WRENCH INSTALL INFO TIME TO INSTALL THIS PRODUCT: 45 MINUTES Additional help is suggested for a few of the install steps.
-
Page 2: Before You Start
BEFORE YOU START All Flatline Van Co products must be properly assembled and secured before attaching to your vehicle. Improper attachment could result in an automobile accident, and could cause serious bodily injury or death to you or to others involved. You are responsible for assembling and securing Flatline Van Co products to your vehicle, checking the mounting points and attachments prior to use, and regularly inspecting the products for wear and or damage. -
Page 3: Package Contents
PACKAGE CONTENTS SPRINTER FRONT FAIRING FAIRING GASKET QTY: 1 QTY: 1 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6... - Page 4 HARDWARE 1/4-20 X 0.5 BUTTON HEAD 1/4 SCREW BELLEVILLE 1/4-20 ECONOMY T-NUT HEX DRIVE SCREW SPRING LOCK WASHER QTY: 5 QTY: 5 QTY: 5 F L AT L I N E VA N C O • S U P P O R T @ F L AT L I N EVA N C O . C O M • 8 8 8 - 6 6 7- 5 5 7 6...
- Page 5 5/32” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: 3/16” ALLEN WRENCH STEP | 01 FAIRING ASSEMBLY 1.1 Prepare Crossbar: if you have already installed your low 1/4-20” T-NUT pro roof rack, remove the front crossbar from the rack before beginning. 1.2 Fairing Assembly: Insert the hardware as shown in FIG 1 1/4”...
- Page 6 5/32” ALLEN WRENCH TOOLS REQUIRED FOR THIS STEP: 3/16” ALLEN WRENCH STEP | 02 FAIRING INSTALL 2.1 Crossbar Install: Now, slide the crossbar onto the fairing. You’ll have to straighten each t-nut as you go to get it to feed into the crossbar correctly (FIG 3).
- Page 7 FVC (and see) from you! Head to the products and following along and we will make it right. FVC is product page and click “Leave a company of van and outdoor with your adventures. Tag us Review.”...
