Receiving

Make sure charged Ni-Cd or alkaline batteries are installed.
(p. 1)
q Push [POWER] for 2 sec. to turn power ON.
w Push [VOL Y] or [VOL Z] to set the desired audio level.
• The frequency display shows the volume level while setting. See
the next page for details.
e Set an operating frequency. (pgs. 6, 7)
r Set the squelch level.
• While pushing [SQL], rotate [DIAL].
• The first click of [DIAL] indicates the current squelch level.
• "LEVEL1" is loose squelch and "LEVEL9" is tight squelch.
• "AUTO" indicates automatic level adjustment with a noise pulse
count system.
• Push and hold [SQL] to open the squelch manually.
t When a signal is received:
Squelch opens and audio is emitted from the speaker.
The S/RF indicator shows the relative signal strength.

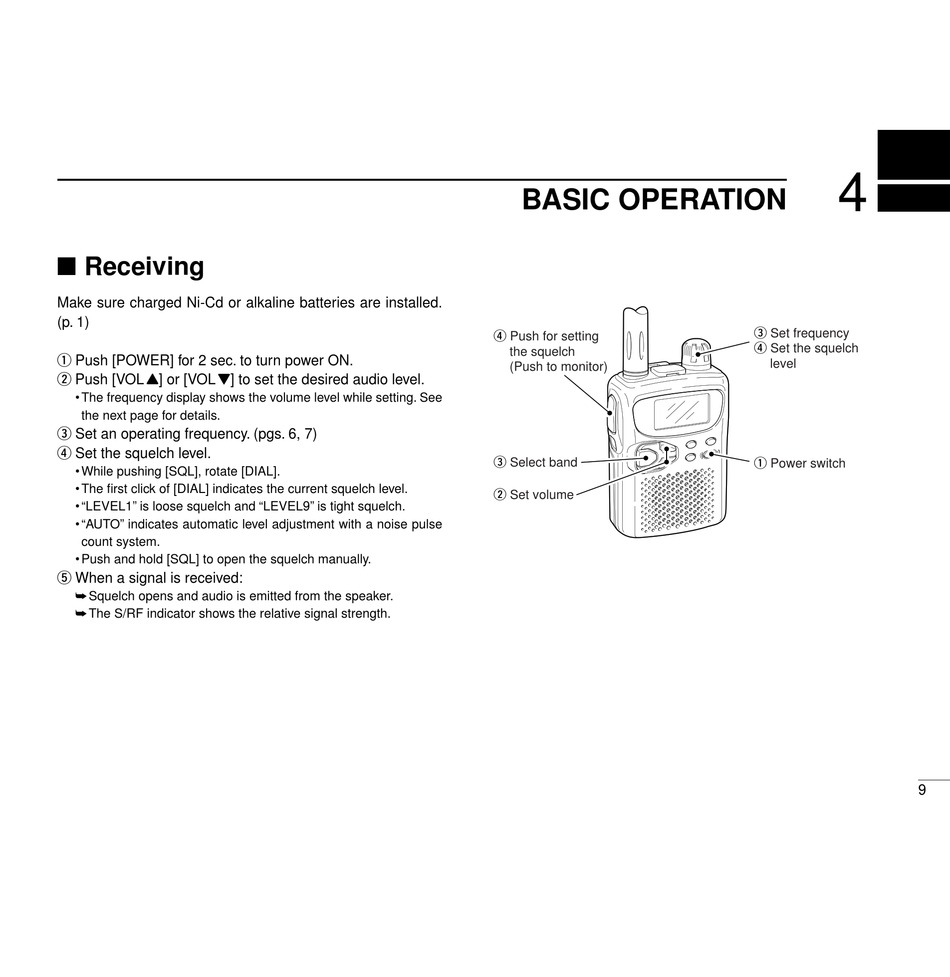

BASIC OPERATION

r
Push for setting
the squelch
(Push to monitor)
e
Select band
w
Set volume
4
e
Set frequency
r
Set the squelch
level
q
Power switch
