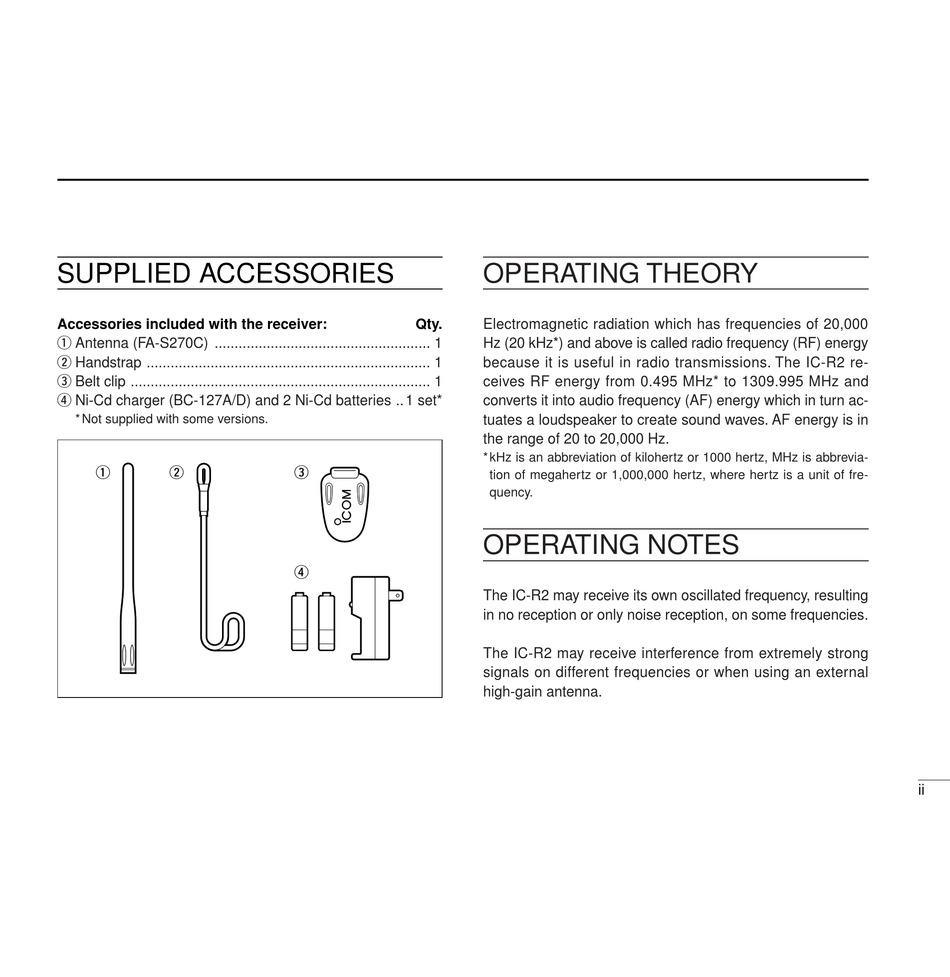

SUPPLIED ACCESSORIES

Accessories included with the receiver:
q Antenna (FA-S270C) ...................................................... 1
w Handstrap ....................................................................... 1
e Belt clip ........................................................................... 1
r Ni-Cd charger (BC-127A/D) and 2 Ni-Cd batteries .. 1 set*
* Not supplied with some versions.
q w
Qty.
e
r

OPERATING THEORY

Electromagnetic radiation which has frequencies of 20,000
Hz (20 kHz*) and above is called radio frequency (RF) energy
because it is useful in radio transmissions. The IC-R2 re-
ceives RF energy from 0.495 MHz* to 1309.995 MHz and
converts it into audio frequency (AF) energy which in turn ac-
tuates a loudspeaker to create sound waves. AF energy is in
the range of 20 to 20,000 Hz.
* kHz is an abbreviation of kilohertz or 1000 hertz, MHz is abbrevia-
tion of megahertz or 1,000,000 hertz, where hertz is a unit of fre-
quency.

OPERATING NOTES

The IC-R2 may receive its own oscillated frequency, resulting
in no reception or only noise reception, on some frequencies.
The IC-R2 may receive interference from extremely strong
signals on different frequencies or when using an external
high-gain antenna.
ii
