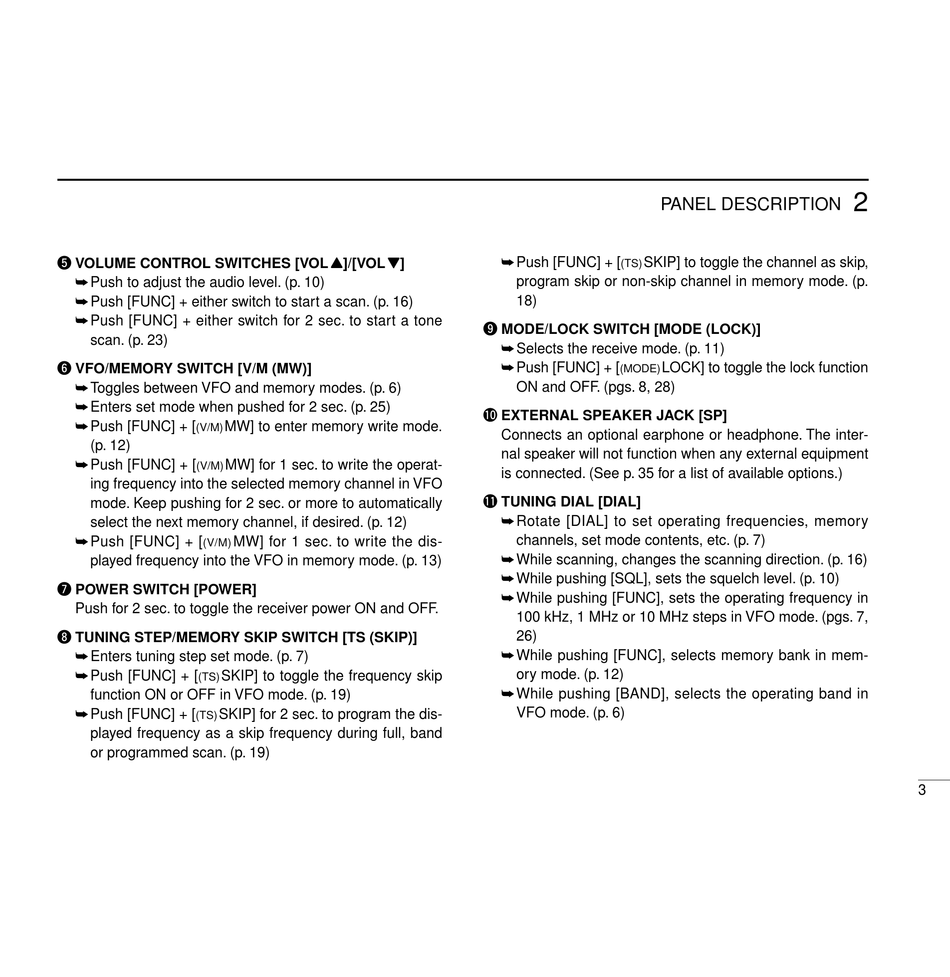

Icom IC-R2 Instruction Manual page 7

t VOLUME CONTROL SWITCHES [VOL Y]/[VOL Z]
Push to adjust the audio level. (p. 10)
Push [FUNC] + either switch to start a scan. (p. 16)
Push [FUNC] + either switch for 2 sec. to start a tone
scan. (p. 23)
y VFO/MEMORY SWITCH [V/M (MW)]
Toggles between VFO and memory modes. (p. 6)
Enters set mode when pushed for 2 sec. (p. 25)
Push [FUNC] + [ MW] to enter memory write mode.
(V/M)
(p. 12)
Push [FUNC] + [ MW] for 1 sec. to write the operat-
(V/M)
ing frequency into the selected memory channel in VFO
mode. Keep pushing for 2 sec. or more to automatically
select the next memory channel, if desired. (p. 12)
Push [FUNC] + [ MW] for 1 sec. to write the dis-
(V/M)
played frequency into the VFO in memory mode. (p. 13)
u POWER SWITCH [POWER]
Push for 2 sec. to toggle the receiver power ON and OFF.
i TUNING STEP/MEMORY SKIP SWITCH [TS (SKIP)]
Enters tuning step set mode. (p. 7)
Push [FUNC] + [ SKIP] to toggle the frequency skip
(TS)
function ON or OFF in VFO mode. (p. 19)
Push [FUNC] + [ SKIP] for 2 sec. to program the dis-
(TS)
played frequency as a skip frequency during full, band
or programmed scan. (p. 19)
PANEL DESCRIPTION
Push [FUNC] + [ SKIP] to toggle the channel as skip,
(TS)
program skip or non-skip channel in memory mode. (p.
18)
o MODE/LOCK SWITCH [MODE (LOCK)]
Selects the receive mode. (p. 11)
Push [FUNC] + [ LOCK] to toggle the lock function
(MODE)
ON and OFF. (pgs. 8, 28)
!0 EXTERNAL SPEAKER JACK [SP]
Connects an optional earphone or headphone. The inter-
nal speaker will not function when any external equipment
is connected. (See p. 35 for a list of available options.)
!1 TUNING DIAL [DIAL]
Rotate [DIAL] to set operating frequencies, memory
channels, set mode contents, etc. (p. 7)
While scanning, changes the scanning direction. (p. 16)
While pushing [SQL], sets the squelch level. (p. 10)
While pushing [FUNC], sets the operating frequency in
100 kHz, 1 MHz or 10 MHz steps in VFO mode. (pgs. 7,
26)
While pushing [FUNC], selects memory bank in mem-
ory mode. (p. 12)
While pushing [BAND], selects the operating band in
VFO mode. (p. 6)
