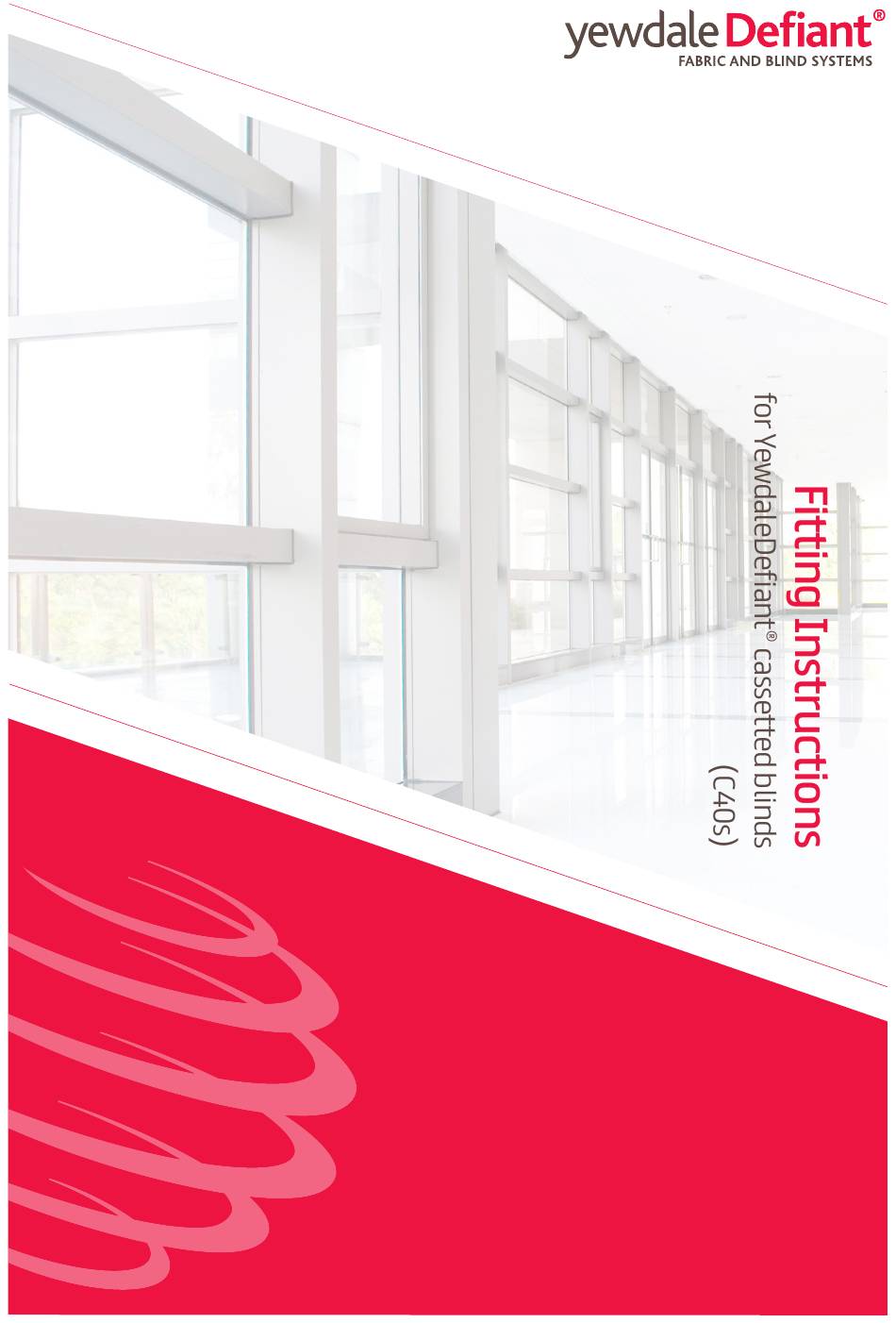

- Page 1 Fitting Instructions for YewdaleDefiant cassettes blinds ® (C40s) yewdale.co.uk Part no: 2001...
-
Page 2: Safety Instructions
Fitting Instructions YewdaleDefiant cassetted blinds (C40s) ® Safety Instructions: Loops in pull cords, chains, tapes and inner cords that operate the product can cause strangulation To avoid strangulation and entanglement, keep cords out of the reach of young children. Cords may become wrapped around a child’s neck Move beds, cots and furniture away from window covering cords Do not tie cords together. - Page 3 Cassetted blinds with side channels: N.B. This blind should be installed by a person competent in DIY. If in doubt please consult a professional. Remove the two safety screws in the underside of the headbox to enable the cover to open (if the blind is a sidewinder, also unscrew the chain guide). Using the indents (see figure below) within the headbox, drill 3.8mm fixing holes either in the top or back depending on whether it is required to be face or recess fixed.
- Page 4 Fitting Instructions YewdaleDefiant cassetted blinds (C40s) ® The spring would have been tensioned during manufacturing but the tension can be increased or decreased if required. If the fabric does not wind up completely when the blind is operated, greater spring tension can be applied as follows: a) Remove the blind and the back bar from the headbox.
- Page 5 Instructions for Standard Face Fix Side Channels: N.B. This blind should be installed by a person competent in DIY. If in doubt please consult a professional. N.B It is important that the blind is in the headbox with the blind fully retracted when the side channels are being installed.
- Page 6 Fitting Instructions YewdaleDefiant cassetted blinds (C40s) ® Ensure the relevant child safety device is used to comply with BS EN13120:2009+A1:2014, BS EN16433:2014 and BS EN16434:2014 as follows: *You will have been provided with either a chain tidy or easy break chain connector (also see page 8 &...
- Page 7 Instructions for Standard Recess Fix Side Channels: N.B This blind should be installed by a person competent in DIY. If in doubt please consult a professional. It is important that the blind is in the headbox with the blind fully retracted when the side channels are being installed.
- Page 8 Fitting Instructions YewdaleDefiant cassetted blinds (C40s) ® Ensure the relevant child safety device is used to comply with BS EN13120:2009+A1:2014, BS EN16433:2014 and BS EN16434:2014 as follows: *You will have been provided with either a chain tidy or easy break chain connector (also see page 8 &...
- Page 9 Instructions for Tracker Side Channels: N.B. This blind should be installed by a person competent in DIY. If in doubt please consult a professional. Ensure that the blind is in the headbox and that it is fully retracted before the side channels are installed. Fix the bottom angle (if required) making sure it is directly in line with the back and end of the headbox.
- Page 10 Fitting Instructions YewdaleDefiant cassetted blinds (C40s) ® Use packers if necessary to ensure the sidechannels remain lined up correctly and level all the way down. Check that the side channels are fixed square by measuring diagonals. Feed the PVC insert up into the side channel (with the fluted end towards the headbox) making sure the zip locates within the insert.
- Page 11 Ensure the relevant child safety device is used to comply with BS EN13120:2009+A1:2014, BS EN16433:2014 and BS EN16434:2014 as follows: *You will have been provided with either a chain tidy or easy break chain connector (also see page 8 & 11) Chain Tidy The chain tidy will be attached to the chain when the blind arrives.
- Page 12 Yewdale, Enterprise Way, Wickford, Essex SS11 8DH Call +44 (0)1268 570900 +44 (0)1268 732509 Email enquires@yewdale.co.uk Visit yewdale.co.uk For more information on all Yewdale products, please call the sales department. ® ® ® ® ® A comprehensive range The only fail-safe range of The industry’s preferred A dedicated range of privacy A concise approach to...
