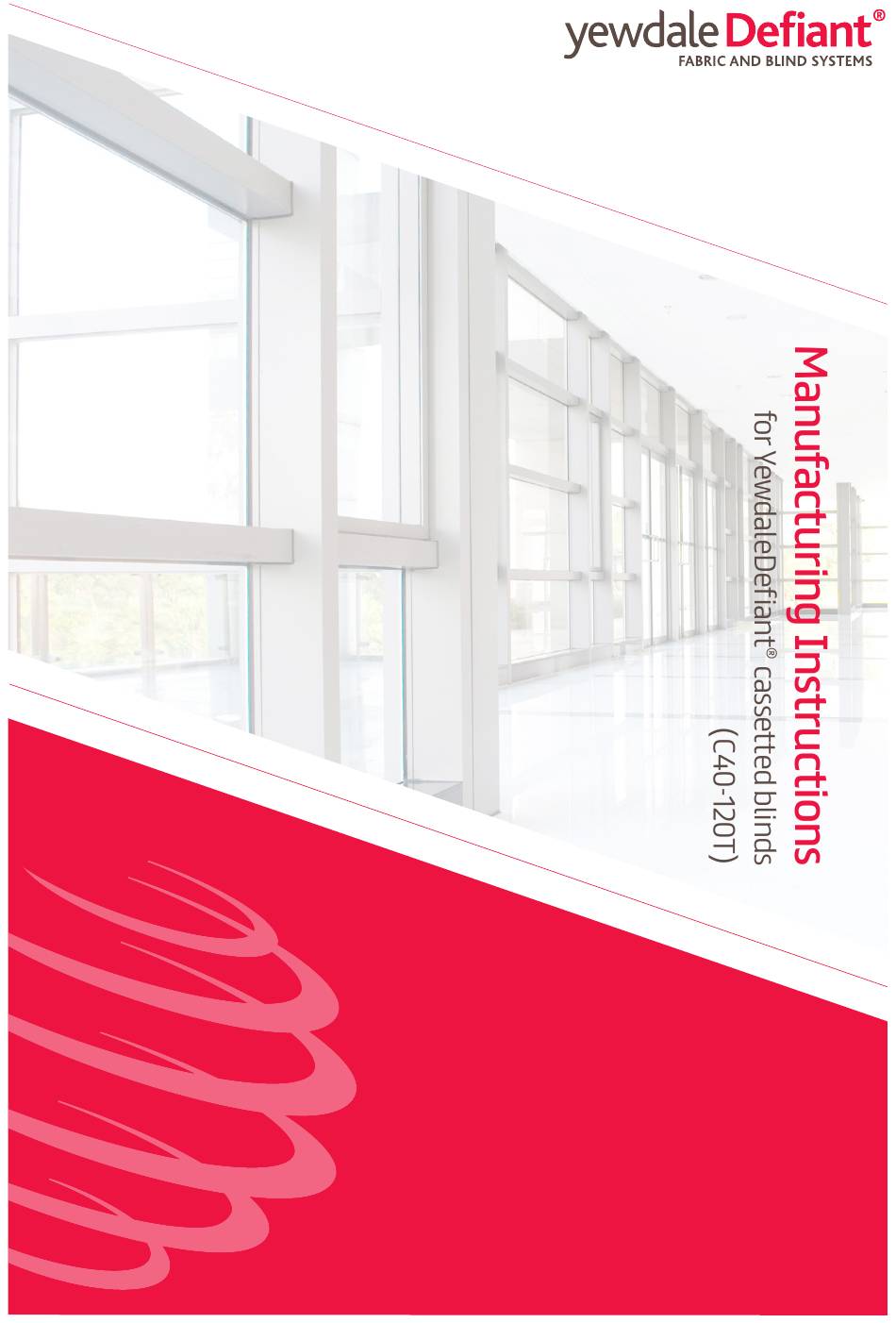

- Page 1 Manufacturing Instructions for YewdaleDefiant cassetted blinds ® (C40-120T) yewdale.co.uk Part no: 2007...
-
Page 2: Safety Instructions
Manufacturing Instructions YewdaleDefiant cassetted blinds (C40-120T) ® Safety Instructions: Loops in pull cords, chains, tapes and inner cords that operate the product can cause strangulation To avoid strangulation and entanglement, keep cords out of the reach of young children. Cords may become wrapped around a child’s neck Move beds, cots and furniture away from window covering cords Do not tie cords together. - Page 3 C40-120T Cassetted Blinds: 940124 End plates (set) 940011 918252 Transition plate (set) 65mm Barrel Sleeve 940120 Headbox fascia 120 918240 53mm Barrel 918240 - 53mm Barrel 933010 Safety Cover Screw 940121 Barrel Sleeve for tracker systems 911782 Fabric retaining pip...
- Page 4 Manufacturing Instructions YewdaleDefiant cassetted blinds (C40-120T) ® C40-120T Cassetted Blinds - Deduction Chart: Recess to blind size - 3mm on the width and 2mm on the drop Description Chart Part No. Deduction Headbox Cut 940120 Blind width –6mm Headbox cover/fascia cut 940121 Blind width –6.5mm...
- Page 5 C40-120T Fabric diagram: Folded pocket with 70163 insert Call: +44 (0)1268 570900 Fax: +44 (0)1268 732509 Email: enquiries@yewdale.co.uk Visit: www.yewdale.co.uk...
- Page 6 Manufacturing Instructions YewdaleDefiant cassetted blinds (C40-120T) ® C40-120T Cassetted Blinds: Ensuring the head box/fascia profile is square within the saw, cut the head box to size. Ensuring the head box cover is square within the saw, cut the head box to size making sure there is no distortion.
- Page 7 b) Remove the template and drill an 8mm hole. c) Place the punch into position and tighten the bolt, ensuring the punch is held square at all times. N.B It is critical that the punch is held square. To drill the holes for the safety screws at either end of the head box cover, use the template provided.
- Page 8 Yewdale, Enterprise Way, Wickford, Essex SS11 8DH Call +44 (0)1268 570900 +44 (0)1268 732509 Email enquires@yewdale.co.uk Visit yewdale.co.uk For more information on all Yewdale products, please call the sales department.
