Summary of Contents for YewdaleDefiant C44-90

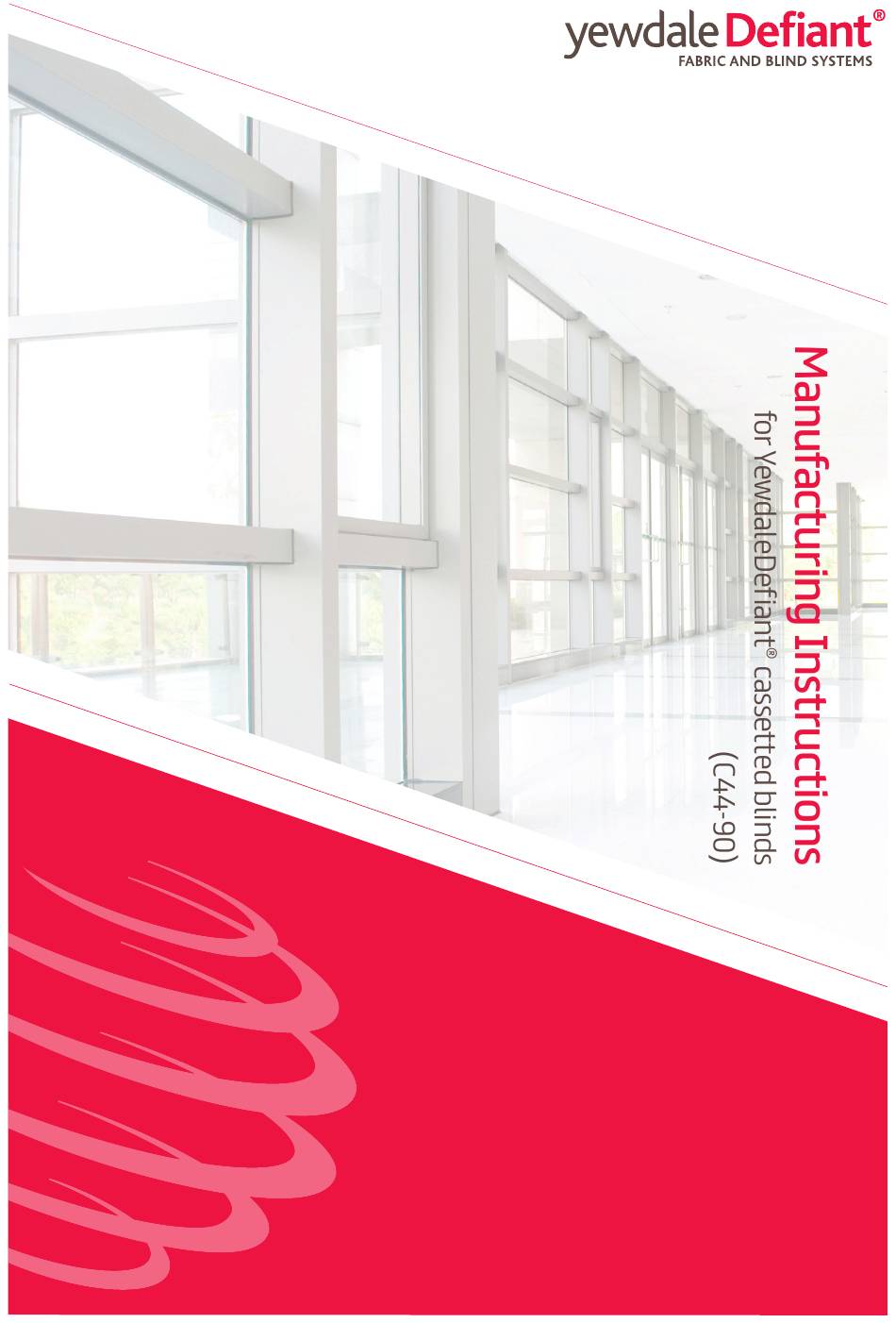

- Page 1 Manufacturing Instructions for YewdaleDefiant cassetted blinds ® (C44-90) yewdale.co.uk Part no: 2008...
- Page 2 Manufacturing Instructions YewdaleDefiant cassetted blinds (C44-90) ® C44-90 Cassetted Blinds - Deduction Chart: Recess to blind size - 3mm on the width and 2mm on the drop Description Chart Part No. Deduction Headbox Cut 940090 Blind width –6mm Headbox cover/fascia cut 940091 Blind width –6.5mm...
- Page 3 Call: +44 (0)1268 570900 Fax: +44 (0)1268 732509 Email: enquiries@yewdale.co.uk Visit: www.yewdale.co.uk...
- Page 4 Manufacturing Instructions YewdaleDefiant cassetted blinds (C44-90) ® C44-90 Cassetted Blinds: 940092 End plates (set) 940008 Transition plate (set) 940090 Headbox fascia 90 938027 45mm Barrel 940002 Safety Cover Screw 933401 45mm Crank Support 940091 Headbox cover 70403 Gear Box 1:5...
- Page 5 C44-90 Cassetted Blinds: Ensuring the head box/fascia profile is square within the saw, cut the head box to size. Ensuring the head box cover is square within the saw, cut the cover to size making sure there is no distortion.
- Page 6 Manufacturing Instructions YewdaleDefiant cassetted blinds (C44-90) ® Insert the transition plates into the head box making sure the gear is on the control side and attach the end plates using 933010 screws. Insert the gear drive and pin end into the barrel and place barrel and fabric into the head box.
- Page 7 Call: +44 (0)1268 570900 Fax: +44 (0)1268 732509 Email: enquiries@yewdale.co.uk Visit: www.yewdale.co.uk...
- Page 8 Yewdale, Enterprise Way, Wickford, Essex SS11 8DH Call +44 (0)1268 570900 +44 (0)1268 732509 Email enquires@yewdale.co.uk Visit yewdale.co.uk For more information on all Yewdale products, please call the sales department. ® ® ® ® ® A comprehensive range The only fail-safe range of The industry’s preferred A dedicated range of privacy A concise approach to...
