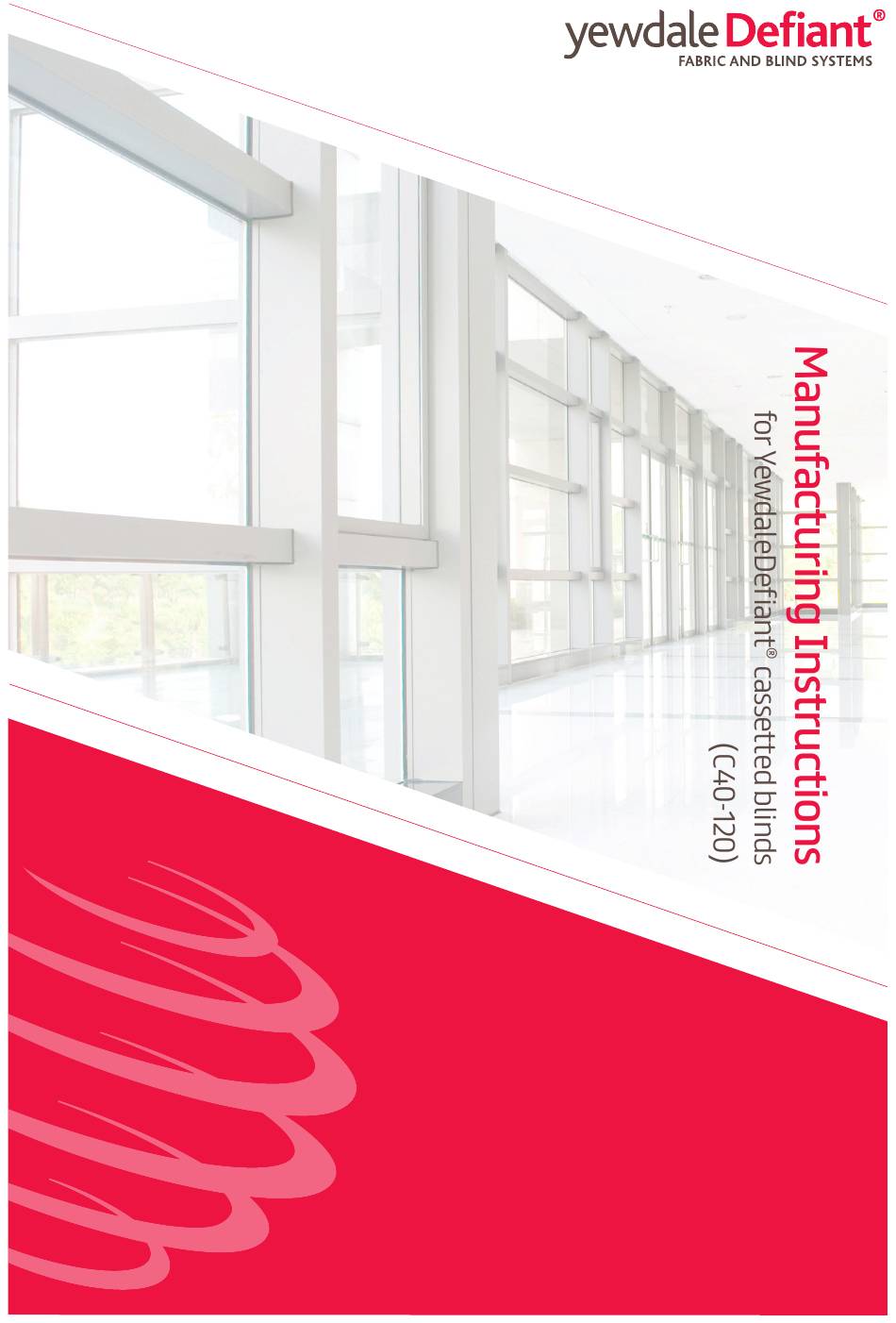

- Page 1 Manufacturing Instructions for YewdaleDefiant cassetted blinds ® (C40-120) yewdale.co.uk Part no: 2006...
-
Page 2: Safety Instructions
Manufacturing Instructions YewdaleDefiant cassetted blinds (C40-120) ® Safety Instructions: Loops in pull cords, chains, tapes and inner cords that operate the product can cause strangulation To avoid strangulation and entanglement, keep cords out of the reach of young children. Cords may become wrapped around a child’s neck Move beds, cots and furniture away from window covering cords Do not tie cords together. - Page 3 Call: +44 (0)1268 570900 Fax: +44 (0)1268 732509 Email: enquiries@yewdale.co.uk Visit: www.yewdale.co.uk...
- Page 4 Manufacturing Instructions YewdaleDefiant cassetted blinds (C40-120) ® C40-120 Cassetted Blinds - Deduction Chart: Recess to blind size - 3mm on the width and 2mm on the drop Description Chart Part No. Deduction Headbox Cut 940120 Blind width –6mm Headbox cover/fascia cut 940121 Blind width –6.5mm...
- Page 5 C40-120 Cassetted Blinds: 940122 End plates (set) 940011 Transition plate (set) 940120 Headbox fascia 120 918240 - 53mm Barrel 918247 - 70mm Barrel 933010 Safety Cover Screw 917277W Geared down clutch 940121 Headbox cover 911782 Fabric retaining pip 940006 Screws for...
- Page 6 Manufacturing Instructions YewdaleDefiant cassetted blinds (C40-120) ® C40-120 Cassetted Blinds: Ensuring the head box/fascia profile is square within the saw, cut the head box to size. Ensuring the head box cover is square within the saw, cut the head box to size making sure there is no distortion.
- Page 7 b) Remove the template and drill an 8mm hole. c) Place the punch into position and tighten the bolt, ensuring the punch is held square at all times. N.B It is critical that the punch is held square. To drill the holes for the safety screws at either end of the head box cover, use the template provided.
- Page 8 Yewdale, Enterprise Way, Wickford, Essex SS11 8DH Call +44 (0)1268 570900 +44 (0)1268 732509 Email enquires@yewdale.co.uk Visit yewdale.co.uk For more information on all Yewdale products, please call the sales department. ® ® ® ® ® A comprehensive range The only fail-safe range of The industry’s preferred A dedicated range of privacy A concise approach to...
