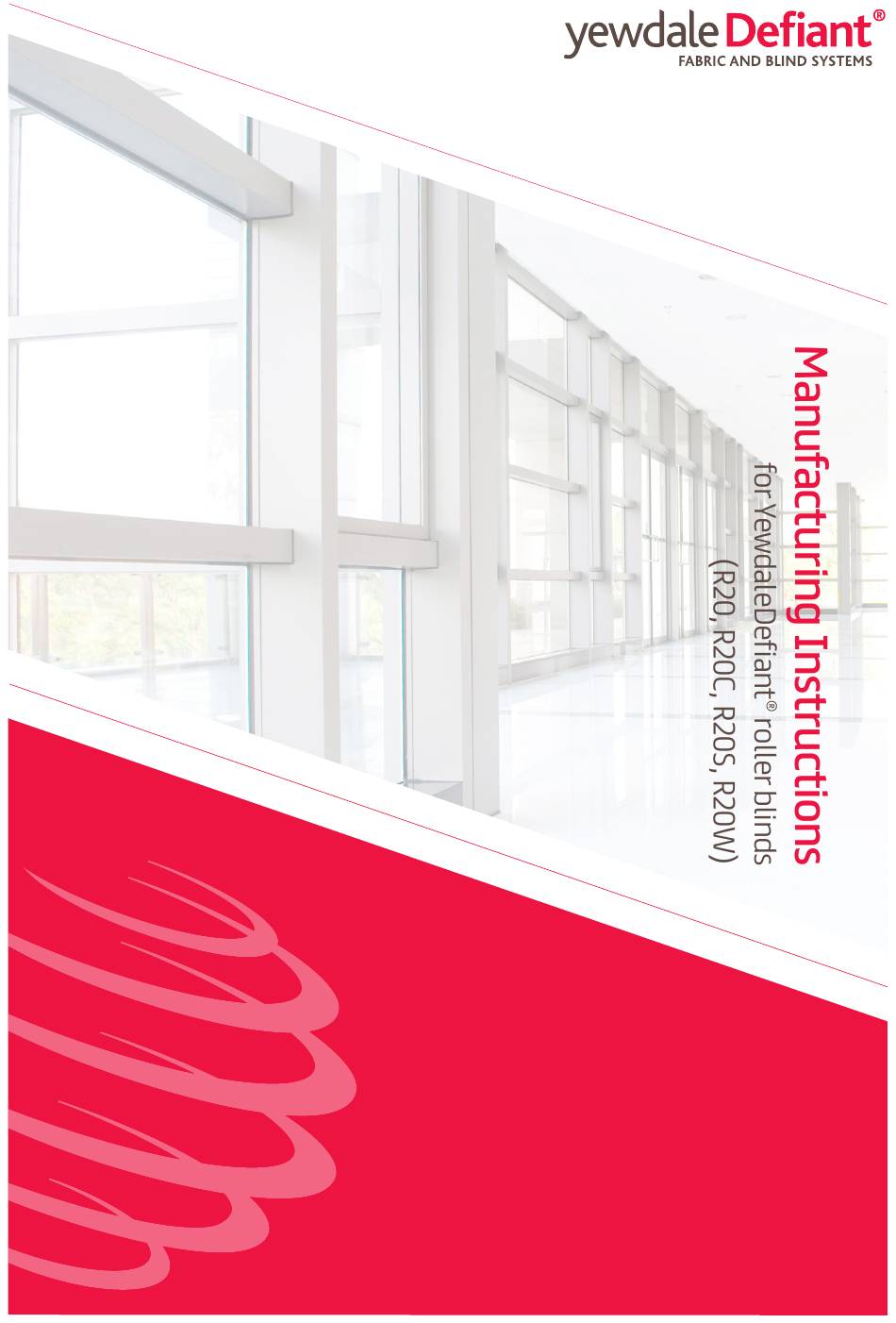

- Page 1 Manufacturing Instructions for YewdaleDefiant roller blinds ® (R20, R20C, R20S, R20W) yewdale.co.uk Part no: 1012...
-
Page 2: Safety Instructions
Manufacturing Instructions YewdaleDefiant roller blinds (R20, R20C, R20S, R20W) ® Safety Instructions: Loops in pull cords, chains, tapes and inner cords that operate the product can cause strangulation To avoid strangulation and entanglement, keep cords out of the reach of young children. - Page 3 R20 Sidewinder control: 926325W Back bar top fix bracket 938031W Aluminium back bar 926325W Back bar top fix bracket OPTIONAL 933010W Back bar screw 933019W 933016W Bracket cover 32mm Control bracket 933029W 32mm (back bar) Bracket cover 40mm 933026W 933039W...
- Page 4 Manufacturing Instructions YewdaleDefiant roller blinds (R20, R20C, R20S, R20W) ® R20 Sidewinder control: Checking the size of the blind required to be manufactured, select the appropriate size barrel using the chart below. Width 25½ 33¼ 41¼ 49¼ 64¾ 72¾ 80½...
- Page 5 To attach the tear drop bottom bar, cut the 10mm plastic strip (962499) and attach in line with the base of the fabric on the back, using the double sided adhesive tape on the strip. Attach one staple at each end and one in the middle of the fabric through the plastic strip using a heavy-duty stapler and suitable staples, ensure staples are completely compressed.
- Page 6 Manufacturing Instructions YewdaleDefiant roller blinds (R20, R20C, R20S, R20W) ® R20C Crank control: 926325W Back bar top fix bracket 938031W Aluminium back bar 926325W Back bar top fix bracket OPTIONAL 933039W Bracket cover 45mm 933010W 933401 Back bar screw Crank support set...
- Page 7 R20C Crank control: Complete the R20 Slipstream process missing out points 5 and 6. NB. The R20C is only available on the 45mm barrel (Part number 938027) then: Insert end plug with square pin (Part number 911769) into the 45mm barrel...
- Page 8 Manufacturing Instructions YewdaleDefiant roller blinds (R20, R20C, R20S, R20W) ® R20S Spring control: 926325W Back bar top fix bracket 938031W Aluminium back bar 926325W Back bar top fix bracket OPTIONAL 933010W Back bar screw 941001W Braked Spring Bracket Set (Standard)
- Page 9 R20S Spring control: Selecting the appropriate spring using the chart below: Width 25½ 33¼ 41¼ 49¼ 64¾ 72¾ inches 1050 1250 1450 1650 1850 37¼ Short Medium Long 49¼ 1250 1550 72¾ 1850 84½ 2150 96¼ 2450 Insert the spring into the right-hand end of the barrel. If using a limit stop, insert this in the left-hand end of the barrel.
- Page 10 Manufacturing Instructions YewdaleDefiant roller blinds (R20, R20C, R20S, R20W) ® R20W Light Duty Crank control: 926325W Back bar top fix bracket 938031W Aluminium back bar 926325W Back bar top fix bracket OPTIONAL 933010W Back bar screw 942004 933026W Crank and...
- Page 11 R20W Light Duty Crank control: Ensuring the barrel (Part number 938025) is free from damage, cut this to the desired blind width minus 38mm. Ensuring the bottom bar (Part number 938311W/B/S) is free from damage, cut this to the desired blind width minus 38mm. Selecting the required fabric, cut the width to blind width minus 38mm and the drop to blind drop plus 250mm.
- Page 12 Yewdale, Enterprise Way, Wickford, Essex SS11 8DH Call +44 (0)1268 570900 +44 (0)1268 732509 Email enquires@yewdale.co.uk Visit yewdale.co.uk For more information on all Yewdale products, please call the sales department. ® ® ® ® ® A comprehensive range The only fail-safe range of The industry’s preferred A dedicated range of privacy A concise approach to...
