Summary of Contents for YewdaleDefiant F30

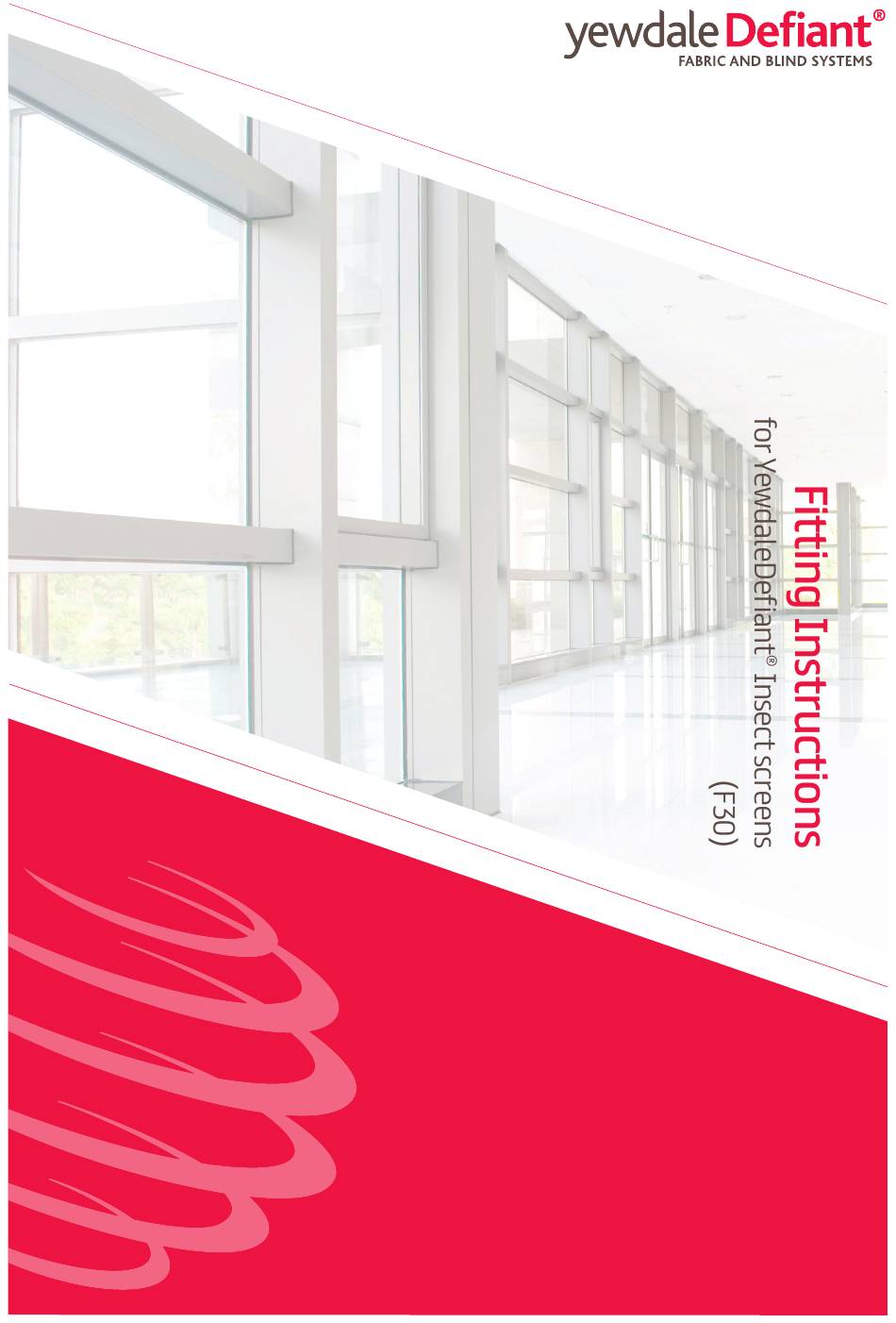

- Page 1 Fitting Instructions for YewdaleDefiant Insect screens ® (F30) yewdale.co.uk Part no: 979...
- Page 2 Fitting Instructions YewdaleDefiant Insect screens (F30) ® Safety Instructions: Loops in pull cords, chains, tapes and inner cords that operate the product can cause strangulation To avoid strangulation and entanglement, keep cords out of the reach of young children. Cords may become wrapped around a child’s neck Move beds, cots and furniture away from window covering cords Do not tie cords together.
- Page 3 Call: +44 (0)1268 570900 Fax: +44 (0)1268 732509 Email: enquiries@yewdale.co.uk Visit: www.yewdale.co.uk...
- Page 4 Fitting Instructions YewdaleDefiant Insect screens (F30) ® F30 Chain Control: YewdaleDefiant fitting instructions Part no: 979 ®...
- Page 5 F30 Chain Control – Top Fix: The cassette is pre-assembled and does not need to be opened. Check the positioning of the cassette. (If intermediate brackets are supplied, for wider units, fix cassette to the recess at equal space using the appropriate screws/ plugs.
- Page 6 Fitting Instructions YewdaleDefiant Insect screens (F30) ® F30 Chain Control – Face Fix: The cassette is pre-assembled and does not need to be opened. Slide the brackets onto the cassette, check the positioning, and fix the brackets using the appropriate screws/plugs.
- Page 7 Operating Instructions: The cassette should be pre-tensioned at the factory. If it is necessary to increase/decrease tension, do so as follows:. Remove the fixing screws from the left-hand end cap and carefully prise the end cap out of the cassette until it is possible to rotate it. Carefully rotate the end cap clockwise to increase the tension or anti- clockwise to decrease the tension.
- Page 8 Yewdale, Enterprise Way, Wickford, Essex SS11 8DH Call +44 (0)1268 570900 +44 (0)1268 732509 Email enquires@yewdale.co.uk Visit yewdale.co.uk For more information on all Yewdale products, please call the sales department. ® ® ® ® ® A comprehensive range The only fail-safe range of The industry’s preferred A dedicated range of privacy A concise approach to...
