1

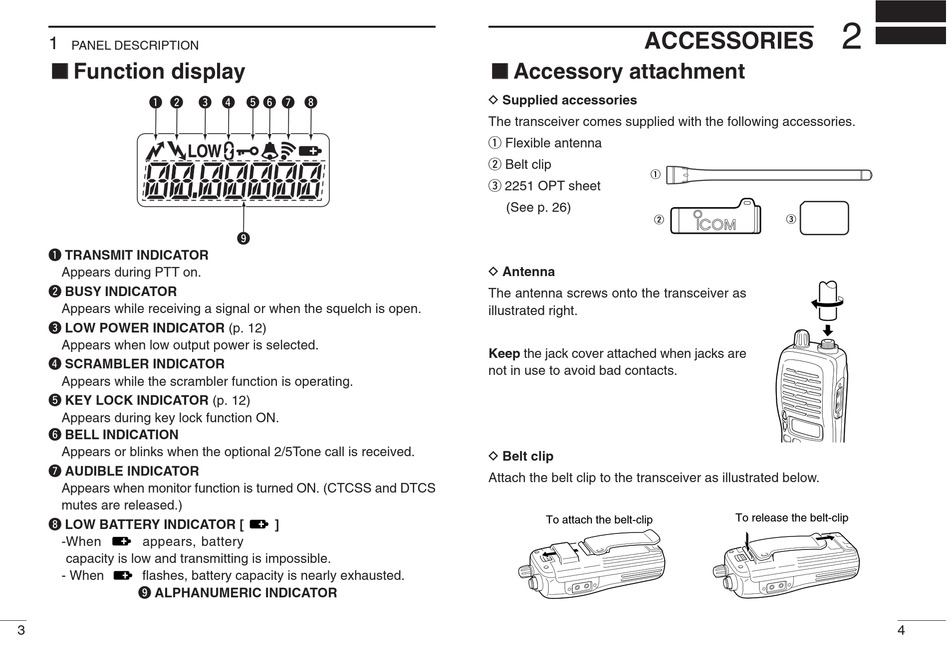

PANEL DESCRIPTION

' ' Function display

q w
q TRANSMIT INDICATOR
Appears during PTT on.
w BUSY INDICATOR
Appears while receiving a signal or when the squelch is open.
e LOW POWER INDICATOR (p. 12)
Appears when low output power is selected.
r SCRAMBLER INDICATOR
Appears while the scrambler function is operating.
t KEY LOCK INDICATOR (p. 12)
Appears during key lock function ON.
y BELL INDICATION
Appears or blinks when the optional 2/5Tone call is received.
u AUDIBLE INDICATOR
Appears when monitor function is turned ON. (CTCSS and DTCS
mutes are released.)
i LOW BATTERY INDICATOR [
-When appears, battery
capacity is low and transmitting is impossible.
- When flashes, battery capacity is nearly exhausted.
o ALPHANUMERIC INDICATOR
3
e r t y u i
o
]

ACCESSORIES

' ' Accessory attachment
D Supplied accessories
The transceiver comes supplied with the following accessories.
q Flexible antenna
w Belt clip
q
e 2251 OPT sheet
(See p. 26)
w
D Antenna
The antenna screws onto the transceiver as
illustrated right.
Keep the jack cover attached when jacks are
not in use to avoid bad contacts.
D Belt clip
Attach the belt clip to the transceiver as illustrated below.
To attach the belt-clip
2
e
To release the belt-clip
4
