4
CONNECTION AND MAINTENANCE

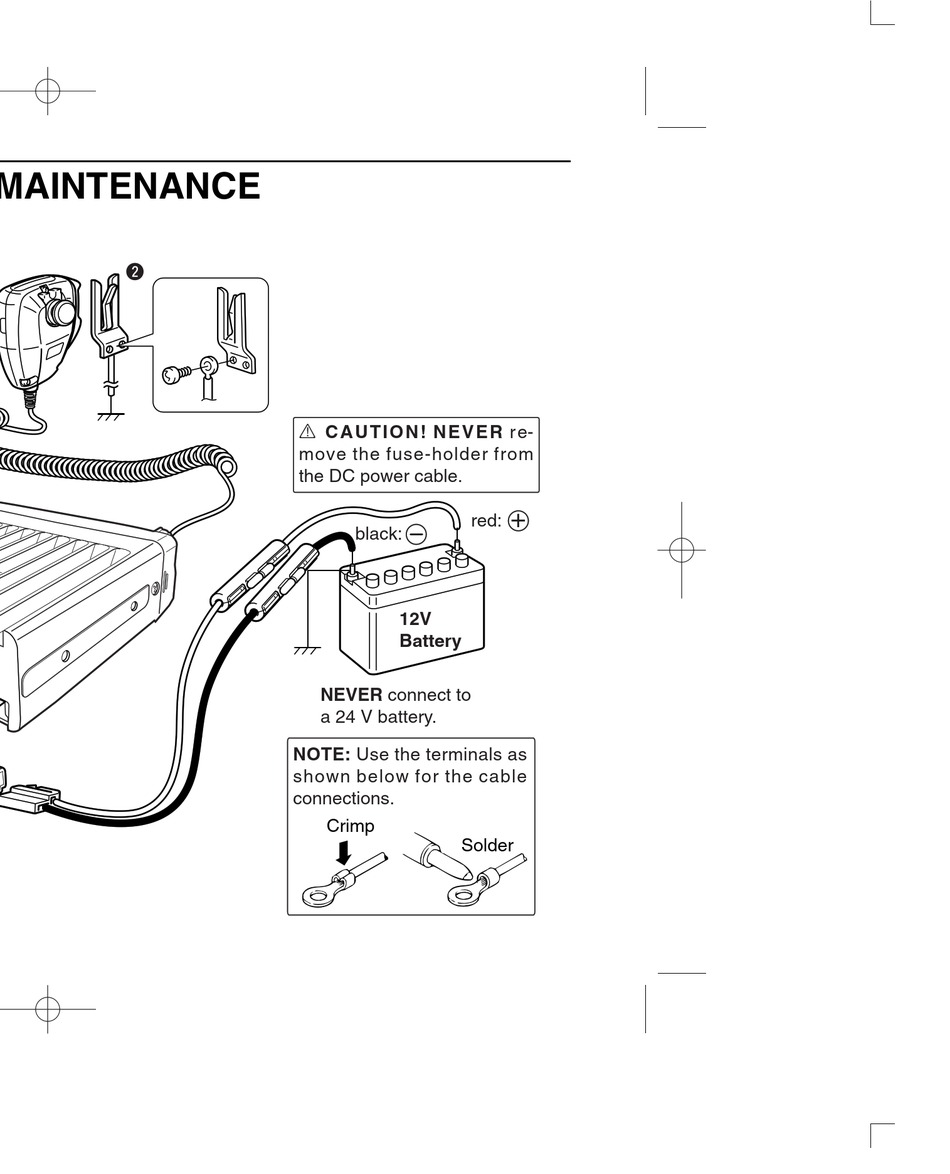

I Rear panel and connection
Antenna
To the antenna
connector
13
Optional speaker
(SP-22)
q
t
Optional cable
(OPC-617)
r
w
e
R C A U T I O N ! N E V E R r e-
move the fuse-holder from
the DC power cable.
+
red:
black:
12V
Battery
NEVER connect to
a 24 V battery.
NOTE: Use the terminals as
shown below for the cable
connections.
Crimp
Solder
