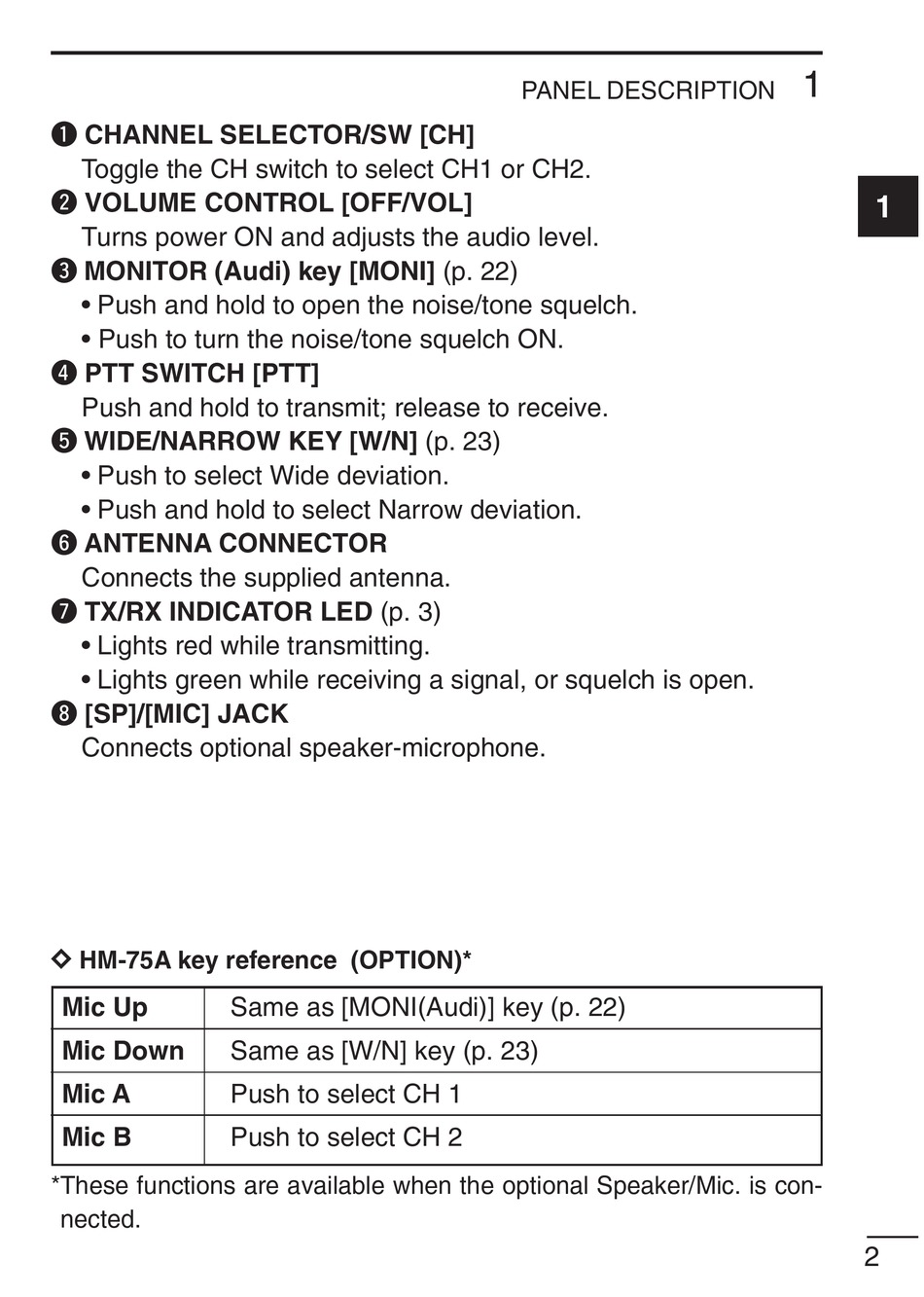

q CHANNEL SELECTOR/SW [CH]
Toggle the CH switch to select CH1 or CH2.
w VOLUME CONTROL [OFF/VOL]
Turns power ON and adjusts the audio level.
e MONITOR (Audi) key [MONI] (p. 22)
• Push and hold to open the noise/tone squelch.
• Push to turn the noise/tone squelch ON.
r PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
t WIDE/NARROW KEY [W/N] (p. 23)
• Push to select Wide deviation.
• Push and hold to select Narrow deviation.
y ANTENNA CONNECTOR
Connects the supplied antenna.
u TX/RX INDICATOR LED (p. 3)
• Lights red while transmitting.
• Lights green while receiving a signal, or squelch is open.
i [SP]/[MIC] JACK
Connects optional speaker-microphone.
D D
HM-75A key reference (OPTION)*
Mic Up
Mic Down
Mic A
Mic B
*These functions are available when the optional Speaker/Mic. is con-
nected.
Same as [MONI(Audi)] key (p. 22)
Same as [W/N] key (p. 23)
Push to select CH 1
Push to select CH 2
PANEL DESCRIPTION
