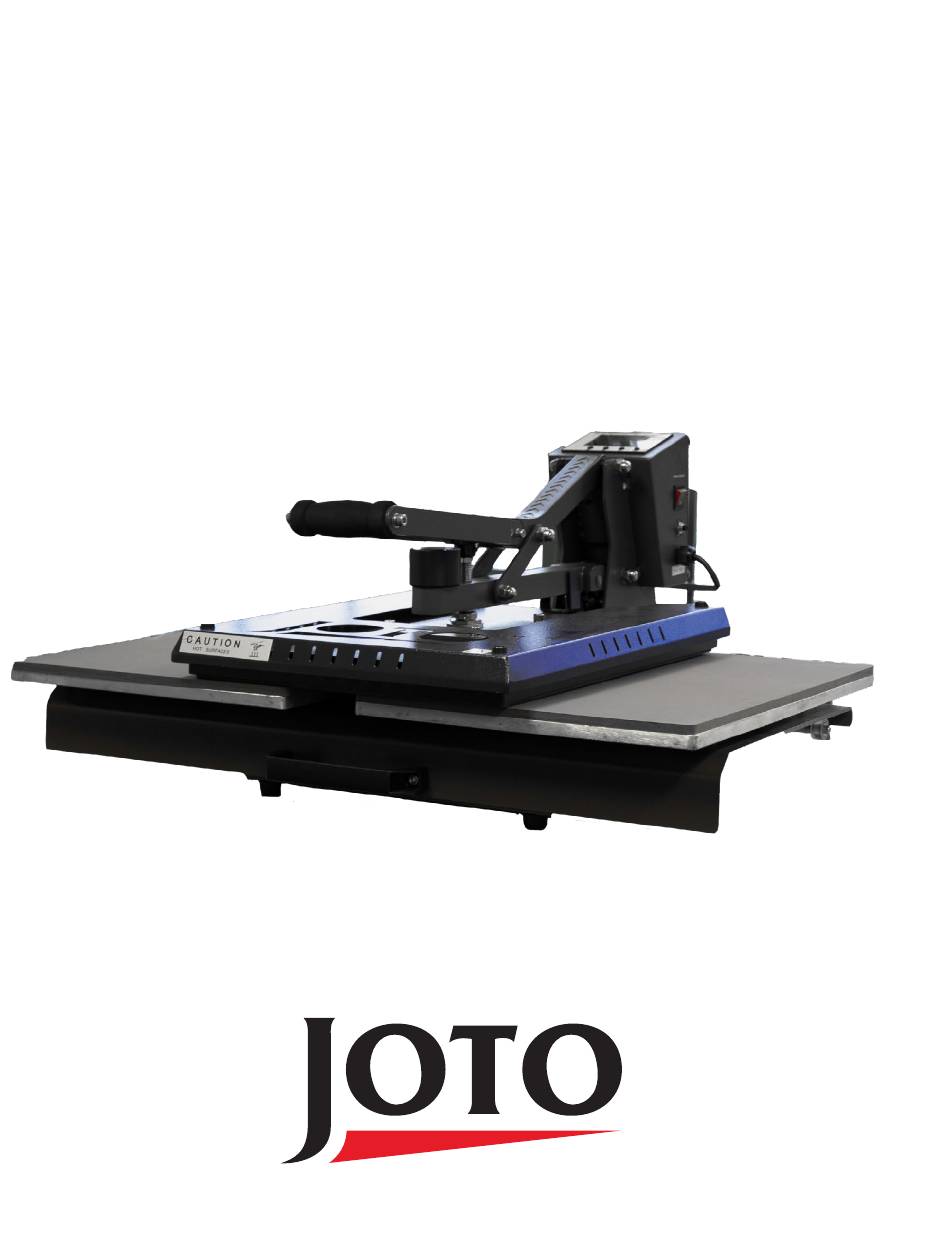

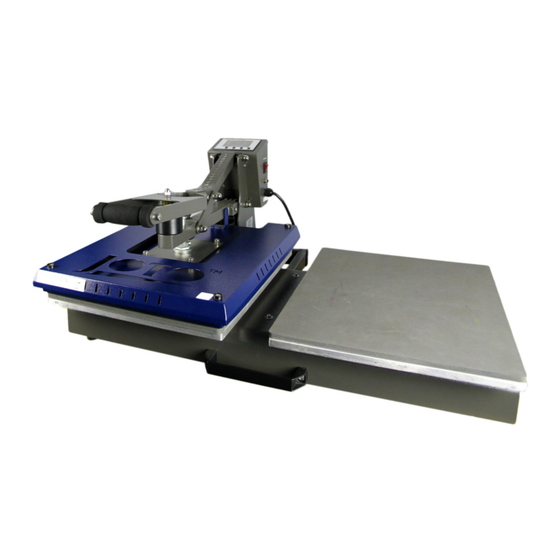

- Page 1 Joto Manual Shuttle Press Manual Model No.: E-HP-JAR-DS-1620 OPERATOR’ S MANUAL Bringing images to life...
- Page 2 Safety Instructions For Use By Qualified Personnel Only When using your Heat Press, basic precautions should always be followed, including the following: Read all instructions. Use heat press only for its intended use. Keep the heat press dry at all times. Do not get the heat press wet to reduce the risk of electric shock.
-
Page 3: Table Of Contents
Reproduction of this manual requires written consent from Joto. Errors and amendments of technical details excepted, all rights reserved. Joto is not liable for any direct or indirect damages caused by the use of this product. -
Page 4: Setting Up Your Heat Press
Setting Up Your Heat Press Turning On Your Heat Press Turn the Main Power Switch on. The Main Power Switch is at the side of the heat press. Current temperature, set temperature, current time, set time will display. How to Read The Display 1.) Left side PV value = Current Temperature 2.) Right side PV value = Current Time 3.) Left side SV value = Set Press Temperature... -
Page 5: Operating Instructions
Operating Instructions Pressing a T-shirt Turn on the Main Power Switch Set the appropriate Press Temperature, and Time as per your transfer vinyl or sublimation instructions. Place your t-shirt on the heat press. Set the pressure by adjusting the air pressure adjust knob. Wait until current temperature is the same as the set temperature. -
Page 6: Heat Press Overview
Heat Press Overview Technical Specs Model No.: E-HP-JAR-DS-1620 Machine Type: Manual Shuttle Press Machine Size: 34.5” x 29.5” x 14” (87.63cm x 47.93cm x 35.56cm) Heat Press platen Size: 16” X 20” Maximium Thickness: 1.20” (30mm) Controller GY-06 Digital Controller Voltage: 120V 14amp Power:... -
Page 7: Maintenance
Maintenance General Maintenance Please switch off the machine and unplug the power cord when the machine is not in use. To protect the heat platen, do not allow any hard surface objects to be in direct con- tact with the platen. This includes zippers, buttons, metal sublimation items. When pressing these items, place a protective sheet between the platen and the objects. The heat-releasing fan will automatically starts when the temperature of heat platen reaches 80 degree C (176 degree F). - Page 8 Heat Pressing Guide (continued) Sublimation Items Sublimatable Ceramic Tiles Unisub Metals Temperature: 400F Temperature: 400F Time: 360-420 seconds Time: 60 seconds Peel: Hot Peel: Hot Method: Substrate face down Method: Substrate face up Image face up Image face down Porcelain Ornaments Unisub Plastics Temperature: 400F Temperature: 400F...
-
Page 9: Circuit Diagram
Circuit Diagram... - Page 10 Expanded Diagram...
- Page 11 Expanded Diagram 1.) Flat Pipe on Under frame 25.) Handle Spindle 51.) Connection Strap 2.) Pillar Plate Left and Right 26.) Handle Arched Plate 52.) Limit Switch 3.) Tapered Machine Leg 27.) Handle 53.) Controller Panel 4.) Square Block 28.) Electromagnet 54.) Right Plate of Controller Box 5.) GB Hexagon Type 29.) Alum.
- Page 12 Bringing images to life www.jotoimagingsupplies.com Tel: 1-800-565-5686 Fax: 1-800-565-5622 Coquitlam, BC | Mississauga, ON Blaine, WA | Las Vegas, NV |Nashville TN | Akron, OH...
