- Page 1 Joto Digital Mug Press Manual - Single Station includes 7 Elements Model No.: E-HP-JMP-1S7E OPERATOR’ S MANUAL Single Station Includes 7 elements...
-
Page 2: Safety
Do not use any other power cords other than the one provided with this machine. Doing so may result in a fire hazard. If you need a replacement cord, please call Joto at 1-800-565-5686 to request one. -
Page 3: Table Of Contents
Congratulations on your purchase of a Joto Single Station Mug Press with 7 elements! In order to work professionally with the machine and start production, please make sure you read this manual carefully. Reproduction of this manual requires written consent from Joto. Errors and amendments of technical details excepted, all rights reserved. -
Page 4: Mug Press Overview

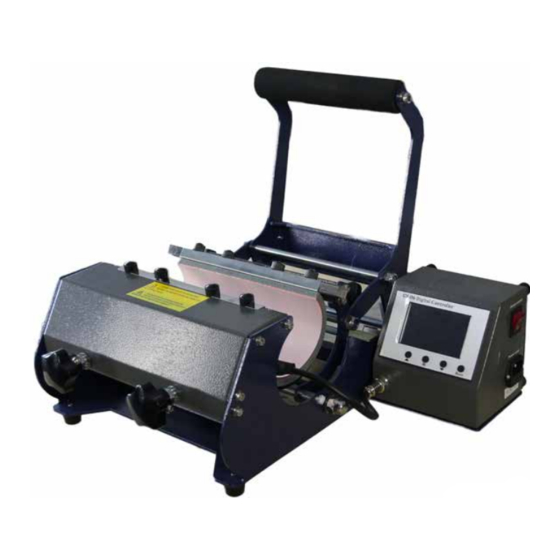

Mug Press Overview Technical Specs Model No.: E-HP-JMP-1S7E Machine Type: Single Station Mug Press with 7 Elements Machine Size: 23.62” x 16.85” x 11.69” (604 x 428 x 297mm) Printable Articles Max Size: 6” x 4” Mug Heater Size: 11oz/15oz Mug, Dia. 6-7.5cm for 6oz, 9oz, 10oz etc Mug, Dia. - Page 5 Mug Press Overview TOP VIEW FRONT VIEW LEFT VIEW RIGHT VIEW www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON...
-
Page 6: Machine Parts Diagram
Machine Parts Diagram Pressure Adjustment Knob Interchangable Element TOP VIEW Limited Baffle Valve Switch Digital Controller Handle Bar Grip Power ON/ OFF Switch Mug Heater Baffle SIDE VIEW www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 7: Setting Up Your Mug Press
Setting Up Your Mug Press Turning On Your Mug Press Turn the Main Power Switch ON. The Main Power Switch is at the right/Left side of the heat press. Current temperature will display. Usually has the value “LO”, indicating low temperature. How to Read The Display 1.) Left side PV value = Current Temperature 2.) Right side PV value = Current Time... -
Page 8: Elements Overview
Elements Overview Tumbler Element 6oz-10oz Mug Element 12oz Latte Element SKU: X-HP-JMP61-01 SKU: X-HP-JMP61-02 SKU: X-HP-JMP61-03 ● 12oz Enamel Cup ● 20oz SS tumbler with Lid ● 12oz Latte ● 10oz Bone China Mug with and Straw ● 500ml SS Flask Bottle Gold Rim ●... -
Page 9: Operating Instructions
Operating Process Pressing a Drinkware 1.) Turn OFF the Power Switch. 2.) Change to the correct element (see Page 8), and turn ON the Power Switch. 2.) Set the appropriate Press Temperature, and Time. 3.) Tape your imaged transfer/sublimation paper to your mug with heat tape. 4.) Set the pressure. -
Page 10: Replacing The Mug Element
Replacing The Mug Element Replacing your Mug Element 1.) Ensure the power switch is OFF. 2.) Unplug the mug press if it is still plugged in. 3.) Detach the mug element cord from the mug press. Unscrew the ring that holds the cord in place before detaching. -
Page 11: Joto Sublimation Guide
If your mug press stops working, please contact Joto at 1-800-565-5686 so we can help you troubleshoot. www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 12: Expanded View
Expanded Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... - Page 13 Expanded Diagram Serial No. Part Name Serial No. Part Name Base frame Electrical Case Iron bar GB-HEXAGON-TYPE21-M6X16- 16-N Limited rod GB-HEXAGON-TYPE21-M6X16- 16-N Semicircle pressure frame GB-HEXAGON-TYPE9-M10-N Handle frame Magnetic switch Handle frame Magnetic switch The middle pin Handle cover The handle bar Installation panel Fixed stay The handle...
-
Page 14: Circuit Diagram
Circuit Diagram (GN) Thermocouple Relay count down 7.5V0 7.5V 14 13 12 11 : Power Switch FU:Fuse T: Transformer : Heating Pipe SJ: Digital Controller R1:Relay www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 15: Warranty
HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO THE FOLLOWING: a. JOTO will repair or replace at its option, free of charge, any product, component of its products, and any component it sells separately which is installed in JOTO’s heat presses, within twelve months and six months for the heating element after shipment by same. -
Page 16: Contact Information
www.jotoimagingsupplies.com Tel: 1-800-565-5686 Fax: 1-800-565-5622 Coquitlam, BC | Brampton, ON Blaine, WA | Las Vegas, NV |Antioch TN...
