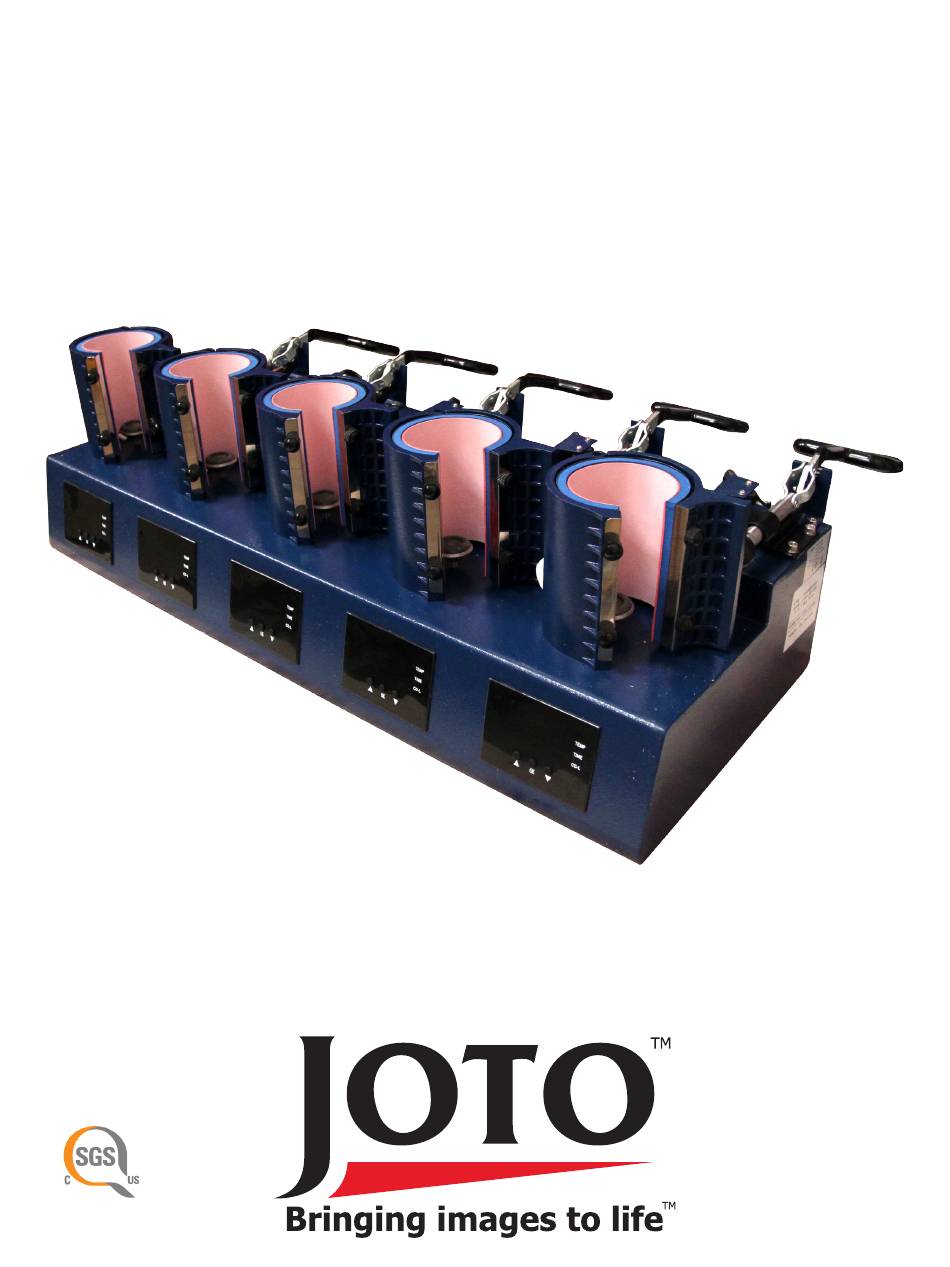

- Page 1 Joto Digital Mug Press Manual - 5 Stations Model No.: E-HP-JMP-51N OPERATOR’ S MANUAL 5 Station Includes 5 elements This product is SGS Electrical Safety Certified...
-
Page 2: Safety
Do not use any other power cords other than the one provided with this machine. Doing so may result in a fire hazard. If you need a replacement cord, please call Joto at 1-800-565-5686 to request one. -
Page 3: Table Of Contents
This product is SGS Electrical Safety Certified Congratulations on your purchase of a Joto 5 Stations Mug Press! In order to work professionally with the machine and start production, please make sure you read this manual carefully. Reproduction of this manual requires written consent from Joto. Errors and amendments of technical details excepted, all rights reserved. -
Page 4: Mug Press Overview
Mug Press Overview Technical Specs Model No.: E-HP-JMP-51N Machine Type: 5 Stations Mug Press (5 Individual Digital Temps & 5 Timers) Machine Size: 32.28” x 14.37” x 11.22” (820 x 365 x 285mm) Printable Articles Max Size: φ3.93” x 4.72” (φ100 x 120mm) Mug Heater Size: Dia.7.5-9.0cm for 11oz,15oz etc Mug... - Page 5 Mug Press Overview TOP VIEW FRONT VIEW LEFT VIEW RIGHT VIEW www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON...
-
Page 6: Machine Parts Diagram
Machine Parts Diagram Height Adjustment Power Limit Switch Cords Handle Bar Grip Pressure Adjustment Knob Mug Element Digital Controller Individual Power Switch www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 7: Setting Up Your Mug Press
Setting Up Your Mug Press 1.) Height Adjustment Turning On Your Mug Press 1.) First adjust height inside element for your mug 2.) Turn Individual Mug Elements on as needed. Note - To conserve power and to prolong mug element life, only turn on the elements you need to use. -
Page 8: Operating Instructions
Operating Process Pressing a Mug 1.) Adjust height inside element for drinkware. 2.) Turn ON the individual power switches for the mug elements you wish to use. 3.) Set the appropriate Press Temperature, and Time. 4.) Tape your imaged transfer/sublimation paper to your mug with heat tape. 5.) Set the pressure. -
Page 9: Replacing The Mug Element
Replacing The Mug Element Replacing your Mug Element 1.) Ensure the individual power switches are OFF. 2.) Unplug the mug press if it is still plugged in. 3.) Detach the mug element cord from the mug press. Unscrew the ring that holds the cord in place before detaching. -
Page 10: Joto Sublimation Guide
400˚F (200˚C). Setting the press temperature to above 400˚F (200˚C) will burn out your mug element and may cause a fire hazard. If your mug press stops working, please contact Joto at 1-800-565-5686 so we can help you troubleshoot. -
Page 11: Troubleshooting
Troubleshooting Printing Process A. The color is a little bit light: The temperature is too low, the pressure is uneven, or the time is too short. B. The picture is vague: The printing time is long, causing the spread of ink. C. -
Page 12: Expanded View
Expanded Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... - Page 13 Expanded Diagram Serial Part Name Serial Part Name GY-04 Digital Controller Round head screw M3X10 Guide Pin 1 Cup head hexagon screw M6X20 Transformer Screw with high temperature resistant plastic cover - M5X12 Cup head hexagon screw Cup head hexagon screw M6X20 M6X20 Power Switch...
-
Page 14: Circuit Diagram
Circuit Diagram VI.C ircuit Diagram K0-K5: PowerS witchF U: Fuse 15A/20 R1-R5: RelayB oard (4A) EH1-EH2: MugH eating Element A-B: Thermocouple (Insideo ft he mugh eating element) SJ:G Y-04 DigitalC ontroller T1-T5: TransformerK 6-K10: LimitS witch www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 15: Warranty
HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO THE FOLLOWING: a. JOTO will repair or replace at its option, free of charge, any product, component of its products, and any component it sells separately which is installed in JOTO’s heat presses, within twelve months and six months for the heating element after shipment by same. -
Page 16: Contact Information
www.jotoimagingsupplies.com Tel: 1-800-565-5686 Fax: 1-800-565-5622 Coquitlam, BC | Brampton, ON Blaine, WA | Las Vegas, NV |Antioch TN...
