Joto Digital Mug MugPress Manual-
Single Station Includes 4 Elements
Model No.: E-HP-JMP-1S4E
OPERATOR' S MANUAL
Single Station
Includes 4 elements

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MugPress and is the answer not in the manual?

Questions and answers

Summary of Contents for Joto MugPress

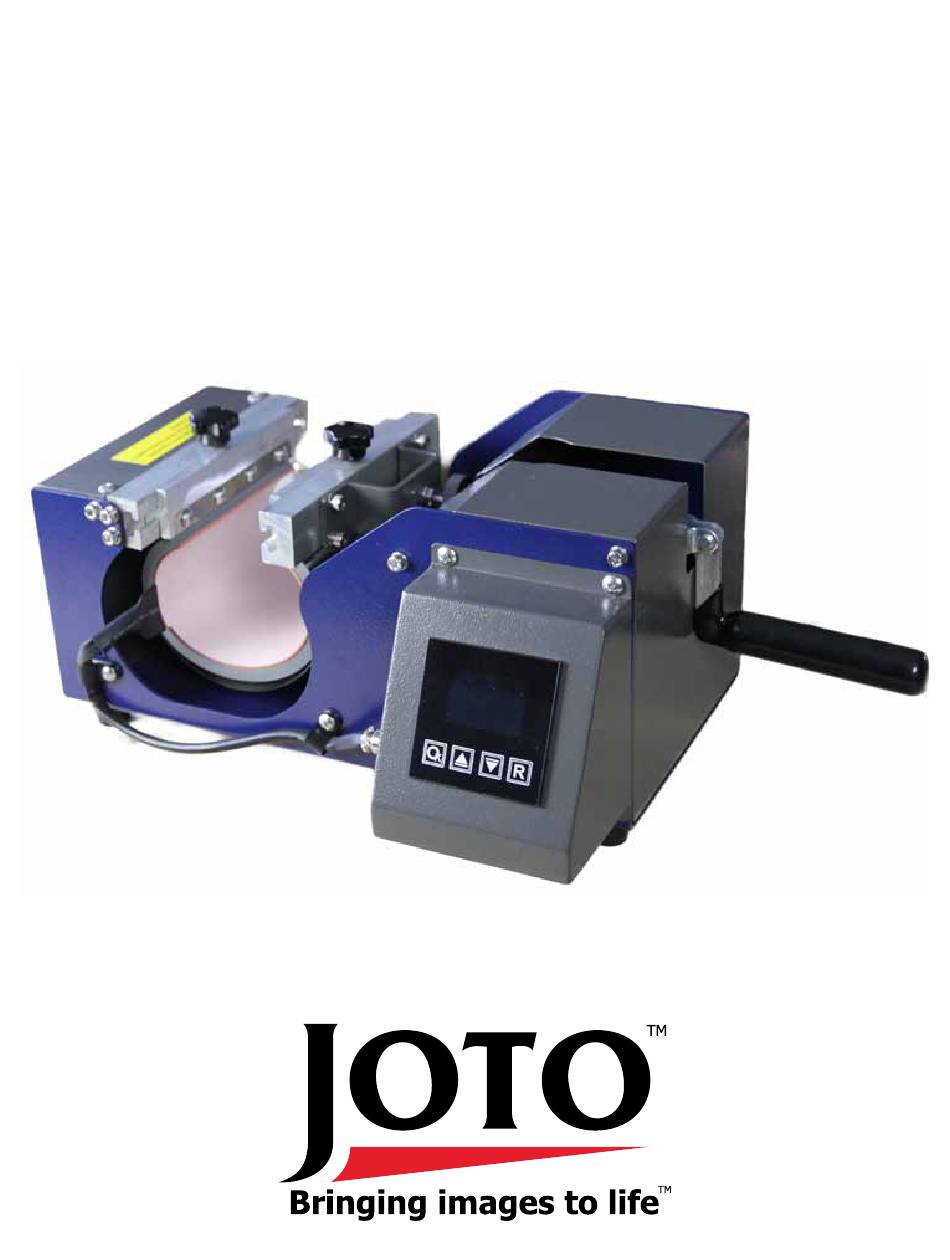

  • Page 1 Joto Digital Mug MugPress Manual- Single Station Includes 4 Elements Model No.: E-HP-JMP-1S4E OPERATOR’ S MANUAL Single Station Includes 4 elements...
  • Page 2: Safety

    Do not use any other power cords other than the one provided with this machine. Doing so may result in a fire hazard. If you need a replacement cord, please call Joto at 1-800-565-5686 to request one.
  • Page 3: Table Of Contents

    Congratulations on your purchase of a Joto Single Station Mug Press with 4 elements! In order to work professionally with the machine and start production, please make sure you read this manual carefully. Reproduction of this manual requires written consent from Joto. Errors and amendments of technical details excepted, all rights reserved.
  • Page 4: Mug Press Overview

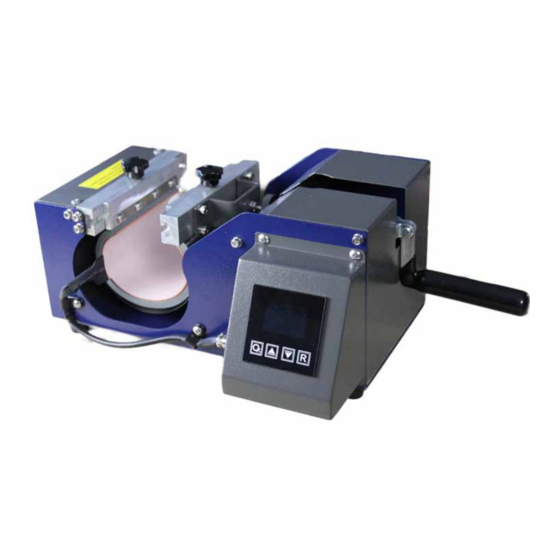

    Mug Press Overview Technical Specs Model No.: E-HP-JMP-1S4E Machine Type: Single Station Mug Press with 4 Elements Machine Size: 18.70” x 13.97” x 12.20” (475 x 355 x 310mm) Printable Articles Max Size: 6” x 4” Mug Heater Size: Dia.6-7.5cm for 11oz, 15oz etc Mug Dia.
  • Page 5 Mug Press Overview FRONT VIEW BACK VIEW TOP VIEW SIDE VIEW www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON...
  • Page 6: Machine Parts Diagram

    Machine Parts Diagram Mug Element Handle Bar Grip Digital Controller SIDE VIEW Pressure Adjustment Knob Power Cord Power ON/ Connection OFF Switch BACK VIEW TOP VIEW www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON...
  • Page 7: Setting Up Your Mug Press

    Setting Up Your Mug Press Turning On Your Mug Press Turn the Main Power Switch on. The Main Power Switch is at the back of the heat press. Current temperature will display. Usually has the value “OFF”, indicating low temperature. How to Read The Display 1.) If a number value shows on this display and no lights are lit in the the middle 3 slots, it is displaying the...
  • Page 8: Elements Overview

    Elements Overview Water Bottle Element 11oz/ 15oz Mug Element ● 17oz Coke Shaped Bottle ● 10oz SS Coffee Mug ● Water Bottle with Bamboo ● Bone China Mug with Gold ● 650ml Aluminium Bottle ● 11oz/ 15oz Mugs with Straw ●...
  • Page 9: Operating Instructions

    Operating Process Pressing a Drinkware 1.) Turn OFF the Power Switch. 2.) Change to the correct element (see Page 8), and turn ON the Power Switch. 2.) Set the appropriate Press Temperature, and Time. 3.) Tape your imaged transfer/sublimation paper to your mug with heat tape. 4.) Set the pressure.
  • Page 10: Replacing The Mug Element

    Replacing The Mug Element Replacing your Mug Element 1.) Ensure the power switch is off 2.) Unplug the mug press if it is still plugged in. 3.) Detach the mug element cord from the mug press. Unscrew the ring that holds the cord in place before detaching.
  • Page 11: Joto Sublimation Guide

    400˚F/ 200˚C. Setting the press temperature to above 400˚F/ 200˚C will burn out your mug element and may cause a fire hazard. If your mug press stops working, please contact Joto at 1-800-565-5686 so we can help you troubleshoot.
  • Page 12: Expanded View

    Expanded Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON...
  • Page 13 Expanded Diagram Serial Part Name Serial Part Name Machine Base External temperature control sheet Power Cord Mirror power cord GB_FASTENER_SCREWS_ Rocker switch HSHCS M5X16-N Frame Circuit breaker 20A Quick clamp mounting plate 1 Transformer M6 hand wheel screw Limit switch fixing plate Z Slider fixture Limit switch Aluminum slider...
  • Page 14: Circuit Diagram

    Circuit Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON...
  • Page 15: Warranty

    Joto of the product or component which JOTO has agreed to supply. All liability of Joto with respect to any product or component shall terminate upon the expiration of the twelve-month period described above.
  • Page 16: Contact Information

    www.jotoimagingsupplies.com Tel: 1-800-565-5686 Fax: 1-800-565-5622 Coquitlam, BC | Brampton, ON Blaine, WA | Las Vegas, NV |Antioch TN...
