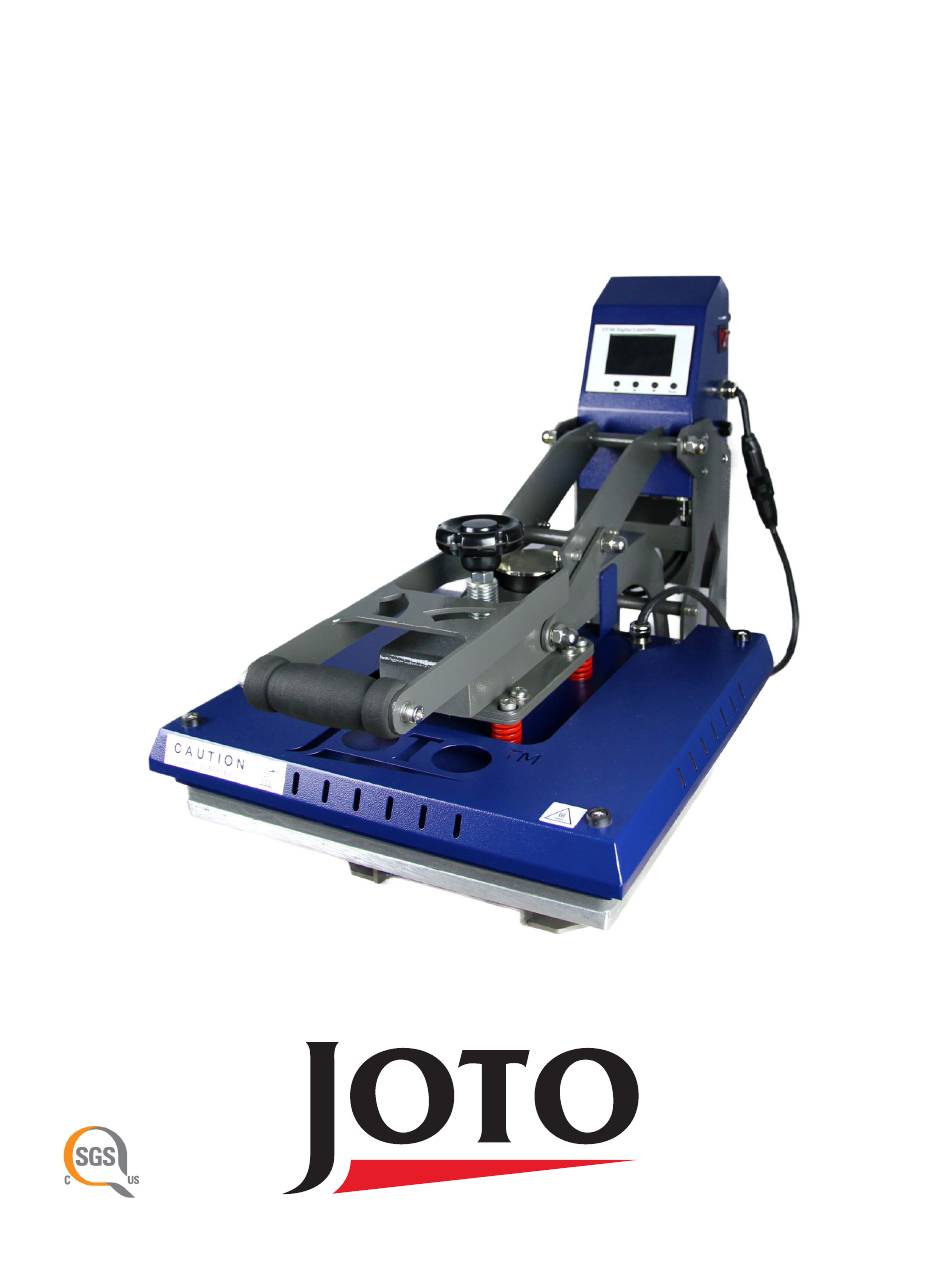

- Page 1 Joto AutoClam Press Manual Model No.: E-HP-JAR-1515 / E-HP-JAR-1620 OPERATOR’ S MANUAL Bringing images to life This product is SGS Electrical Safety Certified...
-
Page 2: Safety
Proceed with caution when using the heat press. To reduce the likelihood of circuit overload, Joto recommends to use a dedicated circuit if possible. Make sure that the cord is safely secured so it cannot be pulled or tripped over. -
Page 3: Table Of Contents
Reproduction of this manual requires written consent from Joto. Errors and amendments of technical details excepted, all rights reserved. Joto is not liable for any direct or indirect damages caused by the use of this product. Table of Contents Safety............2... -
Page 4: Clamshell Heat Press Overview
Heat Press Overview Technical Specs Model No.: E-HP-JAR-1515 E-HP-JAR-1620 Machine Type: Auto Release Clam Shell Auto Release Clam Shell Machine Size: 29.44” x 18.89” x 16.14” 29.44” x 18.89” x 16.14” (748mm x 480mm x 410mm) (748mm x 480mm x410mm) Heat platen Size: 15”... - Page 5 Heat Press Overview TOP VIEW FRONT VIEW LEFT VIEW RIGHT VIEW www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON...
-
Page 6: Machine Parts Diagram
Machine Parts Diagram Electrical Case GY-06 Digital Controller Power Switch Limit Switch Handle Shaft Electromagnetic Suck Plate Pressure Adjust Knob Handle Gear for Exchange Under Plate Emergency Stop Button www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 7: Setting Up Your Heat Press
Setting Up Your Heat Press Turning On Your Heat Press Turn the Main Power Switch on. The Main Power Switch is at the right side of the heat press. Current temperature, set temperature, current time, set time will display. How to Read The Display 1.) Left side PV value = Current Temperature 2.) Right side PV value = Current Time 3.) Left side SV value = Set Press Temperature... -
Page 8: Operating Instructions
Operating Instructions Pressing a T-shirt Turn ON the Main Power Switch. Set the appropriate Press Temperature, and Time as per your transfer vinyl or sublimation instructions. Place your t-shirt on the heat press. Set the pressure. Press the blank shirt to ensure there is adequate pressure before placing transfer materials on top of the shirt. -
Page 9: Maintenance
Note: This heat press should not be set to exceed 400˚F (200˚C). Setting the press temperature to above 400˚F (200˚C) may cause a fire hazard. If your mug press stops working, please contact Joto at 1-800-565-5686 so we can help you troubleshoot. -
Page 10: Heat Pressing Guide
Heat Pressing Guide Transfer Vinyls MultiCut One-4-All MultiCut Premium Temperature: 265˚F Temperature: 310-330˚F Time: 3-5 seconds Time: 45 seconds Peel: Warm (Cotton) Peel: Warm/Cool MultiCut New Flock MultiCut Lustre Temperature: 310-330˚F Temperature: 310-330˚F Time: 15 seconds Time: 15-20 seconds Peel: Warm Peel: Hot to Cold MultiCut Nylon MultiCut Style... - Page 11 Heat Pressing Guide Sublimation Items Sublimatable Ceramic iLumipiX Photo Tiles Panels Temperature: 400˚F Temperature: 400˚F Time: 360-420 seconds Time: 65-150 seconds Peel: Hot Method: Substrate face down Time may varied based on size. Scan the QR code on the left for Image face up instructions or visit our website.
-
Page 12: Expanded View
Expanded Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... - Page 13 Expanded Diagram Serial Part Name Serial Part Name Frame welding plate Aviation Socket Cover Right-Side Plate Of The Handle Left side panel Connection Strap Mold spring Welding Plate Of The Handle Anti-spring U plate Stationary Shaft Of The Handle Gas spring connecting plate Annular Gear Gaske Snap ring shaft Welding Plate Of The Machine Arm...
-
Page 14: Circuit Diagram
Circuit Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 15: Warranty
HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO THE FOLLOWING: a. JOTO will repair or replace at its option, free of charge, any product, component of its products, and any component it sells separately which is installed in JOTO’s heat presses, within twenty-four months and sixty months for the heating platen after shipment by same. -
Page 16: Contact
Bringing images to life www.jotoimagingsupplies.com Tel: 1-800-565-5686 Fax: 1-800-565-5622 Coquitlam, BC | Brampton, ON Blaine, WA | Las Vegas, NV |Antioch TN...
