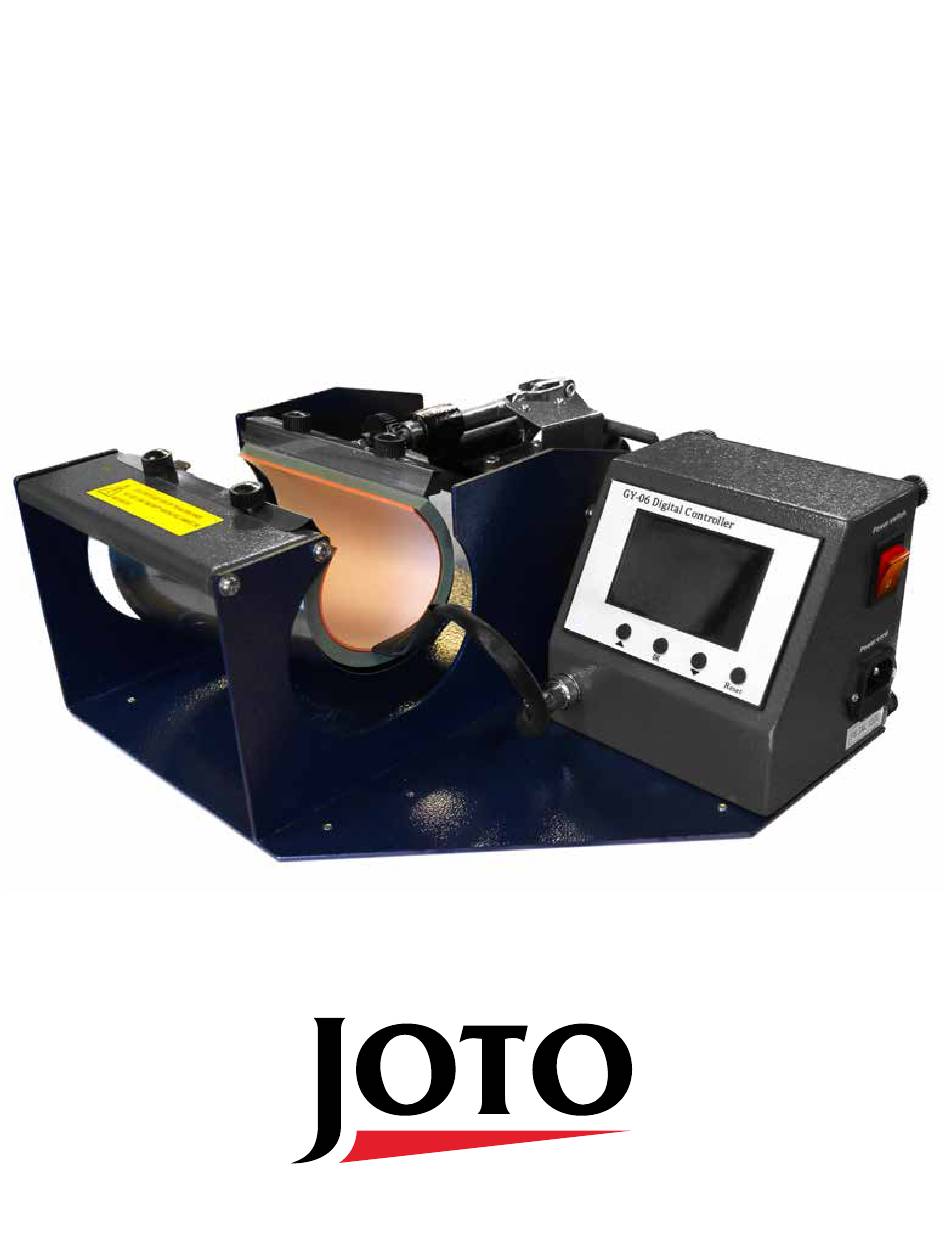

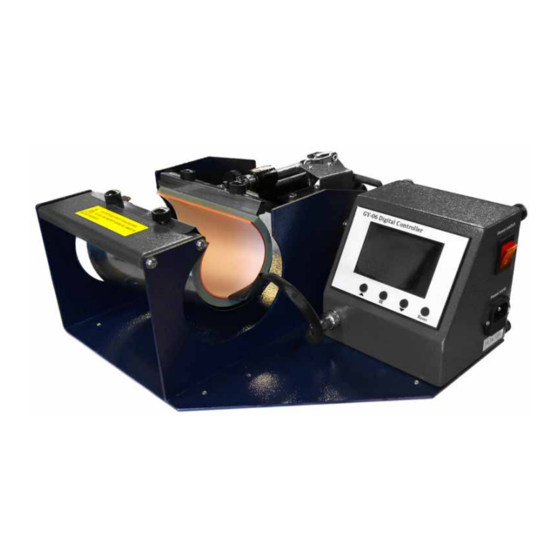

- Page 1 Joto Digital Mug Press Manual - Single Station includes 2 Elements Model No.: E-HP-JMP-1S2E OPERATOR’ S MANUAL Single Station Includes 2 elements Bringing images to life...
-
Page 2: Safety
Do not use any other power cords other than the one provided with this machine. Doing so may result in a fire hazard. If you need a replacement cord, please call Joto at 1800-565-5686 to request one. -
Page 3: Table Of Contents
Reproduction of this manual requires written consent from Joto. Errors and amendments of technical details excepted, all rights reserved. Joto is not liable for any direct or indirect damages caused by the use of this product. Table of Contents Safety............2... -
Page 4: Mug Press Overview
Mug Press Overview Technical Specs Model No.: E-HP-JMP-1S2E Machine Type: Single Station Mug Press with 2 Elements Machine Size: 12.20” x 11.42” x 5.91” (310 x 290 x 150mm) Printable Articles Max Size: φ3.93” x 4.72” (φ100 x120mm) Mug Heater Size: Dia.6-7.5cm for 6oz,9oz,10oz etc Mug... - Page 5 Mug Press Overview TOP VIEW FRONT VIEW LEFT VIEW RIGHT VIEW www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON...
-
Page 6: Machine Parts Diagram
Machine Parts Diagram Pressure Adjustment Limit Switch Handle Bar Grip Knob Digital Controller Mug Element ANGLED VIEW Power ON/ OFF Switch SIDE VIEW www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 7: Setting Up Your Mug Press
Setting Up Your Mug Press Turning On Your Mug Press Turn the Main Power Switch on. The Main Power Switch is at the right side of the heat press. Current temperature, set temperature, current time, set time will display. How to Read The Display 1.) Left side PV value = Current Temperature 2.) Right side PV value = Current Time 3.) Left side SV value = Set Press Temperature... -
Page 8: Elements Overview
Elements Overview Includes with mug press 11oz/ 15oz Mug Element Water Bottle Element SKU: X-HP-JMP-02 SKU: X-HP-JMP-01 ● 17oz Coke Shaped Bottle ● 10oz SS Coffee Mug ● Water Bottle with Bamboo ● Bone China Mug with Gold ● 650ml Aluminium Bottle ●... -
Page 9: Operating Instructions
Operating Process Pressing a Drinkware 1.) Turn OFF the Power Switch. 2.) Change to to the correct element (see Page 8), and turn ON the Power Switch. 2.) Set the appropriate Press Temperature, and Time. 3.) Tape your imaged transfer/sublimation paper to your mug with heat tape. 4.) Set the pressure. -
Page 10: Replacing The Mug Element
Replacing The Mug Element Replacing your Mug Element 1.) Ensure the power switch is OFF. 2.) Unplug the mug press if it is still plugged in. 3.) Detach the mug element cord from the mug press. Unscrew the ring that holds the cord in place before detaching. -
Page 11: Joto Sublimation Guide
400˚F/ 200˚C. Setting the press temperature to above 400˚F/ 200˚C will burn out your mug element and may cause a fire hazard. If your mug press stops working, please contact Joto at 1-800-565-5686 so we can help you troubleshoot. -
Page 12: Expanded View
Expanded Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... - Page 13 Expanded Diagram Serial No. Part Name Serial No. Part Name Machine Base Limit Switch Cover Screw Screw Rubber Foot Limit Switch Female Socket Power Cord Connect Board Fuse Screw Power Switch Adapter Plate Solid State Relay Handle Bar Grip Electrical Case Cover Hex Head Screw Screw Heater Fixing Connector...
-
Page 14: Circuit Diagram
Circuit Diagram : Power Switch FU:Fuse T: Transformer : Heating Pipe SJ: Digital Controller R1:Relay www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 15: Warranty
HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO THE FOLLOWING: a. JOTO will repair or replace at its option, free of charge, any product, component of its products, and any component it sells separately which is installed in JOTO’s heat presses, within twelve months and six months for the heating element after shipment by same. -
Page 16: Contact Information
Bringing images to life www.jotoimagingsupplies.com Tel: 1-800-565-5686 Fax: 1-800-565-5622 Coquitlam, BC | Brampton, ON Blaine, WA | Las Vegas, NV |Antioch TN...
