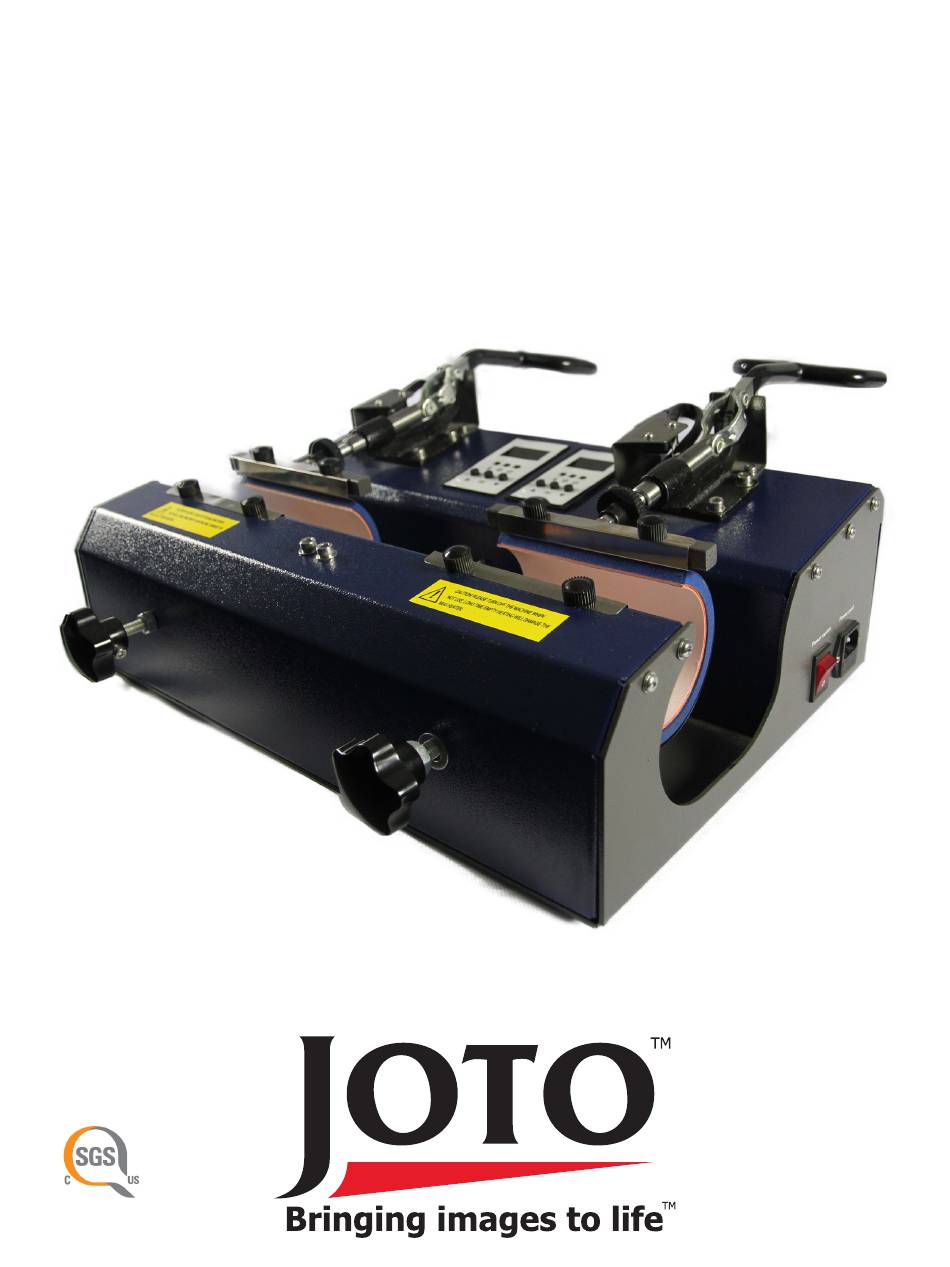

- Page 1 Joto Digital Mug Press Manual - Dual Station includes 5 Elements Model No.: E-HP-JMP-2S5E OPERATOR’ S MANUAL Dual Station Includes 5 elements This product is SGS Electrical Safety Certified...
-
Page 2: Safety
Do not use any other power cords other than the one provided with this machine. Doing so may result in a fire hazard. If you need a replacement cord, please call Joto at 1-800-565-5686 to request one. -
Page 3: Table Of Contents
This product is SGS Certified Congratulations on your purchase of a Joto Dual Station Mug Press with 2 elements! In order to work professionally with the machine and start production, please make sure you read this manual carefully. Reproduction of this manual requires written consent from Joto. Errors and amendments of technical details excepted, all rights reserved. -
Page 4: Mug Press Overview
Mug Press Overview Technical Specs Model No.: E-HP-JMP-2S5E Machine Type: Dual Station Mug Press includes 5 elements Machine Size: 18.42” x 15.47” x 10.51” (468 x 393 x 267mm) Printable Articles Max Size: 6” x 4” Mug Heater Size: 30x235mm for 6oz,9oz,10oz etc Mug... - Page 5 Mug Press Overview TOP VIEW FRONT VIEW SIDE VIEW www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON...
-
Page 6: Machine Parts Diagram
Machine Parts Diagram Handle Bar Grip Digital Limit Switch Controller Pressure Adjustment Knob Mug Heater TOP VIEW Power Switch SIDE VIEW www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 7: Setting Up Your Mug Press
Setting Up Your Mug Press Turning On Your Mug Press Turn the Main Power Switch ON. The Main Power Switch is at the right/Left side of the heat press. Current temperature will display. Usually has the value “LO”, indicating low temperature. How to Read The Display 1.) If a number value shows on this display and no lights are on in either of the middle three slots, mug press is... -
Page 8: Elements Overview
Elements Overview 11oz/ 15oz Mug Element* Water Bottle Element SKU: X-HP-JMP-01 SKU: X-HP-JMP-02 ● 10oz SS Coffee Mug ● 17oz Coke Shaped Bottle ● Bone China Mug with Gold ● Water Bottle with Bamboo ● 11oz/ 15oz Mugs ● 650ml Aluminium Bottle ●... -
Page 9: Operating Instructions
Operating Process Pressing a Drinkware 1.) Turn OFF the Power Switch. 2.) Change to the correct element (see Page 8), and turn ON the Power Switch. 2.) Set the appropriate Press Temperature, and Time. 3.) Tape your imaged transfer/sublimation paper to your mug with heat tape. 4.) Set the pressure. -
Page 10: Replacing The Mug Element
Replacing The Mug Element Replacing your Mug Element 1.) Ensure the power switch is OFF. 2.) Unplug the mug press if it is still plugged in. 3.) Detach the mug element cord from the mug press. Unscrew the ring that holds the cord in place before detaching. -
Page 11: Joto Sublimation Guide
400˚F (200˚C). Setting the press temperature to above 400˚F (200˚C) will burn out your mug element and may cause a fire hazard. If your mug press stops working, please contact Joto at 1-800-565-5686 so we can help you troubleshoot. -
Page 12: Expanded View
Expanded Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... - Page 13 Expanded Diagram Serial No. Part Name Serial No. Part Name Mug holder Handle Reinforcement Plate Middle Rack Reinforcement GB_FASTENER_NUT_SNAB1 Plate M3-N Front Support Plate Torx Screw Star Handle Bolt Quick Clamp Mounting Plate Adjusting Screw Front Strut Metal Tube 12 Electrical installation plate GY6 Digital Controller 1 Mug Press Back Cover...
-
Page 14: Circuit Diagram
Circuit Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 15: Warranty
HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO THE FOLLOWING: a. JOTO will repair or replace at its option, free of charge, any product, component of its products, and any component it sells separately which is installed in JOTO’s heat presses, within twelve months and six months for the heating element after shipment by same. -
Page 16: Contact Information
www.jotoimagingsupplies.com Tel: 1-800-565-5686 Fax: 1-800-565-5622 Coquitlam, BC | Brampton, ON Blaine, WA | Las Vegas, NV |Antioch TN...
