- Page 1 Joto Pneumatic Large Format Heat Press (XSTM-40/ XSTM-48) Model No.: E-HP-JLF-XSTM-40/ E-HP-JLF-XSTM-48 OPERATOR’ S MANUAL...
-
Page 2: Safety
Proceed with caution when using the heat press. To reduce the likelihood of circuit overload, Joto recommends to use a dedicated circuit if possible. Make sure that the cord is safely secured so it cannot be pulled or tripped over. -
Page 3: Table Of Contents
Reproduction of this manual requires written consent from Joto. Errors and amendments of technical details excepted, all rights reserved. Joto is not liable for any direct or indirect damages caused by the use of this product. -
Page 4: Heat Press Overview
Heat Press Overview Technical Specs Model No.: E-HP-JLF-XSTM-40 E-HP-JLF-XSTM-48 Machine Type: Automatic, Double Station Automatic, Double Station Machine Size: (2316 x 1458 x 1550mm) 106.96” x 65.31” x 61.02” (2717 x 1659 x 1550mm) Heat platen Size: 32” x 40” (80 x 100cm) 40”... -
Page 5: Machine Parts Diagram

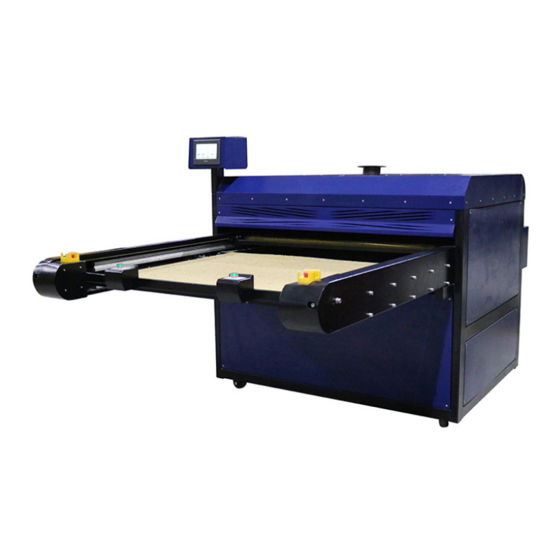

Machine Parts Diagram PLC Digital Touch Screen Up and bottom tray Green Start button Emergency Stop button Air filter Left and right borders Over wire explosion proof box www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 6: Setting Up Your Heat Press
Setting Up Your Heat Press How to adjust pressure (figure 1.1) 1. Connect the heat press with air compressor or air sources. 2. Lift up the cap of air valve as the picture four shown 3. Revolve the cap anti clockwise, the air pressure goes down; conunter clockwise, the air pressure goes up;... -
Page 7: Operating Instructions
Operating Instructions Pressing a images to your substrate Ensure that the air supply is connected to the press. Turn on the Main Power Switch. Adjust the air pressure to 0.6-0.8Mpa. Heat platen will open automatically. Draw out the under plate and place the substrate on top of the under plate. Set the appropriate Press Temperature, and Time as per your transfer paper, transfer vinyl or sublimation instructions. -
Page 8: Maintenance
Heat Pressing Guide Transfer Vinyls MultiCut One-4-All MultiCut Premium Temperature: 265˚F Temperature: 310-330˚F Time: 3-5 seconds Time: 45 seconds Peel: Warm (Cotton) Peel: Warm/Cool MultiCut New Flock MultiCut Lustre Temperature: 310-330˚F Temperature: 310-330˚F Time: 15 seconds Time: 15-20 seconds Peel: Warm Peel: Hot to Cold MultiCut Nylon MultiCut Style... - Page 9 Heat Pressing Guide Sublimation Items Sublimatable Ceramic iLumipiX Photo Tiles Panels Temperature: 400˚F Temperature: 400˚F Time: 360-420 seconds Time: 65-150 seconds Peel: Hot Method: Substrate face down Time may varied based on size. Scan the QR code on the left for Image face up instructions or visit our website.
- Page 10 Note: This heat press should not be set to exceed 400˚F (200˚C). Setting the press temperature to above 400˚F (200˚C) may cause a fire hazard. If your mug press stops working, please contact Joto at 1-800-565-5686 so we can help you troubleshoot.
-
Page 11: Schematic Diagram
Schematic Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 12: Expanded View
Expanded Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... - Page 13 Expanded Diagram Serial Part Name Serial Part Name Fallboard for the frame Top cover plate Side plate Start control box Silicon pad Moving frame Lifting board Air cylinder Filter Machine frame Drive rod Lower electric control box Rear rail fixing plate Cover plate for heat platen Front rail fixing plate Fixing bolt...
-
Page 14: Circuit Diagram
Circuit Diagram www.jotoimagingsupplies.com 1-800-565-5686 Blaine, WA | Las Vegas, NV | Antioch TN | Coquitlam, BC | Brampton, ON... -
Page 15: Warranty
HEREBY DISCLAIMS, THE OBLIGATIONS OF JOTO UNDER THIS WARRANTY ARE EXPRESSLY LIMITED TO THE FOLLOWING: a. JOTO will repair or replace at its option, free of charge, any product, component of its products, and any component it sells separately which is installed in JOTO’s heat presses, within twenty-four months and sixty months for the heating platen after shipment by same. -
Page 16: Contact
www.jotoimagingsupplies.com Tel: 1-800-565-5686 Fax: 1-800-565-5622 Coquitlam, BC | Brampton, ON Blaine, WA | Las Vegas, NV |Antioch TN...
