产品外形及安装尺寸/ Shape Dimension & Dimension - nader NDM2E Series Product Manual

Notes: 1) Connect to the breaker, select proper wiring methods according to the Appearance, Installation Dimensions and Wiring
Methods;
2）此尺寸的铜排不能与本体直接连接，需要选购联接排附件。
2) The copper busbar in such dimensions can't be directly connected to the noumenon, connecting line accessories shall be
purchased.
壳架等级额定电流(A)
Frame size rated current
7. 产品外形及安装尺寸/ Shape dimension & Dimension
7.1.1 外形尺寸 （不带通讯背包和电操）
operation)
表 11：外形尺寸表
Table 11: Overall dimensions
外形尺寸 Overall dimensions
型号 Model
长
L(mm)
L
NDM2E-100 150
NDM2E-250 165
NDM2E-400 257
NDM2E-630 280
NDM2E-800 280
地址：上海市浦东新区申江南路 2000 号
文件编号：NDT2920018
表 10：接线端子拧紧扭力矩
Table 10: Torsion value for wiring terminal
Thread diameter
100、250
400
630、800
Overall dimensions (Without communication backpack and electric
宽 高
W(mm H(mm)
) H
92 92
W
107 90
150 106.5
210 116.5
210 116.5
邮编：201315
第 22 页 共 36 页
螺纹直径(mm)
M8
M4
M10
M6
M12
M6

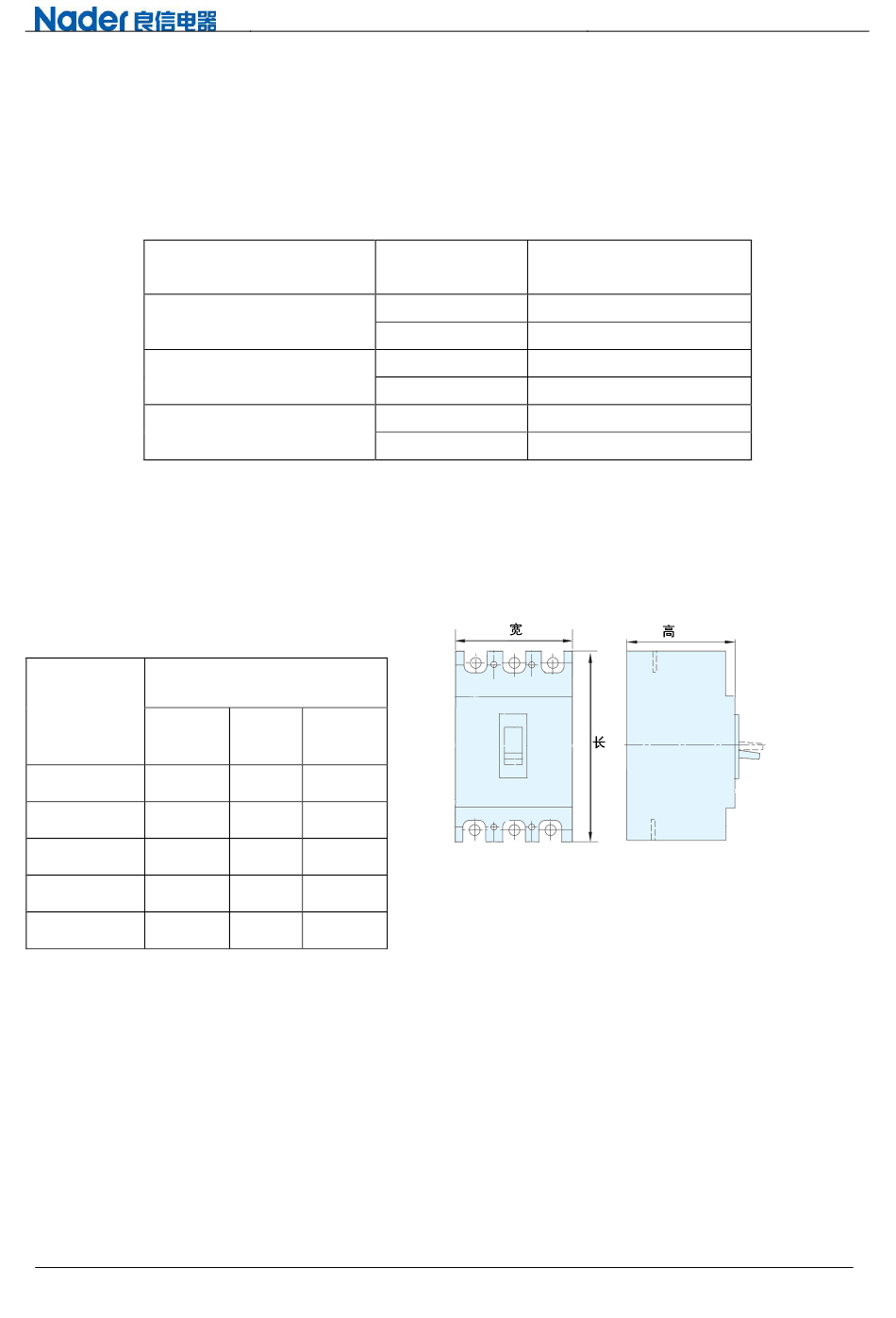

图 11：不带通讯背包和电操外形尺寸图
