文件编号：NDT2920003
文件版本：6

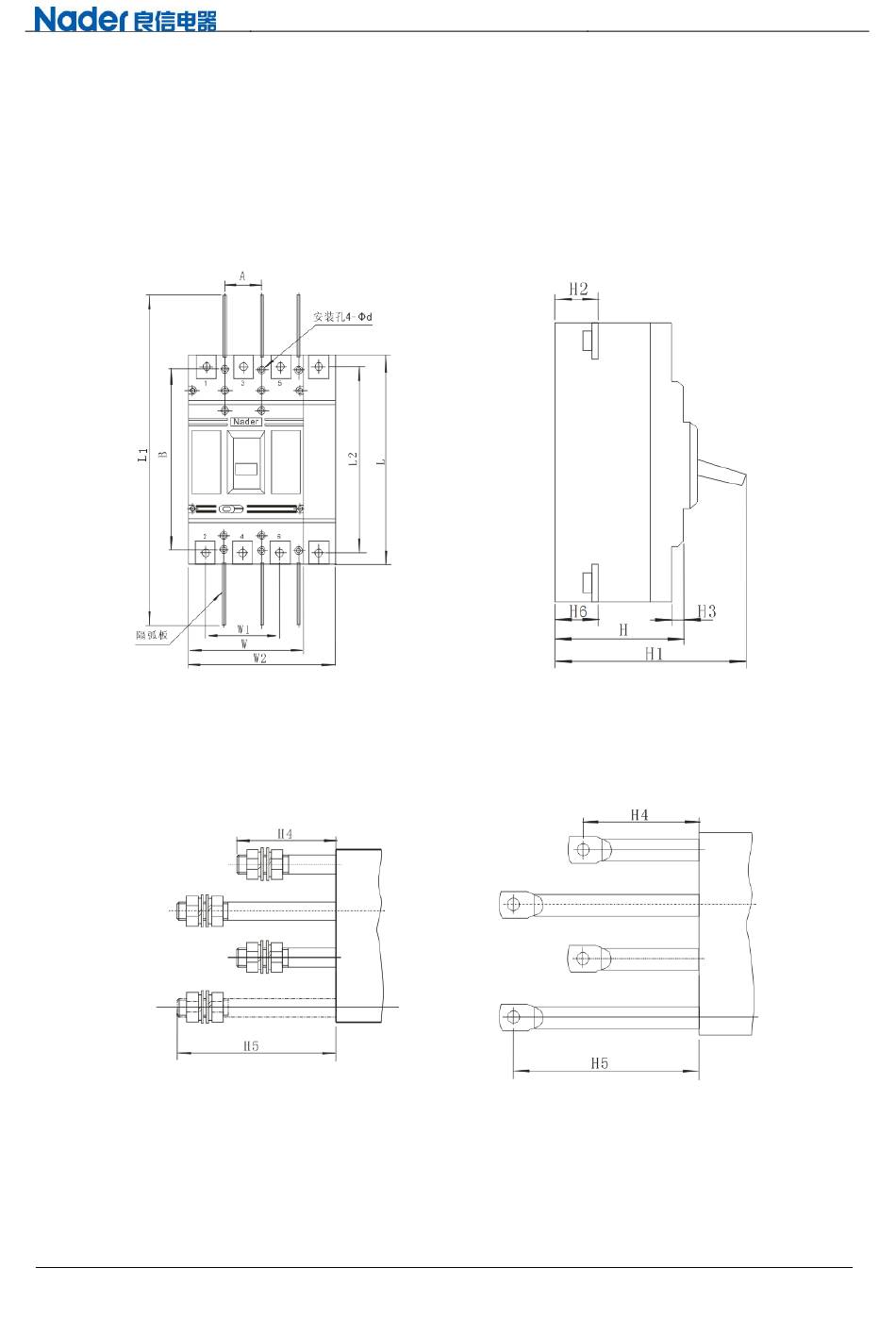

6. 产品外形及安装尺寸/ Shape dimension & Dimension
本产品可板前接线，也可板后接线，具体见图 1、图 2
This product can also be front plate connector, wiring on back of the board, specific see Figure 1, figure
2
图 1 板前接线/ Fig 1 Front connection
NDM3-63~1600
图 2 板后接线/ Fig 2 Rear connection
NDM3-63~250
NDM3-400~800
地址：上海市浦东新区申江南路 2000 号
邮编：201315
电话：(021)68586699
传真：(021)23025796
第 12 页 共 25 页
