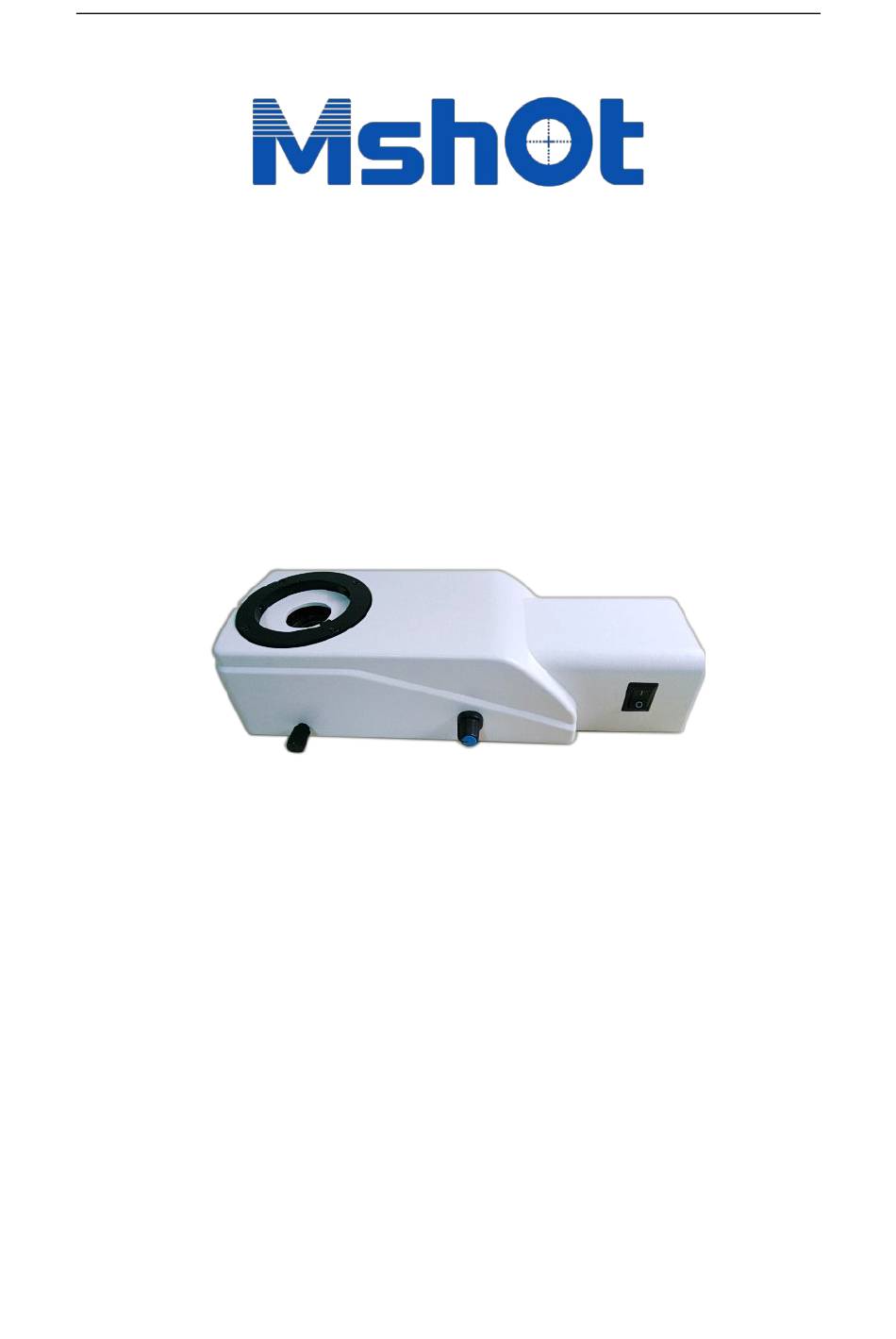

- Page 1 User Manual MF-LED Epi-LED Fluorescent Illumination Guangzhou Micro-shot Technology Co., Ltd www.m-shot.com Sales@m-sho.com...
- Page 2 UV LED excitation, without affecting the bright field observation. LED as light source has a long working life, energy-efficient and easy to operate. MF-UV-LED, not only can match with MSHOT microscope, also can match with Olympus, Nikon, Leica, Zeiss microscope and other major brands.
- Page 3 A. Standard Specification Mode Color LED central Excitation Dichroic Emission wavelength filter mirror filter MF-UV-LED 365nm 330-380nm >400nm >420nm B. Component parts 1.Power 3.Swith lever 2.Brightness knob Figure 01 Function description 1.Switch lever——Used to switch between observation mode of bright field and fluorescence. Push in to get fluorescence observation, pull out to get bright field observation.
- Page 4 Figure 02 2. Take out the fixed screw on Nikon E100 body first (As shown in Figure 03). Then place the illuminator stably on the microscope body, then take use of match size screwdriver to fix the interset screw of illumiantion (As shown in Figure 04).
- Page 5 it is round shape. 3.Switching the objective magnification, observe the shape of light spot under different magnification objective to make sure all light spot are in round shape. 4. Adjus the brightness knob to get a comfortable fluorescent brightness you like. 5.When users would like to get bright field observation, power off the LED light source first, then pull out the switch lever to the limitation.
