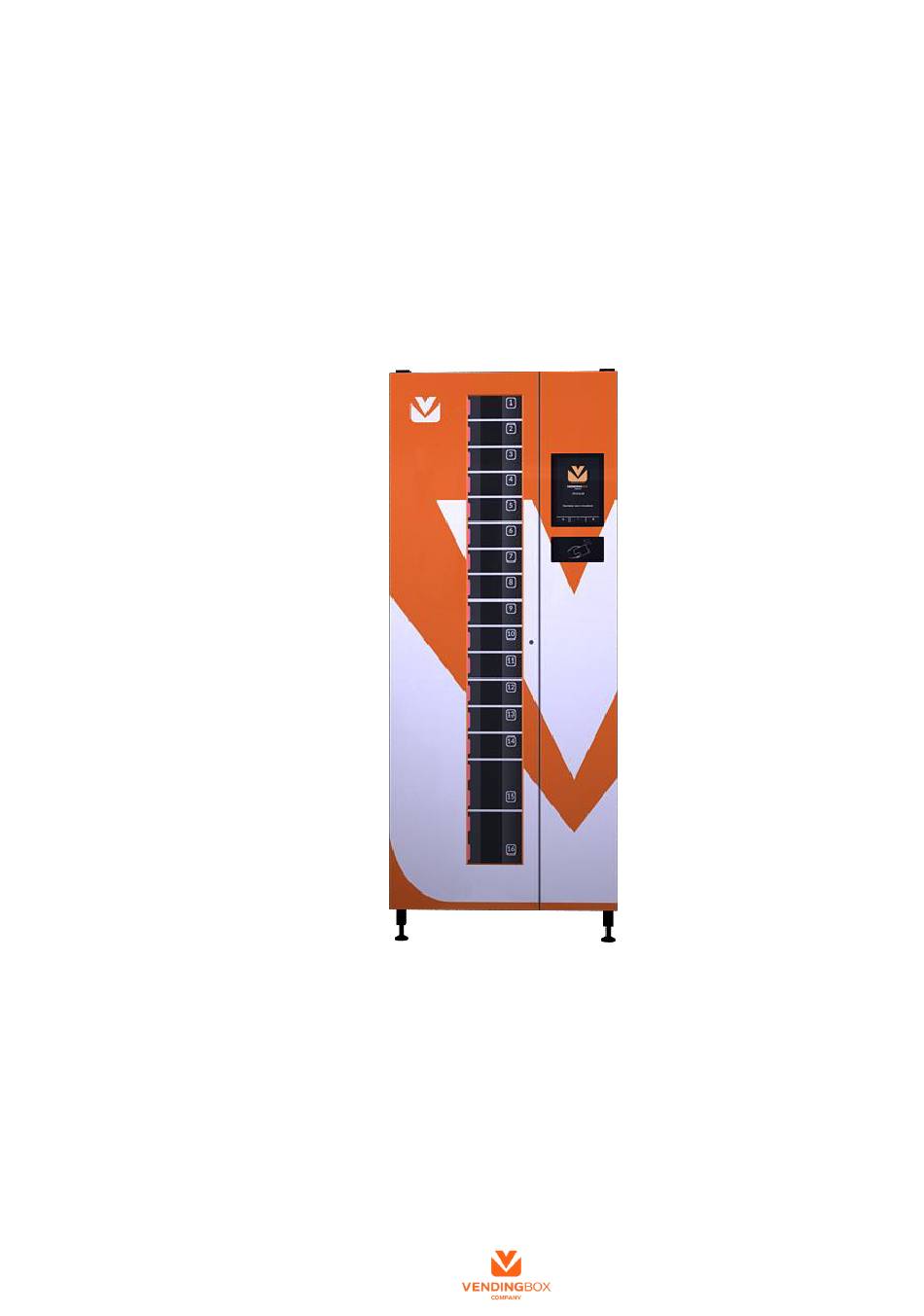

- Page 1 Vending-Box COMPANY Model 540 Manual for vending machine Model 540 CONTACT St. Petersburg, 24 nab. Obvodnogo Kanala, building 3, letter O, room 205 Commercial information: +7 921 340 6029 Technical information: +7 965 780 15 21 info@vending-box.com...
-
Page 2: User's Interface
Vending-Box COMPANY Model 540 PRODUCT CELL Thank you for choosing the Vending-Box Company device. The aim of the following manual is to limited room for keeping products in the feeder. familiarize the user with operating and functions of the PROXIMITY CARD device. - Page 3 Vending-Box COMPANY Model 540 GLOSSARY GENERAL INFORMATION .............................5 Important information on safety............................5 Use of the device ................................5 In case of failure ................................5 Identification of the device ..............................5 The machine construction ..............................5 General view .................................6 Inner front panel .................................6 Back of the device ...............................6 User’s panel controller ..............................6...
-
Page 4: General Information
Unique The use of the system of dispensing management with Hitag the use of 540 dispenser facilitates analysis and control 125kHz of all the distributed items, ensures safety and availability of products 24 hours a day, 7 days a week without additional cost of storing and manual MIFARE®... - Page 5 Vending-Box COMPANY Model 540 6 The machine construction During the 540 dispenser was being designed, our aim was to design a device which would be easy to operate On the upper cover of the machine, there are two and maintain. Because the device is an industrial antennas for radio communication.
- Page 6 Vending-Box COMPANY Model 540 The connection of the power supply Function touch button, through the socket at the back of the User’s panel display, dispenser is an emergency stop switch because of lack of access to the min switch when the The scan field of proximity card reader dispenser door is closed.
-
Page 7: Installation Of The Device
Vending-Box COMPANY Model 540 The device together with its package should undergo recycling. Illegal utilization is the subject to penalties. European Union countries Devices marked with this symbol should not be utilized together with municipal waste. More information may be obtained from the producer. -
Page 8: Configuration Of The Device
In the device informs about it generating three short sound feeder of the 540 dispenser you can set 6 different sizes signals. of product cells. - Page 9 Vending-Box COMPANY Model 540 service or a qualified technician. certain levels according to the needs. For each level of the feeder we can match a product To install or replace the SIM card, flat key which will be dispensed from it. Such matching forms a 10mm and cross-head screwdriver are needed.
- Page 10 Vending-Box COMPANY Model 540 depends on the operator and the tariff plan. If you do not 15.1 ETHERNET interface know the settings needed for connection through GSM, In order to configure Ethernet interface, match the right contact an operator of the net which the used SIM card...
- Page 11 Vending-Box COMPANY Model 540 LOADING AND DOWNLOADING PRODUCTS 1 Loading The feeder may be loaded with products in two different ways. The firs one is loading the feeder through flaps, the second one is loading with a scheme, and in this case a product is matched with a certain level of the feeder.
- Page 12 Vending-Box COMPANY Model 540 For every level, there is information about the matched product, the current number of the products and the volume of all the level. To find out about the number of the products after loading, use the buttons on the left and right side, here: decrease and increase the number by 1.
-
Page 13: Maintenance
Vending-Box COMPANY Model 540 the main interface menu. It is available only for SERVICEMAN. MAINTENANCE While moving the module, be careful not to damage the controller. 1 Cleaning and conservation The device contains a battery ensuring its proper switching off in case of disconnecting from the outer On the front panel, turn out the screws fixing the power supply. - Page 14 Vending-Box COMPANY Model 540 5 The parts required during the reconfiguration of the machine. In order to change the configuration of the dispenser, it may be necessary to install additional elements, which were not installed at the production stage. Here is the...
- Page 15 Vending-Box COMPANY Model 540 inappropriate exploitation, conservation, operation and maintenance. GUARANTEE 15. The damages being the result of a faulty electric system (on the user’s side) or of 1 Guarantee card soaking or flooding electrical components. Each device is supplied with a guarantee card with its 16.
