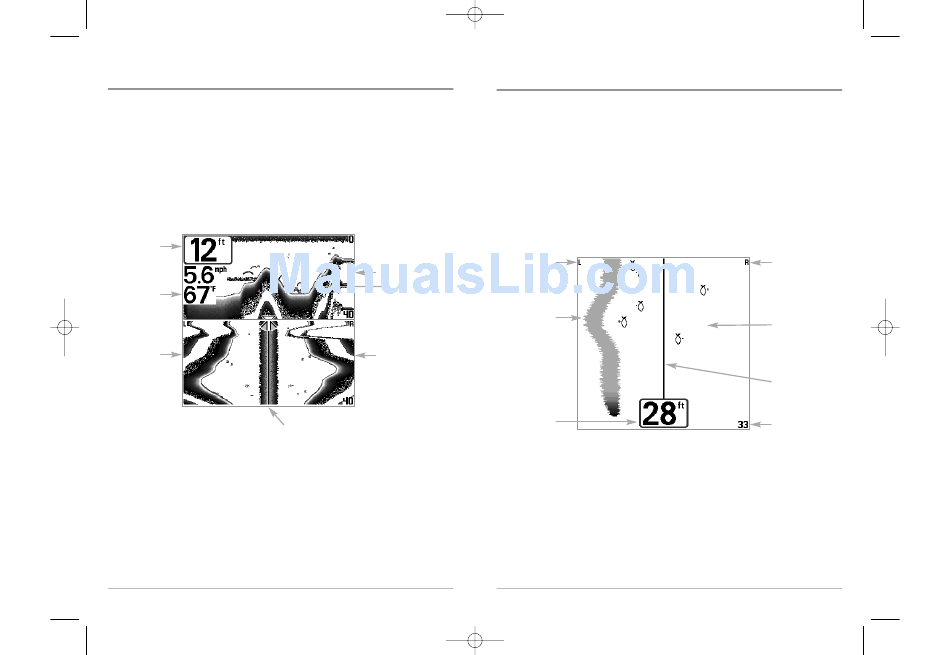

Side Beam View
(with optional-purchase QuadraBeam™ transducer)
Side Beam View is only available if you have connected a QuadraBeam
accessory and when Transducer Select is set to QuadraBeam™ (see Sonar Menu Tab:
Transducer Select). The QuadraBeam™ transducer requires a separate purchase. This
view shows sonar information from both the left and right 90° 455 kHz beams and the
200 kHz down-looking beam in one view. The top portion of the display presents a
historical log of sonar returns from the 200 kHz down-looking sonar. The bottom portion
of the display presents a historical log of sonar returns from the 455 kHz right- and left-
looking sonar. New information appears at the top, and scrolls down the display
Side Beam View
Depth
Temperature
Left Side 455 kHz
Sonar History
Window
The sonar information from the side-looking beams reveals bottom contour, structure
and fish similar to the down-looking beam, but the area covered is to the left and right
of the area shown in the down-looking portion, so you actually see more of the bottom.
The distance covered by the right and left 90° beams is based on the depth setting for
the down-looking beam, up to a maximum of 160 feet.
3:21 AM Page 28
TM transducer
200 kHz Sonar
History Window
Right Side 455 kHz
Sonar History
Window
Water Surface Line for 455 kHz
Sonar History Windows
21
WideSide® View
(with optional-purchase WideSide® transducer)
WideSide® View is only available if you have connected a WideSide® transducer
accessory and when Transducer Select is set to WideSide® (see Sonar Menu Tab:
Transducer Select). The WideSide® transducer requires a separate purchase. The
WideSide® View displays information from the 455 kHz WideSide® transducer. Three
views are available: Left, Right and Both. The default view is Both. Information from
both the left and right beams are displayed simultaneously. The depth of the
water beneath the boat is always displayed. A bottom contour may be present
while bank fishing or fishing river channels. When fishing in the open water, a
bottom contour will not be present, and only sonar returns from either debris or fish
will be displayed.
WideSide View
Left Side View
Bank Contour
Depth
22
Right Side View
Open Water
(no bottom
contour visible
on-screen)
Water Surface
Line
Side Beam
Depth Range
