Machine Layout & Descriptions - Xcel-Arc Razor Cut45 Operating Manual

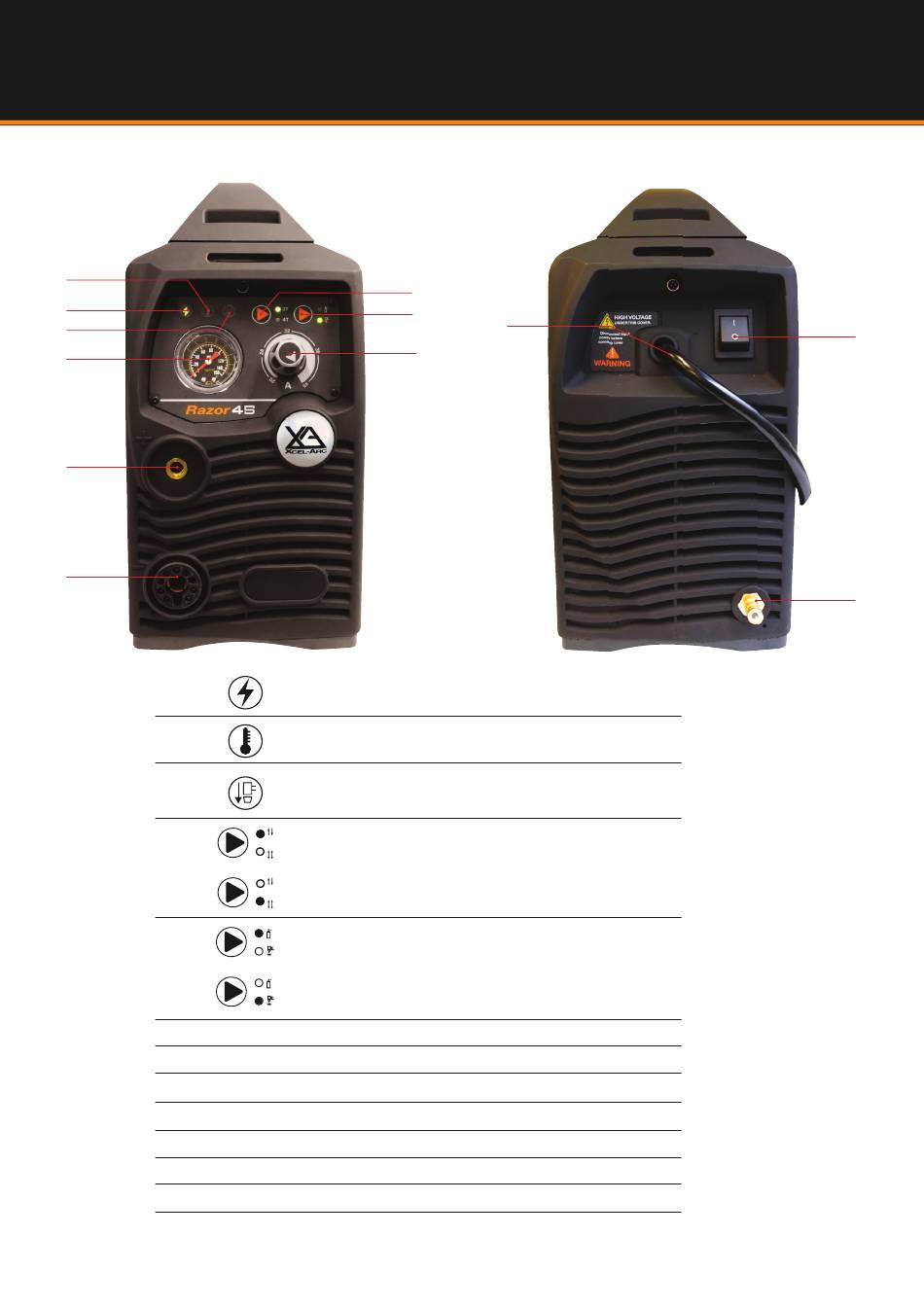

Front & Rear Panel Layout
Front Panel Layout
2
1
3
6
8
9
1
2
3
4
5
6
7
8
9
10
11
12
4
5
7
Power indicator It illuminates when the machine is powered on, :
and it glitters after arc is successfully ignited.
Overheating indicator It illuminates when the working temperature :
of the machine is overly high. Meanwhile, the machine stops working.
Torch protection indicator It illuminates when the consumable :
parts of the machine are not well installed or the torch head is
shorted. Meanwhile the machine stops working.
2T indicator It illuminates when the machine is under 2T status. :
4T indicator: It illuminates when the machine is under 4T status.
Gas-check indicator It illuminates when the machine is under :
gas-check status. At this moment, the machine cannot cut.
Normal cutting mode, the machine can cut when this
indicator illuminates.
Air Pressure Gauge
Amperage Control Dial.
Output connector (DC+) connect to the work piece.
Torch connection (DC-).
Primary power input cable.
On/Off switch.
Air supply connector
