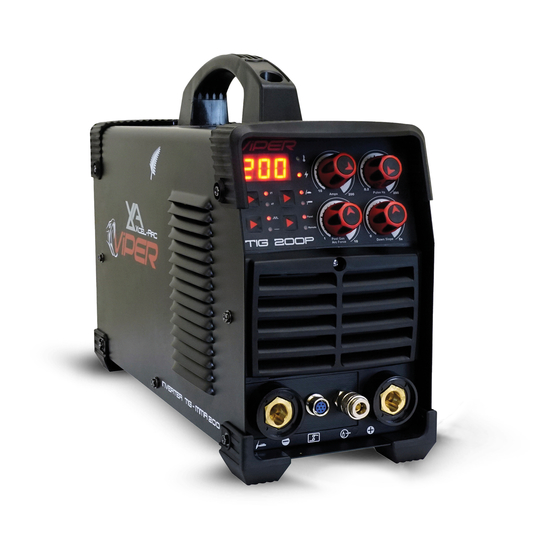

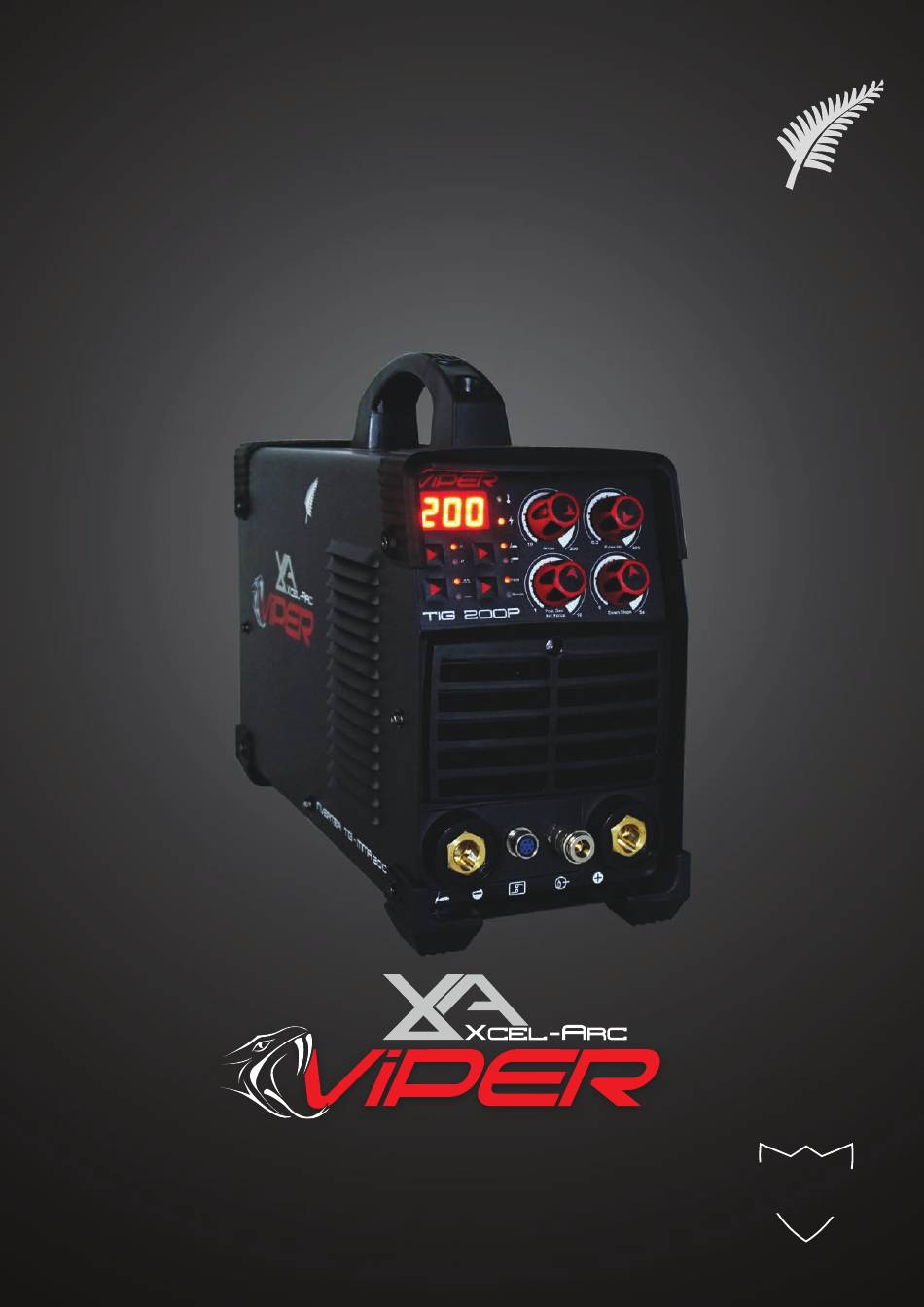

- Page 1 VIPER TIG 200P DC INVERTER WELDER Operating Manual | XA-TIG200VP YEAR YEAR M ACH I N E M AC HI NE WARRANTY WARRANTY Please read and understand this instruction manual carefully before the installation and operation of this equipment. © Xcel-Arc 2021...
-
Page 2: Warranty
Secondly they provide a customer support service that is second to none, thus ensuring our customers have confidence that they will be well satisfied both now and in the future. Xcel-Arc welders and plasma cutters are manufactured to be compliant with - AS/NZ 60974-1, guaranteeing you electrical safety and performance. WARRANTY •... -
Page 3: Table Of Contents
CONTENTS WARRANTY SAFETY VIPER TIG200P FEATURES MACHINE PARTS LAYOUT FRONT PANEL FUNCTIONS INSTALLATION SET UP FOR MMA (STICK) WELDING MMA(STICK) WELDING GUIDE INSTALLATION SET UP FOR TIG WELDING TIG WELDING GUIDE XA17 TIG TORCH & SPARES TIG WELDING SPARES GAS FLOW REGULATORS - SHEILDING GASES MMA (STICK) WELDING TROUBLE SHOOTING TIG WELDING TROUBLE SHOOTING WARRANTY TERMS... -
Page 4: Safety
SAFETY Welding and cutting equipment can be dangerous to both the operator and people in or near the surrounding working area, if the equipment is not correctly operated. Equipment must only be used under the strict and comprehensive observance of all relevant safety regulations. Read and understand this instruction manual carefully before the installation and operation of this equipment. - Page 5 SAFETY Fire hazard. Welding/cutting on closed containers, such as tanks,drums, or pipes, can cause them to explode. Flying sparks from the welding/cutting arc, hot work piece, and hot equipment can cause fires and burns. Accidental contact of electrode to metal objects can cause sparks, explosion, overheating, or fire.
- Page 6 SAFETY CAUTION 1. Working Environment. The environment in which this welding/cutting equipment is installed must be free of grinding dust, corrosive chemicals, flammable gas or materials etc, and at no more than maximum of 80% humidity. ii. When using the machine outdoors protect the machine from direct sun light, rain water and snow etc; the temperature of working environment should be maintained within -10°C to +40°C.
-
Page 7: Viper Tig200P Features
VIPER TIG200P FEATURES TIG/MMA - 200 Amp DC Inverter Welder Welds: Steels, Stainless, Cast Iron, Bronze, Copper TIG/MMA 200 Amp 230V Single Phase DC Welder HF Start, Pulse Adjustment, Downslope, Post Gas Light Industrial Rated, c/w Remote Torch Amp Control Features ■... -
Page 8: Machine Parts Layout
MACHINE PARTS LAYOUT Handle Front Plastic Gaurd Alarm LED Digital Meter Primary Power LED Control Knobs Trigger Function Select TIG MMA Select Pulse Select Front Panel Remote Select Front Panel Grill Remote Receptacle Gas Quick Connect Positive Output Terminal Negative Output Terminal Left Front Foot Right Front Foot Rear Plastic Gaurd... -
Page 9: Front Panel Functions
FRONT PANEL FUNCTIONS Mode Selector - Enables selection of required welding mode - MMA - DC TIG MMA: Select by pushing the selector button DC Tig: Select by pushing the selector button to cycle through to illuminate the icon. to cycle through to illuminate the icon. - Page 10 FRONT PANEL OPERATION - CONTROL KNOBS FUNCTIONS MMA (Stick) Control Knobs MMA Amperage: Turning the knob adjusts the AMPS (welding current) output from 10-160 Amps - displayed by the digital meter. ARC Force Control MMA Arc Force: Turning the knob adjusts the ARC FORCE from 0-100 displayed by the digital meter. The arc force control lets you adjust the force of the arc from a soft buttery arc to a more penetrating, digging type of arc.Higher Arc Force is more suited to Cellulose and Low Hydrogen type elec- trodes where a forceful arc characteristic is preferred to maintain the arc and better control penetration.
-
Page 11: Installation Set Up For Mma (Stick) Welding
INSTALLATION SET UP FOR MMA (STICK) WELDING (1) Connection of Output Cables: Various electrodes require a different polarity for optimum results refer to the electrode manufacturers information for the correct polarity. Most GP electrodes are Electrode connected to output socket, Earth Connected to the output socket. - Page 12 INSTALLATION SET UP FOR MMA (STICK) WELDING (6) Connect the Earth Clamp. (7) Place the electrode into the electrode holder and clamp tight. (8) Strike the electrode on the work to create the arc and hold the electrode steady to maintain the arc. (9) Hold the electrode slightly above the work piece to maintain the arc while travelling at an even speed to create and even weld deposition.
-
Page 13: Mma(Stick) Welding Guide
MMA(STICK) WELDING GUIDE MMA (Manual Metal Arc) Welding One of the most common types of arc welding is manual metal arc welding (MMA) or stick welding. An electric current is used to strike an arc between the base material and a consumable electrode rod or ‘stick’. The electrode rod is made of a material that is compatible with the base material being welded and is covered with a flux that gives off gaseous vapours that serve as a shielding gas and providing a layer of slag, both of which protect the weld area from atmospheric contamination. - Page 14 MMA(STICK) WELDING GUIDE MMA (Stick) Welding Fundamentals Electrode Selection As a general rule, the selection of an electrode is straight forward,in that it is only a matter of selecting an electrode of similar composition to the parent metal. However, for some metals there is a choice of several electrodes, each of which has particular properties to suit specific classes of work.
-
Page 15: Installation Set Up For Tig Welding
INSTALLATION SET UP FOR TIG WELDING (1) Turn on the machine using the ON/OFF switch (2) Select the TIG function with the TIG/MMA selector switch (3) Connect the Tig Torch connector to the negative terminal and tighten it (4) Connect the Earth Cable connector into the positive terminal and tighten it (5) Connect the torch switch remote lead into the torch remote socket (6) Insert the torch gas connector into the quick lock gas receptacle (7) Connect the gas line to the quick lock gas inlet connector at the rear of the machine,... - Page 16 INSTALLATION SET UP FOR TIG WELDING HF (high frequency) ignition allows the arc to be started in Tig welding without touching the tungsten to the work piece. By pressing the torch switch the machine will activate the gas flow and the HF ignition resulting in the arc igniting across the gap between the tungsten electrode and the work piece.
-
Page 17: Tig Welding Guide
TIG WELDING GUIDE DC TIG Welding The DC power source uses what is known as DC (direct current) in which the main elec- trical component known as electrons flow in only one direction from the negative pole (terminal) to the positive pole (terminal). In the DC electrical circuit there is an electrical principle at work which should always be taken into account when using any DC circuit. - Page 18 TIG WELDING GUIDE DC Pulse TIG Welding Pulse TIG welding is when the current output (amperage) changes between high and low current. Electronics within the welding machine create the pulse cycle. Welding is done during the high-amperage interval (this high amperage is referred to as peak current). During the low amperage period, the arc is maintained but the current output of the arc is reduced (this low amperage is referred to as base current).
- Page 19 TIG WELDING GUIDE Set up and operation for DC PULSE TIG Welding The VIPERTIG 200P machine has digital pulse frequency control. The Peak Amp and Pulse Frequency time are adjustable, where as the Base Amp and Pulse Width are preset for ease of use. EXAMPLE OF PULSE DC TIG WELDING - SETUP PARAMETERS: Material = Stainless Steel x 2.0mm / Tungsten Electrode = 1.6mm E3 Tungsten / Gas = Argon The following steps are a guide as a starting point for you to set the machine up in Pulse mode to give an...
- Page 20 TIG WELDING GUIDE TIG Welding Fusion Technique Manual TIG welding is often considered the most difficult of all the welding process- es. Because the welder must maintain a short arc length, great care and skill are re- quired to prevent contact between the electrode and the workpiece. Similar to Oxy- gen Acetylene torch welding, Tig welding normally requires two hands and in most instances requires the welder to manually feed a filler wire into the weld pool with one hand while manipulating the welding torch in the other.
- Page 21 TIG WELDING GUIDE Tungsten Electrodes Tungsten is a rare metallic element used for manufacturing TIG welding electrodes. The TIG process relies on tungsten’s hardness and high-temperature resistance to carry the welding current to the arc. Tungsten has the highest melting point of any metal, 3,410 degrees Celsius.
- Page 22 TIG WELDING GUIDE Tungsten Preparation Always use wheels when grinding and cutting. While tungsten is a very hard material, the surface of a diamond wheel is DIAMOND harder, and this makes for smooth grinding. Grinding without diamond wheels, such as aluminium oxide wheels, can lead to jagged edges, imperfections, or poor surface finishes not visible to the eye that will contribute to weld inconsistency and weld defects.
- Page 23 TIG WELDING GUIDE Remote Amperage Controls - Installation and Operation Remote amperage controls allow for the welding current to adjusted remotely from the welding machine during weld- ing. Generally there several types of remote amperage control available; Hand amperage control located in the torch handle allowing the operator to adjust the welding current by rolling the potentiometer wheel to increase or decrease the amount of amperage desired.
-
Page 24: Xa17 Tig Torch & Spares
XA17 TIG TORCH & SPARES XA17 TIG TORCH XA17 TIG TORCH Suregrip Suregrip™ ™ Series Series 150AMP AIR COOLED XcelArc Rating: 150A DC, 105A AC @35% duty cycle. Wear Parts Identification Next Page Wear Parts Identi cation Next Page Torch Model Description Part Number XA17 Suregrip Tig Torch 4m, Surelok Connector QF Gas XA17-S112GS4... - Page 25 XA17 TIG TORCH & SPARES Standard Front End Parts 10N22 Collet 1.0mm 10N30 Collet Body 1.0mm 10N50 10N49L Long Alumina Nozzle Ø 8mm 18CG Alumina Nozzle Ø 6mm 10N23 Collet 1.6mm 10N31 Collet Body 1.6mm 10N49 10N48L Long Alumina Nozzle Ø 10mm #6L Cup Gasket Alumina Nozzle Ø...
-
Page 26: Tig Welding Spares
TIG WELDING SPARES RedNeck MODULAR FLEXIBLE TORCH NECK SYSTEM The RedNeck Contractors Kit allows you to easily convert your existing standard air cooled TIG Torch to the RedNeck System. The unique RedNeck Flexible Neck Coil provides incredible directional control of the torch head, allowing you to place your torch head in almost any position &... -
Page 27: Gas Flow Regulators - Sheilding Gases
GAS FLOW REGULATORS - SHEILDING GASES Gas Flow Regulators The job of the gas flow regulator is to reduce the bottle pressure gas down to a lower pressure and deliver it at a constant flow. This constant flow of gas is usually fed through the welding machine where it is controlled by a solenoid valve, operated when the torch trigger is pulled. -
Page 28: Mma (Stick) Welding Trouble Shooting
MMA (STICK) WELDING TROUBLE SHOOTING The following chart addresses some of the common problems of MMA welding. In all cases of equipment malfunction, the manufacturer’s recom- mendations should be strictly adhered to and followed. 1: No arc Possible Reason Suggested Remedy Incomplete welding circuit Check earth lead is connected. -
Page 29: Tig Welding Trouble Shooting
TIG WELDING TROUBLE SHOOTING The following chart addresses some of the common problems of DC TIG welding. In all cases of equipment malfunction, the manufacturer’s recom- mendations should be strictly adhered to and followed. 1: Tungsten burning away quickly Possible Reason Suggested Remedy Incorrect Gas Check that pure Argon is being used... - Page 30 Earth clamp not connected to work Connect the earth clamp directly to the work piece wherever possible Recommended Accessories XCEL-ARC PROBAN TOXIC WELDING HELMET WELDING JACKET TOXIC XA-BPJ TIG TORCH HOLDER XCEL-ARC TIG GLOVES MI-TIGHOLD XA-10-1003-L 30 | VIPER 200P TIG Welder Manual...
-
Page 31: Warranty Terms
WARRANTY TERMS ESSETI New Zealand Limited (‘us’, ‘we’) warrants that the products bearing the brand names ESSETI, XCEL-ARC, RAZORWELD, RAZORCUT, JASIC, VIPER, T&R, XCEL-GAS, Otos, Servore, TECNA & HIT-8SS supplied by us and purchased by you from an Authorised ESSETI (NZ) Ltd. Distributor are free of Material and Faulty Workmanship Defects except for those products listed under ‘Warranty Exclusions’... - Page 32 WARRANTY TERMS WARRANTY / RETURNS / EXCHANGES Our Warranty Returns Policy recognises all and any rights you have under New Zealand Consumer Law and other relevant laws. You shall inspect the goods on delivery and shall within seven (7) days of delivery (time being of the essence) notify the Esseti NZ Ltd. Authorised Distributor from whom you purchased the goods of any alleged defect, shortage in quantity, damage or failure to comply with the description or quote.
- Page 33 Tungsten Electrodes, Collet, Collet Body, Alumina Nozzle, Torch Head, Torch Head water Cooled, Torch Head Flexible, Back Caps, Gas Lens, Torch Handle, Cup Gasket, Torch Body Gas Valve, O-ring, All XCEL-ARC TIG Welding Rods, All XCEL-ARC / Magmaweld Electrodes, Arc Leads, Welding Cable, Electrode Holder, Earth Clamps •...
-
Page 34: Notes
NOTES 34 | VIPER 200P TIG Welder Manual... - Page 35 NOTES VIPER 200P TIG Welder Manual | 35...
- Page 36 New Zealand Limited Esseti New Zealand Limited PO Box 4189, Palmerston North - 4442 Phone: 06 355 1103 Fax: (06) 354 2437 Email: sales@esseti.co.nz www.esseti.co.nz Xcel-Arc © Esseti NZ LTD - 2021...
