Display - B meters HYDROCLIMA 2 User Manual

Display

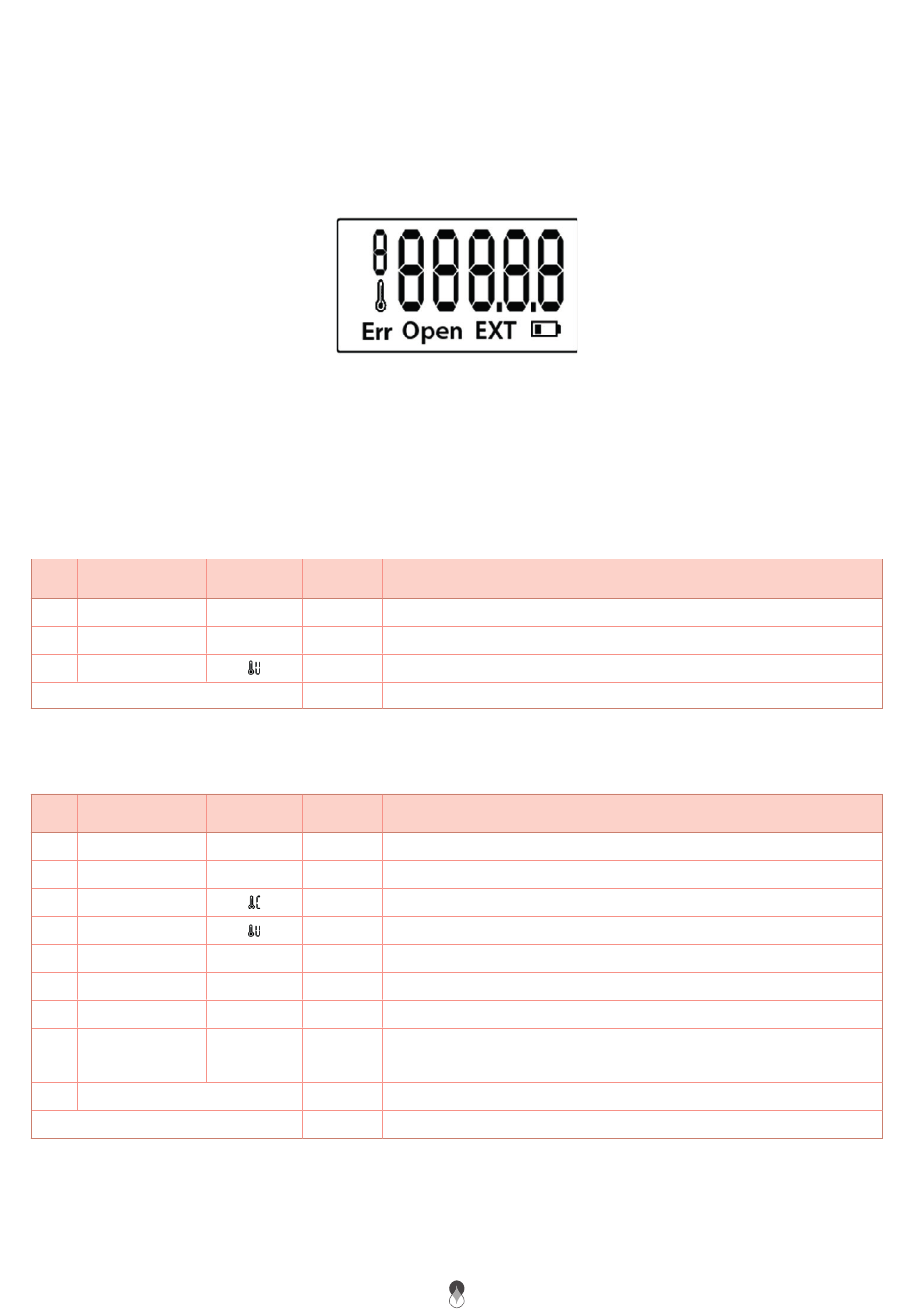

To present the data, a digital display with icons is available. A full lines test of the display is presented below:
The heat cost allocator shows data in two modes, a basic mode and an extended one:
→ Basic mode takes place by short-time pushing of the button (not exceeding 2 sec.);
→ Extended mode takes place by pushing of the button exceeding 3 sec.
Basic mode - data is displayed as a loop repeated three times.
The following table represents a cycle of displaying information on recorded data and errors.
Item Conditionally
1
2
3
Total
Extended mode - can be entered exclusively during an active basic mode. Three cycles of the expanded loop are
displayed and subsequently the device goes back in stand-by mode.
Item Conditionally
1
2
3
4
5
6
7
8
9
10
Total
Message Time in s
"C" 3
"U" 3
3
" "
9
Message Time in s
"C" 2
"U" 2
2
" "
2
" "
"IP" 2
"2P" 2
"1" 2
"2" 2
"H" 2
2
20
Description
Present data
Data (results) for a terminated clearing period
Average ambient temp. for a terminated period
Error
Present data
Data (results) for a terminated clearing period
Average ambient temp. for a present period
Average ambient temp. for a terminated period
The first adjustment coefficient (KC)
The second adjustment coefficient (KQ)
Beginning date of a clearing period
Closing date of a clearing period
Control code
Serial number (last 6 digits)
