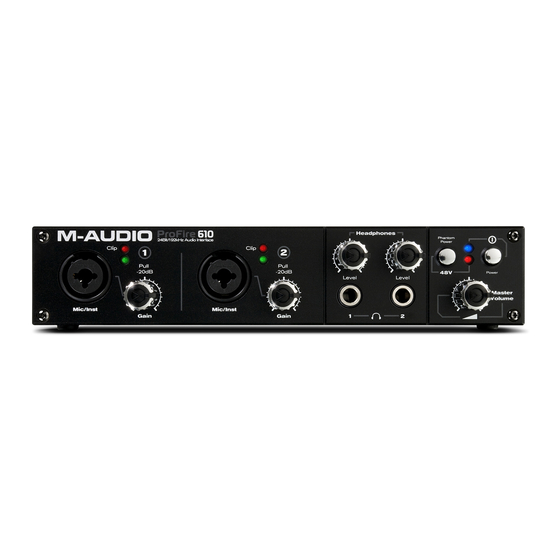

PROFIRE 610
1.0 Scope
This procedure defines the method required to test:
• 9900-52650-12 Profire 610, INTL
• 9900-52649-00 Profire 610, US
2.0 Reference Documents
2.1 M-Audio Dealer Check in sheet
2.2 M-Audio Scrap log
2.3 M-Audio RTV Log
3.0 Equipment
3.1 Audio Source (DVD player with S/PDIF & optical output)
3.2 Software (Pro Tools M-powered & Midi Ox)
3.3 Headphones (Q40)
3.4 Sound check microphone
3.5 Phantom powered microphone (Solaris) or XLR Phantom Tester
3.6 Word Clock generator (Hosa, WDC-427)
3.7 Firewire cables (included with product)
3.8 Pigtail cable (included with product)
UNCONTROLLED DOCUMENT when printed or copied
Form: 0150-30027-01 Rev C
Procedure P/N
Revision:
Date Printed: 3/10/2010
PROCEDURE
:
Page 1 of 7
Advertisement
Table of Contents
Related Manuals for Avid Technology M-Audio ProFire 610
Summary of Contents for Avid Technology M-Audio ProFire 610

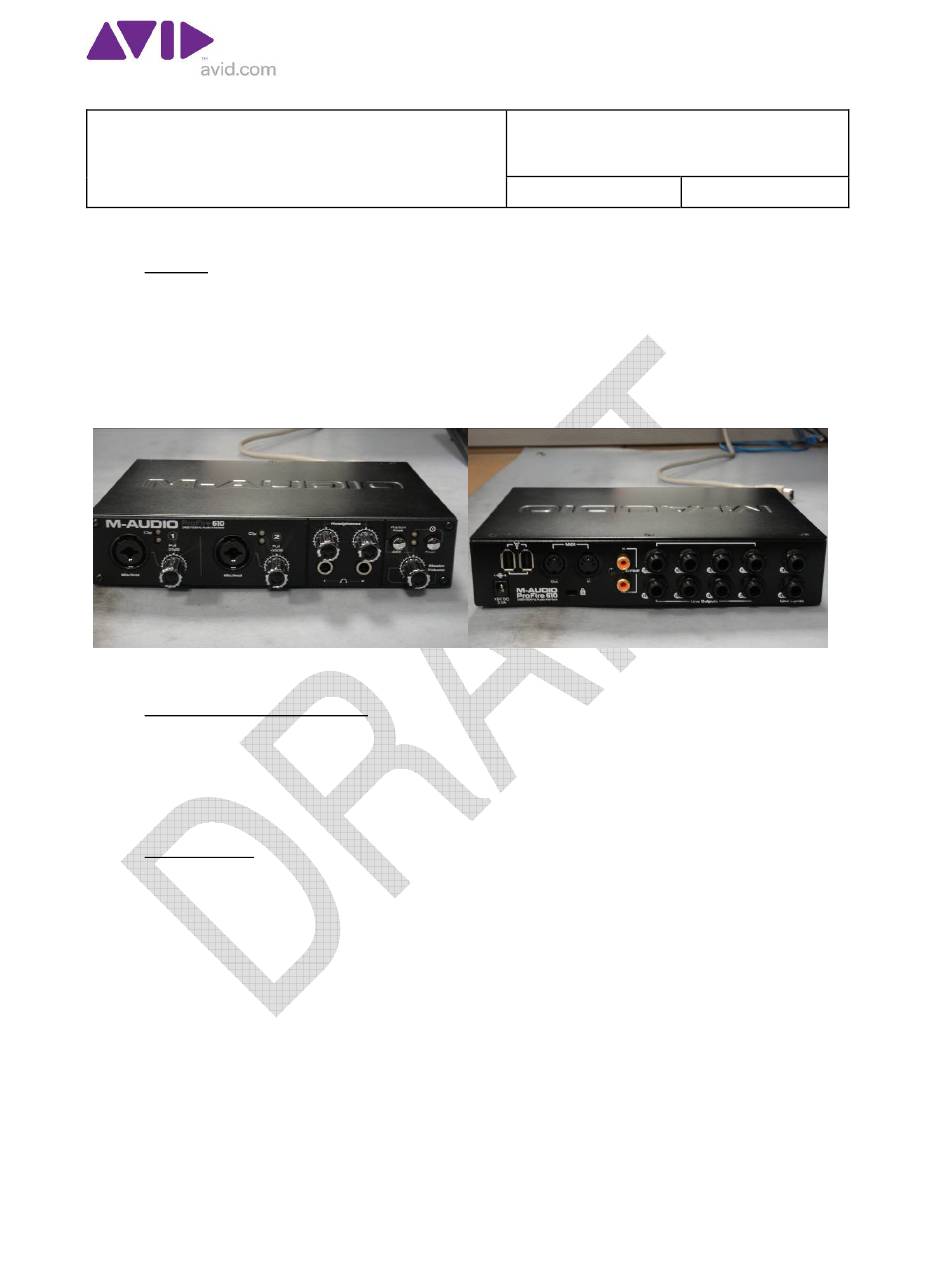

- Page 1 PROCEDURE Title Procedure P/N PROFIRE 610 Revision: Page 1 of 7 1.0 Scope This procedure defines the method required to test: • 9900-52650-12 Profire 610, INTL • 9900-52649-00 Profire 610, US 2.0 Reference Documents 2.1 M-Audio Dealer Check in sheet 2.2 M-Audio Scrap log 2.3 M-Audio RTV Log 3.0 Equipment...
- Page 2 PROCEDURE Title Procedure P/N PROFIRE 610 Revision: Page 2 of 7 3.9 RCA male to ¼” TRS cable x2 3.10 ¼” TRS to ¼” TRS cable x2 3.11 XLR female to XLR male cable 3.12 Optical cable x2 3.13 S/PDIF cable x2 3.14 Word clock cable x2 3.15 Midi cable x2 3.16 CO2...
- Page 3 PROCEDURE Title Procedure P/N PROFIRE 610 Revision: Page 3 of 7 4.8 TEST I/O AND MICROPHONES 4.8.1 Connect the DVD audio output cable to each of the four Inputs (2 on the front, 2 on the back) on the Profire 610 to individually test.
- Page 4 PROCEDURE Title Procedure P/N PROFIRE 610 Revision: Page 4 of 7 4.8.5 Test Master Volume knob on the Profire 610. 4.8.6 Connect headphones to Headphone 1 and test volume with Line Out 1 and 2. NOTE: if Master Volume is turned down, no volume will be heard in headphones.
- Page 5 PROCEDURE Title Procedure P/N PROFIRE 610 Revision: Page 5 of 7 4.9 TEST S/PDIF 4.9.1 Connect S/PDIF output of DVD to S/PDIF input of Profire 610. 4.9.2 In Control Panel - go to Settings Tab – change Sync Source to External (S/PDIF). 4.9.3 Push 5 and 6 S/PDIF input faders in Profire 610 control panel to test activity.
- Page 6 PROCEDURE Title Procedure P/N PROFIRE 610 Revision: Page 6 of 7 4.10 TEST PRO TOOLS 4.10.1 Using the DVD player as the source, connect Line Out 1 and 2 with speakers. 4.10.2 Launch Pro Tools. 4.10.3 Confirm that Pro Tools recognizes the unit. 4.10.4 Play music from Pro Tools session to verify sound plays through the unit.
- Page 7 PROCEDURE Title Procedure P/N PROFIRE 610 Revision: Page 7 of 7 5.0 Revision History Created/ Change Description Revised By Date UNCONTROLLED DOCUMENT when printed or copied Date Printed: 3/10/2010 Form: 0150-30027-01 Rev C...
