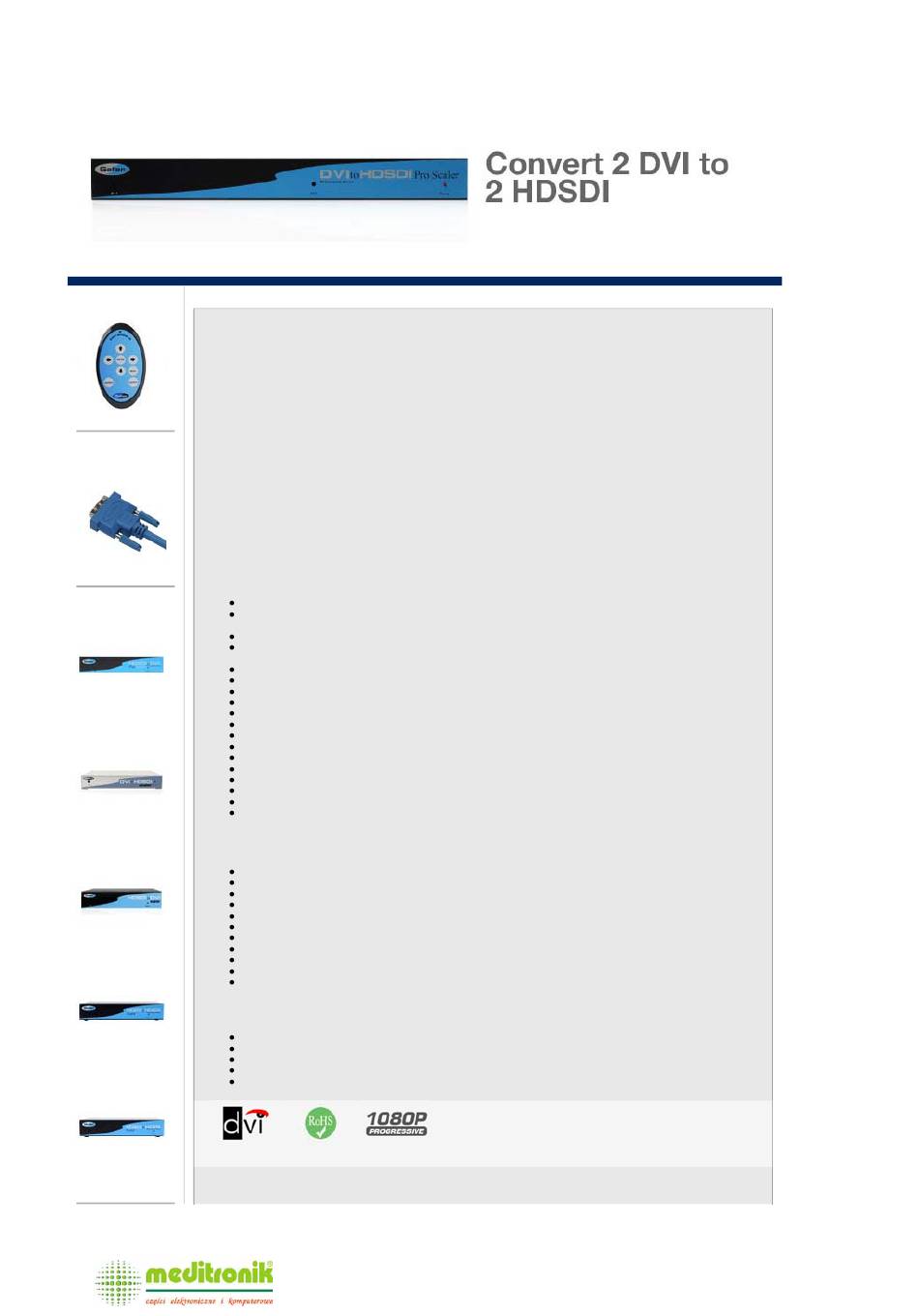

DVI to HD-SDI Pro Scaler
Products
Combines SDI and DVI Equipment for Maximum Interoperability

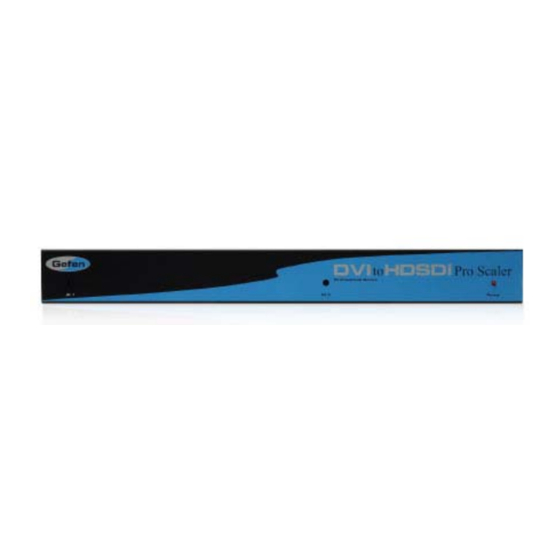

The Gefen DVI to HDSDI Pro Scaler combines two of our DVI to HDSDI Scaler Plus units into one
rack-mountable unit. It still incorporates full single-link DVI-D conversion scaled to your choice of
SD/HDSDI Single- or Dual-link modes, but now simplifies your rack. Resolutions of up to 1080p are
supported over the HDSDI link for those that want true "High Definition." Performance has been
greatly enhanced due to Gennum's VXP Scaler circuitry onboard, allowing for new features such as
Genlock, Color & Gamma Correction, Noise Reduction, Detail Enhancement, Aspect Ratio
RMT-8HDS-IR
Selection, Pattern Generator Mode, and Multiple Language Menu Support. Bottom Line? More
performance, less cost.
Optional
Accessories
How It Works
DVI source devices are connected to the DVI inputs and SDI display devices are connected to the
SDI outputs. When the sources, displays and the Scaler are powered and connected, video signals
are converted to the proper format.
Note:
Please click here for the RS-232 control manual
DVI Cables
Features:
Related Products
10-bit resolution for greater precision and dynamic range
Proprietary 10-bit motion adaptive video de-interlacing with edge interpolation for HD / SD
formats
Advanced noise reduction and detail enhancement
Max. active image size of 2048 samples x 2048 lines PBP processing for various
combinations of video and graphics with alpha blending
Fully integrated sprite based multi-plane OSD controller.
Frame rate conversion to / from any refresh rate
Pattern mode w/ color bars & cross hatch patterns
Color correction
HD-SDI to DVI PLUS
Noise Reduction
Scaler Box
Detail Enhancement
Brightness Adjustment
Gamma Selection
Aspect Ratio Select
Custom Timing output mode
French/English Menu Set
RS-232 upgradeable firmware
RS-232 and/or IR Control
Genlock
DVI to HD-SDI Single
Link Scaler Box
Specifications:
Input Video Bandwidth: 165 MHz
Output Video Bandwidth: 2 x 1.485 GBps
Maximum Input Resolution: 2048 x 1080
Maximum Output Resolution: 2048x1080 with Dual-Link HD-SDI
DVI Connector: DVI-I 29 pin female (digital only)
SDI/HDSDI Connector: BNC female
Data Port: Serial RS-232
HD-SDI to DVI Single
Power Supply: 5V DC
Link Scaler Box
Power Consumption: 20 watts (Max.)
Dimensions: 15"W x 1.75"H x 6.75"D
Shipping Weight: 8 lbs.
Package Includes:
DVI to HDSDI Scaler
5v Power Supply
2 x 6-foot DVI Cables
HDMI to HD-SDI
RMT-8HDS-IR Remote Control
Scaler Box
Users Manual
HD-SDI to HDMI
Scaler Box
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
EXT-DVI-2-HDSDIPRO
