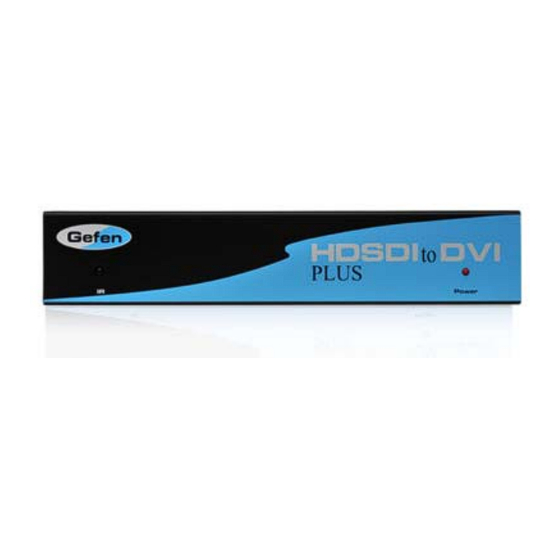

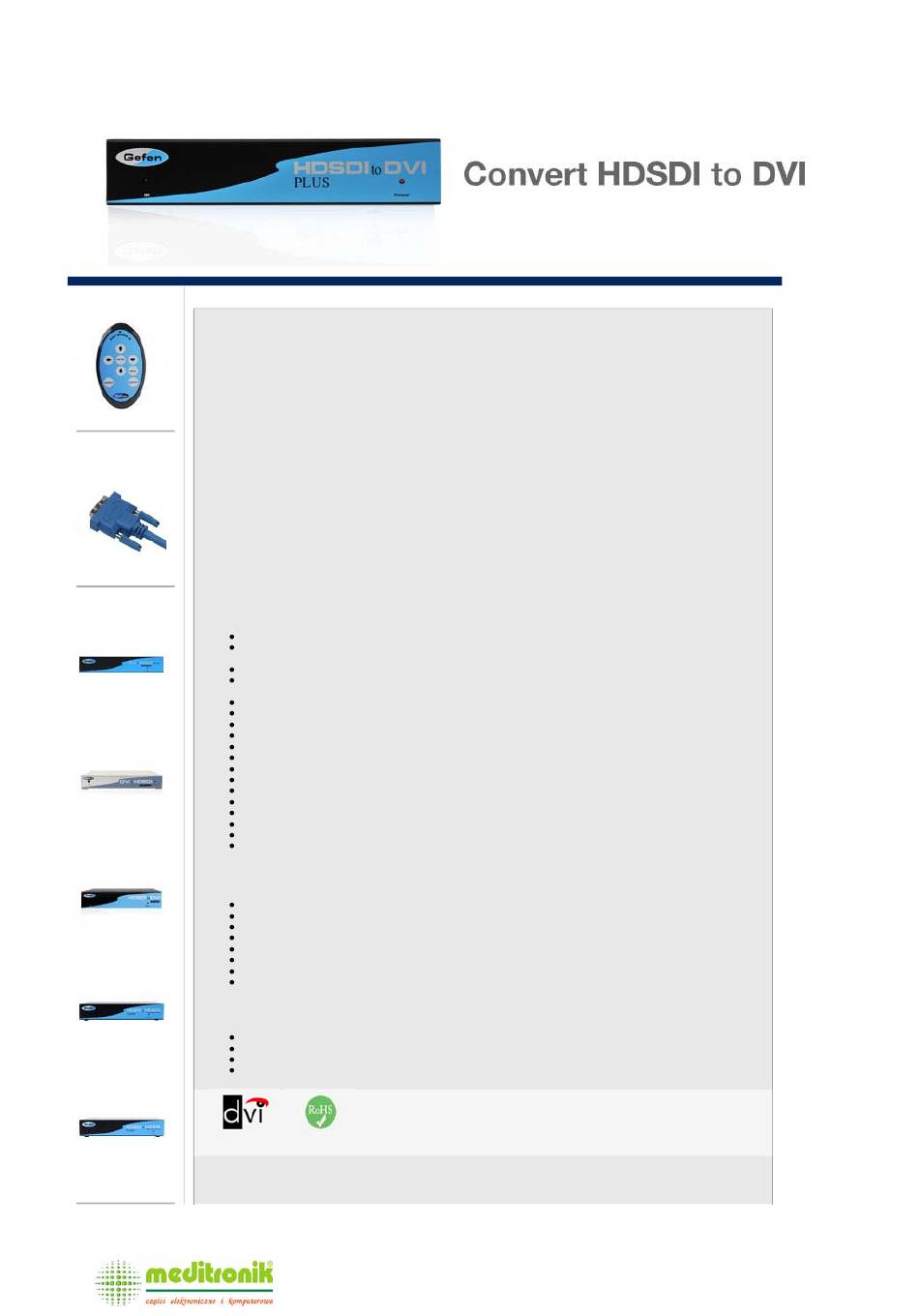

HD-SDI to DVI PLUS Scaler Box
Products
Combines SDI and DVI Equipment for Maximum Interoperability
The HDSDI to DVI PLUS Scaler is the newest revision of our HDSDI conversion line incorporating
SD/HDSDI Single or Dual link mode conversion scaled to Full Single link DVI-D. Resolutions of up
to 1080p are supported over the DVI link for those that want true "High Definition". Performance
has been greatly enhanced due to Gennum's VXP Scaler onboard; allowing for new features such
as: Genlock, Color & Gamma Correction, Noise Reduction, Detail Enhancement, Aspect Ratio
Selection, Pattern Generator Mode, & Multiple Language Menu Support. Bottom Line? -- More
RMT-8HDS-IR
performance, less cost.
SDI
Optional
SDI (serial digital interface), used primarily in broadcasting, converts and transmits digital video
Accessories
through SDI connectors. It enables video sources to process high definition, high quality video.
How It Works
HD-SDI devices are connected to the HD-SDI input and DVI devices are connected to the DVI
output. When the source, display and the Scaler are powered and connected, video signals are
converted to the proper format
DVI Cables
Note:
Please click here for the RS232 control manual
Related Products
Features:
10-bit resolution for greater precision and dynamic range
Proprietary 10-bit motion adaptive video de-interlacing with edge interpolation for HD / SD
formats.
Advanced noise reduction and detail enhancement
Max. active image size of 2048 samples x 2048 lines PBP processing for various
combinations of video and graphics with alpha blending
Fully integrated sprite based multi-plane OSD controller.
DVI to HD-SDI PLUS
Frame rate conversion to / from any refresh rate
Scaler Box
Pattern mode w/ color bars & cross hatch patterns
Color correction
Noise Reduction
Detail Enhancement
Brightness Adjustment
Gamma Selection
Aspect Ratio Select
Custom Timing output mode
French/English Menu Set
RS-232 upgradeable firmware
DVI to HD-SDI Single
RS-232 and/or IR Control
Link Scaler Box
Genlock
Specifications:
Input Video Bandwidth: 2x 1.485 Gbps (Dual Link HD-SDI)
Output Video Bandwidth: 165 MHz (Single Link DVI-D)
Maximum Input/Output Resolution: 2048x1024
Audio Output: 2 channel Analog Audio
HD-SDI to DVI Single
Rack Mountable
Link Scaler Box
Power Supply: 5V DC
Shipping Weight: 5 lbs.
Dimensions: 8.25"W x 1.75"H x 7.5"H
Package Includes:
HD-SDI to DVI PLUS Scaler Box
5v Power Supply
RMT-8HDS-IR remote control
HDMI to HD-SDI
Users Manual
Scaler Box
HD-SDI to HDMI
Scaler Box
Dystrybucja i sprzedaż: Meditronik Sp. z o.o.
02-952 Warszawa, ul. Wiertnicza 129, tel. (+48 22) 651-72-42, fax (+48 22) 651-72-46
http://www.meditronik.com.pl
e-mail: office@meditronik.com.pl
EXT-HDSDI-2-DVISP
Advertisement
Table of Contents
Related Manuals for Gefen RMT-8HDS-IR
Summary of Contents for Gefen RMT-8HDS-IR
- Page 1 Power Supply: 5V DC Shipping Weight: 5 lbs. Dimensions: 8.25"W x 1.75"H x 7.5"H Package Includes: HD-SDI to DVI PLUS Scaler Box 5v Power Supply RMT-8HDS-IR remote control HDMI to HD-SDI Users Manual Scaler Box EXT-HDSDI-2-DVISP HD-SDI to HDMI Scaler Box Dystrybucja i sprzedaż: Meditronik Sp.
- Page 2 Supported Input formats: Output video formats supported: 480i 483p/59.94 480p 576p/50 576i 720p/23.97 576p 720p/24 720p/23.97 720p/25 720p/24 720p/29.97 720p/25 720p/30 720p/29.97 720p/50 720p/30 720p/59.94 720p/50 720p/60 720p/60 1035i/59.94 720p/59.94 1035i/60 1035i/59.94 1080i/50 1035i/60 1080i/50M 1080i/50 1080i/59.94 1080i/50M 1080i/60 1080i/59.94 1080p/23.98 1080i/60 1080p/24...
- Page 3 HD-SDI to DVI Scaler PLUS U S E R M A N U A L www.gefen.com...
- Page 4 Notice Gefen Inc. reserves the right to make changes in the hard ware, packaging and any accompanying doc u men ta tion without prior written notice. The HD-SDI to DVI Scaler PLUS is a trademark of Gefen Inc.
-
Page 5: Table Of Contents
TABLE OF CONTENTS Introduction Panel Descriptions Menu Functions Menu Functions Supported Input/Output Resolutions RMT-8HDS-IR Installation RMT-8HDS-IR Installation RS-232 Interface / Firmware Update Procedure Specifi cations Warranty... -
Page 6: Introduction
INTRODUCTION The HDSDI to DVI PLUS Scaler is the newest revision of our HDSDI conversion line incorporating SD/HDSDI Single or Dual link mode conversion scaled to Full Single link DVI-D. Resolutions of up to 1080p are supported over the DVI link for those that want true “High Defi... -
Page 7: Panel Descriptions
PANEL DESCRIPTIONS Infrared Eye Power Indicator Light RS-232 Uplink Port 5V Power DVI-D Output HD-SDI Connector HD-SDI Audio Output Input 1 Input 2 / Loop / Loop Out 2 Out 1... -
Page 8: Menu Functions
MENU FUNCTIONS Aspect: -Full Screen: Stretches input to fi ll the Monitor. -Letter / Pillar Box: Sets the aspect ratio to fi t a letter or pillar box format. -Panoramic: Panoramic Zoom feature -Extract: Feature to magnify the signal. -Exact Size: Adjusts signal magnifi cation. -Horizontal / Vertical Position: Moves the magnifi... -
Page 9: Menu Functions
4 different settings between 0 and 3. When the remote channel is changed, dip switches in the 16 button remote must be changed to the corresponding code in order to continue operating the HD-SDI to DVI Scaler. (Please see RMT-8HDS-IR Installation page for more information.) Output: -Video Output Format: Select the desired HD output resolution. -
Page 10: Supported Input/Output Resolutions
SUPPORTED INPUT/OUTPUT RESOLUTIONS Input Video Formats Supported: 480i 720p/50 1080p/23.98 1080sf/23.98 480p 720p/59.94 1080p/24 1080sf/24 576i 720p/60 1080p/25 1080sf/25 576p 1035i/59.94 1080p/29.97 1080sf29.97 720p/23.98 1035i/60 1080p/30 1080sf/30 720p/24 1080i/50 1080p/50 2K-p/23.98 720p/25 1080i/50M 1080p/50M 2K-p/24 720p/29.97 1080i/59.94 1080p/59.94 2K-sf/23.98 720p/30 1080i/60 1080p/60 2K-sf/24... -
Page 11: Rmt-8Hds-Ir Installation
The SOURCE button selects the input source (Input 1 or Input 2) *Note: Both dip switches under the remote battery cover must initially be in the OFF position to communicate with the Scaler. For more information, please see page 7 for RMT-8HDS-IR Installation instructions. -
Page 12: Rmt-8Hds-Ir Installation
Insert the battery, hold the battery so that you can see the positive side facing up. The side that is not marked must be facing down. Test the RMT-8HDS-IR remote by pressing ONLY one button at a time. The indicator light on the remote will fl ash once each time you press a button. -
Page 13: Rs-232 Interface / Firmware Update Procedure
The HDSDI to DVISP can be controlled via IR remote and through the RS-2323 Uplink port. Check the download section on our website for fi rmware updates and information on how to control this unit. Go to http://www.gefen.com/kvm/support/download.jsp to fi nd the necessary documents and fi les. -
Page 14: Specifications
SPECIFICATIONS Input Video Bandwidth..........2x 1.485 Gbps (Dual Link HD-SDI) Output Video Bandwidth.............1.65 Gbps (Single Link DVI-D) Maximum Output Resolution..............1920x1200@60Hz Audio Output.................2 channel Analog Audio Rack Mountable......................Yes Power Supply......................5V DC Shipping Weight......................5 lbs. Dimensions..................8.25”W x 1.75”H x 7.5”H...
