r.LiNK Video-inserter
RL3-NAC
Compatible with
Citroen vehicles with NAC infotainment
Peugeot vehicles with NAC infotainment
Video-inserter with 2 video inputs,
rear-view camera input and CAN control
Product features
Video-inserter for factory infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
1 Rear-view camera CVBS video-input
Automatic switching to rear-view camera input on engagement of reverse gear
Activatable parking guide lines for the rear-view camera (vehicle specific
restrictions possible)
Video-in-motion in drive mode (ONLY for connected video-sources)
AV-inputs PAL and NTSC compatible
Version 03.11.2017
HW:CAM-GD (V93)
RL3-NAC
Advertisement
Table of Contents
Related Manuals for NavLinkz RL3-NAC
Summary of Contents for NavLinkz RL3-NAC

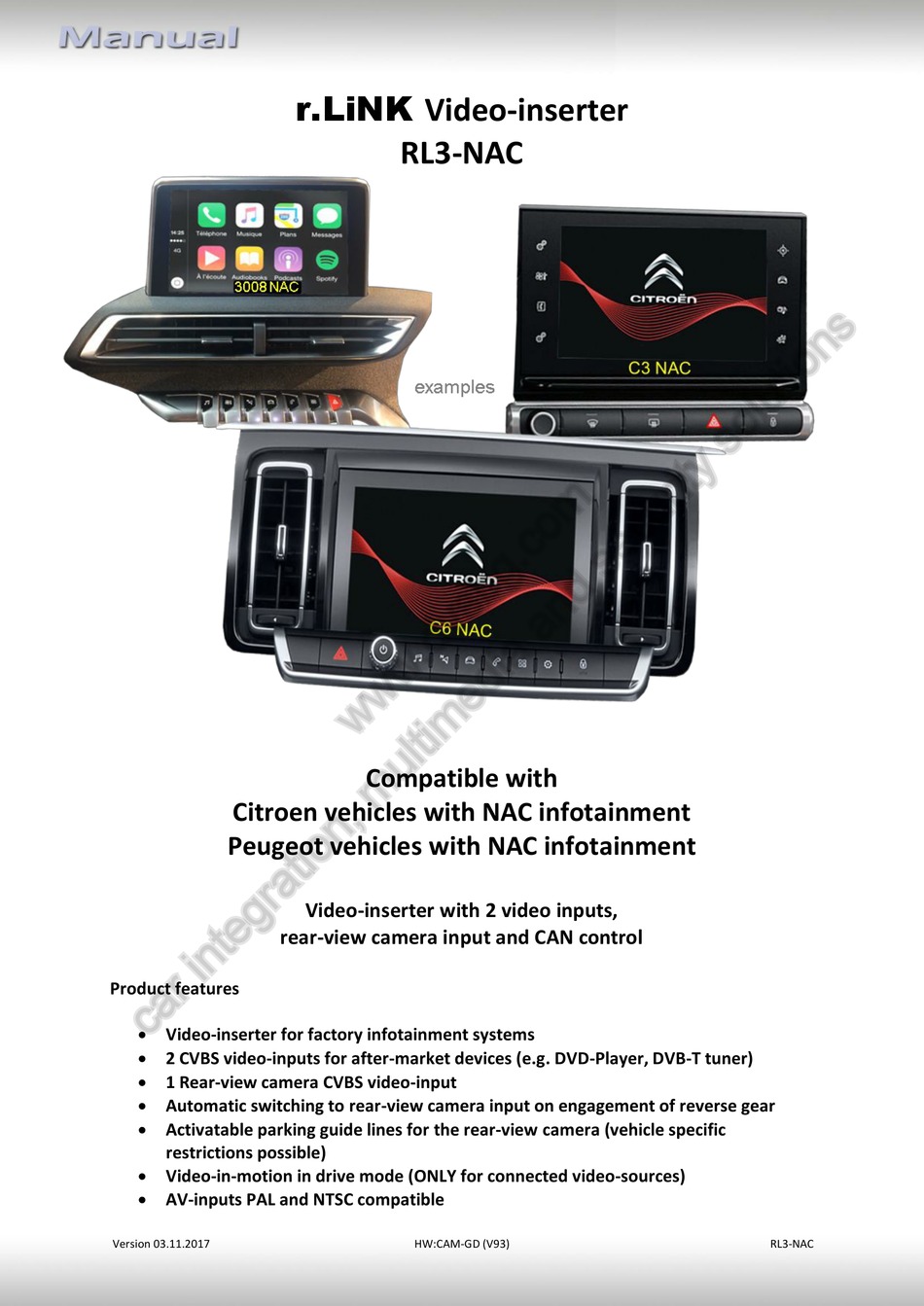

- Page 1 Video-inserter RL3-NAC Compatible with Citroen vehicles with NAC infotainment Peugeot vehicles with NAC infotainment Video-inserter with 2 video inputs, rear-view camera input and CAN control Product features Video-inserter for factory infotainment systems 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner) ...
-
Page 2: Table Of Contents
Video signal connection for the rear-view camera 2.5. Connecting video-interface and external keypad 2.6. Picture settings and guide lines 3. Interface operation 3.1. By NAVI button 3.2. By external keypad 4. Specifications 5. FAQ – Trouble shooting 6. Technical support Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 3: Prior To Installation
Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
Factory rear-view camera Automatic switching-back from inserted video to factory rear-view camera is only possible while the reverse gear is engaged. To delay the switch-back, an additional electronic part is required. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 5: Warning Notes
Warning notes: Damage to the head-unit is possible, if this RL3-NAC interface is installed to older Citroen / Peugeot SMEG or SMEG+ head-units (by Magneti Marelli)! Use this RL3-NAC interface only on Citroen/Peugeot NAC head-units (by Continental from about 2016-) Designs and features –see the following pictures:... -
Page 6: Connection Video-Interface
No function set to OFF Low / High Version Low version head unit High version Head unit See the following chapters for detailed information. After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 7: Enabling The Interface's Video Inputs (Dip 2-3)
Dip position down is ON and position up is OFF. Navigation / Sy5tem Dip 1 Dip 2 Dip 3 Dip 4 NAC infotainments Set all 4 dips to OFF. After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 8: Installation
Before the final installation, we recommend a test-run of the interface. Due to changes in the production of the vehicle manufacturer, there’s always the possibility of incompatibility. 2.1. Place of installation – video-interface The video-interface is performed to be installed at the head unit’s rear side. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 9: Connection Schema
2.2. Connection schema Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 10: Connection To The Head-Unit
Connector of the 4pin HSD harness to the previously become free double 4pin HSD connector of the head unit. Connect the single waterblue colored 4pin HSD connector of that harness to the waterblue colored 4pin HSD connector of the video interface. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 11: Low Version Head Unit (1 X 4Pin Hsd)
4pin HSD connector at the rearside of the head unit. Connect the waterblue colored female 4pin HSD connector „to interface“ to the waterblue colored 4pin HSD connector of the video interface. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 12: Connection To The Head-Unit - Power / Can
Connect the interface cable’s female 12pin connector to the 12pin connector of the video intzerface. Connect the single purple colored cable „Manual ACC“ of the video interface cable to stabile +12V accessory power. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 13: Connecting Video Sources
Connect the video RCA of the video-source 1 to the female RCA connector “Video IN1” of the video cable. Connect the video RCA of the video-source 2 to the female RCA connector “Video-IN2” of the video cable. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 14: Audio Insertion
The 12 V power supply for the rear-view camera (max 3A) has to be taken from the green wire of the 20pin cable to avoid an unnecessary, permanent power supply to the camera electronic. For the operation, both green cables “Reverse IN” “Reverse OUT” have to remain connected. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 15: Case 2: Video Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 16: Video Signal Connection For The Rear-View Camera
2.4.3.3. Video signal connection for the rear-view camera Connect the video-RCA of the after-market rear-view camera to the female RCA port “Camera-IN” of the video-cable. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 17: Connecting Video-Interface And External Keypad
Connect the keypad’s female 4pin connector to the video-interface’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 18: Picture Settings And Guide Lines
ALL Off: Guide lines and PDC will not be displayed. Note: If the vehicle’s CAN communication does not support the video interface, the guide- lines cannot be used, even if they’re once shown with the first operation! Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 19: Interface Operation
Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. 3.2. By keypad Alternatively or additionally to the infotainment’s “Navi” button, the interface’s enabled inputs can also be switched by the external keypad. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 20: Specifications
300mA @12V Video input 0.7V – 1V Video input formats PAL/NTSC RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions Video-Box 118 x 23 x 105 mm (W x H x D) Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 21: Faq - Trouble Shooting
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker. bluish. removed from camera lens. Version 03.11.2017 HW:CAM-GD (V93) RL3-NAC... -
Page 22: Technical Support
6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. 10R-03 5384 Version 03.11.2017...
