r.LiNK Video-inserter
RL2-N902

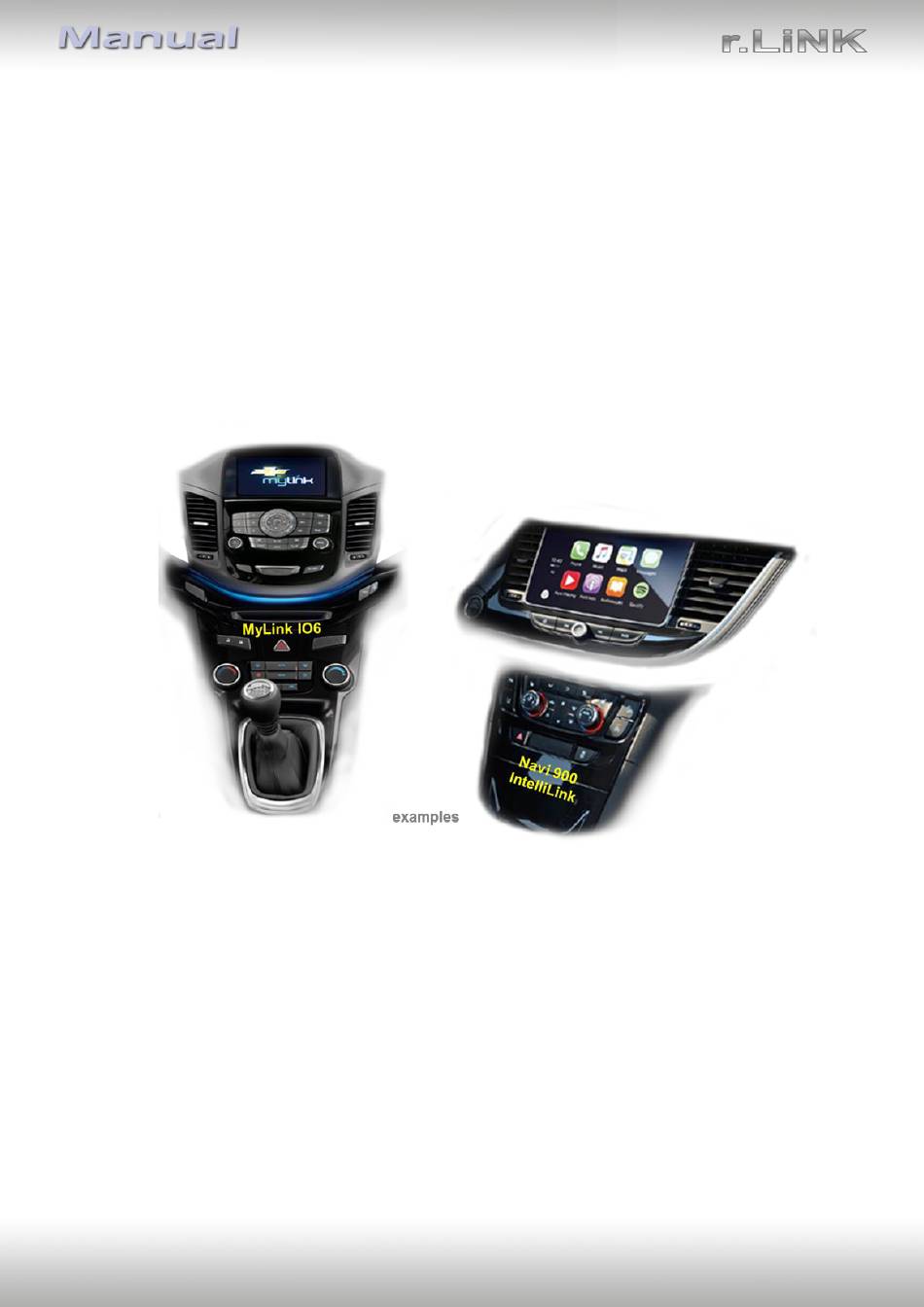

Compatible with Opel vehicles with
Navi 900 intelliLink navigation system
with 8" touch monitor and Chevrolet vehicles
with MyLink IO6 system
Video-inserter for rear-view camera input
and two additional video sources
Product features
• Video-inserter for factory-infotainment systems
• 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
• FBAS Rear-view camera video-input
• Automatic switching to rear-view camera input on engagement of the reverse gear
• Activatable parking guide lines for rear-view camera (not available on all vehicles)
• Video-in-motion in drive mode (ONLY for connected video-sources)
• Video inputs NTSC and PAL compatible
Version 15.10.2018
HW: CAM(V31(V50)
RL2-N902
Advertisement
Related Manuals for NavLinkz r.LiNK RL2-N902
Summary of Contents for NavLinkz r.LiNK RL2-N902
- Page 1 r.LiNK Video-inserter RL2-N902 Compatible with Opel vehicles with Navi 900 intelliLink navigation system with 8” touch monitor and Chevrolet vehicles with MyLink IO6 system Video-inserter for rear-view camera input and two additional video sources Product features • Video-inserter for factory-infotainment systems •...
- Page 2 Contents 1. Prior to installation 1.1. Delivery contents 1.2. Checking the compatibility of vehicle and accessories 1.3. Connectors – video interface 1.4. Dip-switch settings – video interface 1.4.1. Enabling the interface’s video inputs (dip 2-3) 1.4.2. Rear-view camera setting (dip 5) 1.4.3.
- Page 3 Legal Information By law, watching moving pictures while driving is prohibited, the driver must not be distracted. We do not accept any liability for material damage or personal injury resulting, directly or indirectly, from installation or operation of this product. This product should only be used while standing or to display fixed menus or rear-view-camera video when the vehicle is moving, for example the MP3 menu for DVD upgrades.
- Page 4 1.2. Checking the compatibility of vehicle and accessories Compatibility Brand Compatible vehicles infotainment systems Astra K (Sports Tourer und 5-Türer)- Modelljahre ab 2016 Navi 900 intelliLink with 8inch Opel Insignia A Modelljahre 2014-2016 touch monitor (Gen. 1 und 2) Insignia B Modelljahre ab 2017, Mokka X Modelljahre ab 2016 Camaro from model year 2016 MyLink IO6 with 8inch monitor...
- Page 5 1.3. Connectors – video interface The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. 1.4. Dip-switch settings – video interface Some settings must be selected by the dip-switches on the video-interface.
- Page 6 1.4.1. Enabling the interface’s video inputs (dip 2-3) Only the enabled video inputs can be accessed when switching through the interface’s video sources. It is recommended to enable only the required inputs, disabled inputs will be skipped when switching through the video-interfaces inputs. 1.4.2.
- Page 7 2. Installation To install the interface, first switch off the ignition and disconnect the vehicle’s battery. Please read the owner`s manual of the car, regarding the battery`s disconnection! If required, enable the car`s Sleep-mode (hibernation mode) In case the sleep-mode does not succeed, the disconnection of the battery can be done with a resistor lead.
- Page 8 2.2. Connection schema Version 15.10.2018 HW: CAM(V31(V50) RL2-N902...
- Page 9 2.3. Connection - PNP Power / CAN cable Connect the female 6pin connector of the 6 to 12pin cable to the 6pin connector of the video interface. Connect the female 8pin connector of the communication cable to the 8pin connector of the video interface.
- Page 10 2.4. Connection – picture signal cable Remove the female Mini USB connector from the rearside of the blackbox and connect it to the male black Mini USB connector of the picture signal cable. Connect the female black colored Mini USB connector of the picture signal cable to the previously become free male Mini USB connector at the rearside of the blackbox Version 15.10.2018 HW: CAM(V31(V50)
- Page 11 2.5. Connecting video sources It is possible to connect one after-market rear-view camera and two more Video sources to the video-interface. Note: Before the final installation, we recommend a test-run to ensure the compatibility of the vehicle and the interface. Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility.
- Page 12 2.5.1. After-market rear-view camera Some vehicles have a different reverse gear code on the CAN-bus which the included CAN- box is not compatible with. In this case there are two different ways of installation. If the CAN-box is able to detect an enabled vehicle’s reverse gear, the green wire of the 6pin to 12pin cable should carry +12V while the reverse gear is engaged.
- Page 13 2.5.1.2. Case 2: CAN-box does not receive the reverse gear signal If the CAN-bus interface does not deliver +12V on the green wire of the 6pin to 12pin cable when reverse gear is engaged (not all vehicles are compatible) an external switching signal from the reverse gear light is required.
- Page 14 2.5.2. Audio Insertion This interface can only insert video signals into the factory infotainment. If an AV-source is connected, audio insertion must be done by factory audio AUX input or FM-modulator. The inserted video-signal can be activated simultaneously to each audio-mode of the factory infotainment.
- Page 15 2.7. Picture settings and guide lines The picture settings are adjusted by the 3 buttons on the video-interface. Press the MENU button to open the OSD settings menu or to switch to the next menu item. Press UP and DOWN changes the selected value. The buttons are embedded in the housing to avoid accidental changes during or after the installation.
- Page 16 3. Switching the video sources By infotainment button 3.1. Switching the video sources can be done by pressing the vehicle’s „Call-off“ button. Each press will switch to the next enabled input. If all inputs are enabled the order is: → →...
- Page 17 By external keypad 3.2. The interface’s keypad can be used to execute interface functions. Short press keypad to switch the video-source. Each repetition will switch to the next enabled input. Inputs which are not enabled are skipped. Note: Alternatively or additionally, the white wire of the 6pin cable can be used with a +5- 12V pulse to switch the video-sources alternatively.
- Page 18 FAQ – Trouble shooting Interface functions For any troubles which may occur, check the following table for a solution before requesting support from your vendor. Symptom Reason Possible solution Not all connectors have been reconnected to factory head- Connect missing connectors. unit or monitor after installation.
- Page 19 6pin to 8pin cable and isolate both ends. Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH...
