π
H-1978

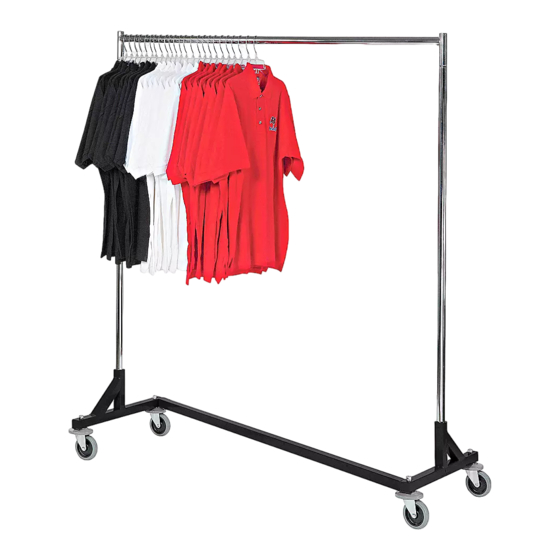

Z-RACK
TOOL INCLUDED
Allen Wrench
Horizontal Hang Bar x 1
Vertical Bar x 2
Frame Cross Bar x 1
1. Remove the included washers
and bolts from the frames,
using the included Allen
wrench. (See Figure 1)
Figure 1
PAGE 1 OF 2
1-800-295-5510
uline.com
Crescent Wrench
ASSEMBLY INSTRUCTIONS
2. Slide the frame and the frame
cross bar together, aligning the
bolt holes. (See Figure 2)
Figure 2
PARTS LIST
Caster Bumper x 4
Caster x 4
Frame x 2
Bolt x 4
Nut x 4
Washer x 4
3. Insert bolts into aligned bolt
holes, placing the washers
between the frame and bolt.
Tighten using included Allen
wrench. (See Figure 3)
Figure 3
0313 IH-1978
Advertisement
Related Manuals for U-Line H-1978
Summary of Contents for U-Line H-1978
- Page 1 π H-1978 1-800-295-5510 uline.com Z-RACK TOOL INCLUDED Allen Wrench Crescent Wrench PARTS LIST Horizontal Hang Bar x 1 Caster Bumper x 4 Caster x 4 Bolt x 4 Vertical Bar x 2 Nut x 4 Washer x 4 Frame x 2...
- Page 2 ASSEMBLY INSTRUCTIONS CONTINUED 4. Place rubber bumpers on 6. Insert the vertical support bars 7. Slide horizontal hang bar on to casters with concave side into the frame. (See Figure 5) top of the vertical support bars toward caster. and lock into place. (See Figure 6) 5.
