U-Line H-11489 Manual

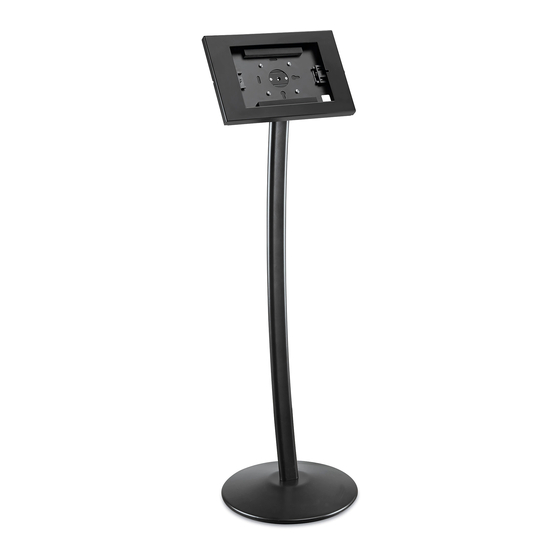

Pedestal tablet holder
Hide thumbs

Advertisement

Available languages

Available languages

Table of Contents

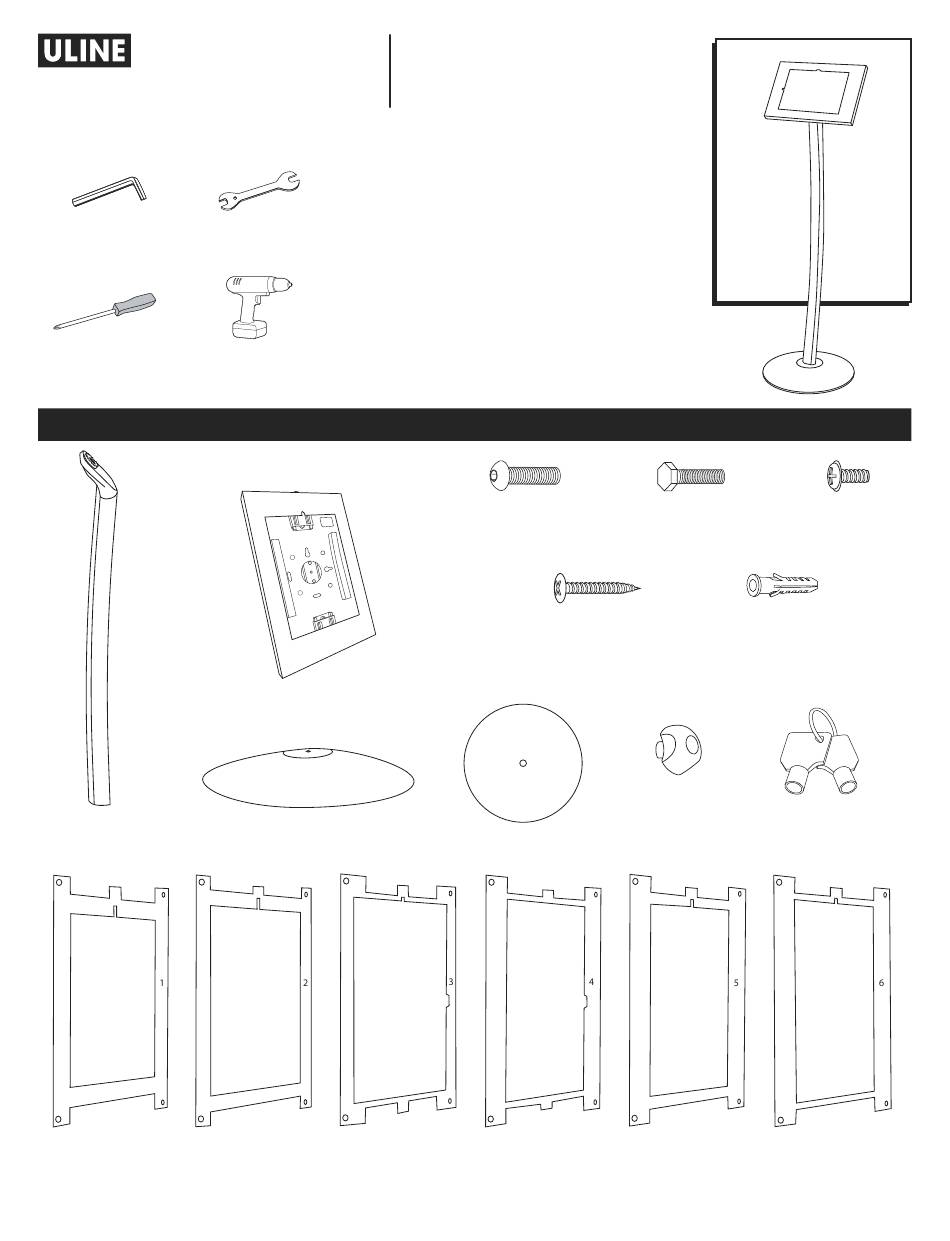

H-11489
PEDESTAL TABLET HOLDER
TOOLS NEEDED
5 mm Allen Wrench
17 mm Wrench
(included)
Phillips
Screwdriver
(for optional wall mounting)
Post x 1
Panel 1
Panel 2
¥ 9.7" iPad 5, 6
¥ 10.2" iPad 7, 8, 9
¥ iPad Air 1, 2
¥ 10.5" iPad Air 3
¥ iPad Pro Gen 1
¥ iPad Pro Gen 2
PAGE 1 OF 15
(included)
Drill
Tablet Holder x 1
Base x 1
Panel 3
¥ 11" iPad Pro Gen 3, 4, 5
¥ 10.9" iPad Air 4
¥ 10.9" iPad 10
1-800-295-5510
uline.com
PARTS
Galvanized
M6 x 25 mm Screw x 2
ST4.6 x 30 mm Screw x 4
(for optional wall mounting)
Weight x 1
Panel 4
¥ 10.4" Samsung
Galaxy Tab A7
Para Español, vea páginas 6-10.
Pour le français, consulter les pages 11-15.
Galvanized
M10 x 30 mm Screw x 1
6 x 30 mm
Drywall Anchor x 4
(for optional wall mounting)
Nut x 1
Set of Keys x 1
Panel 5
¥ 10.1" Samsung
Galaxy Tab A
M4 x 12 mm
Screw x 4
Panel 6
¥ 10.4" Samsung
Galaxy Tab S6
0624 IH-11489

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-11489 and is the answer not in the manual?

Questions and answers

Related Manuals for U-Line H-11489

Summary of Contents for U-Line H-11489

  • Page 1 Para Español, vea páginas 6-10. Pour le français, consulter les pages 11-15. H-11489 1-800-295-5510 uline.com PEDESTAL TABLET HOLDER TOOLS NEEDED 5 mm Allen Wrench 17 mm Wrench (included) (included) Phillips Drill Screwdriver (for optional wall mounting) PARTS Galvanized M4 x 12 mm...
  • Page 2 ASSEMBLY Insert charging cable 5. Position post on top of Figure 5 through post. base. (See Figure 5) (See Figure 1) Figure 1 6. Tighten screws with 2. Thread cable through Figure 6 Allen wrench. and out bottom of (See Figure 6) post.
  • Page 3 ASSEMBLY CONTINUED 11. Attach nut to screw. 16. Adjust clips on top and bottom of tablet holder to (See Figure 9) secure tablet. (See Figure 13) 12. Tighten the nut. Figure 9 13. Unlock holder with key. (See Figure 10) Figure 13 Figure 10 17.
  • Page 4 ASSEMBLY CONTINUED 20. Place cover into slots 22. Close cover. under tablet holder. 23. Lock tablet holder. (See Figure 18) (See Figure 16) Figure 18 Figure 16 21. Adjust the cover in the slots for proper alignment and fit. (See Figure 17) Figure 17 POSITIONS Loosen knob slightly on back of tablet holder to rotate and adjust position.

  • Page 5: Optional Wall Mounting

    OPTIONAL WALL MOUNTING Undo screws on the back of the tablet holder. 4. Drill the screw holes. Remove the square piece. (See Figures 19-20) (See Figure 22) Figure 19 Front View Figure 22 5. Place 6 x 30 mm drywall anchors in the holes.

  • Page 6: Herramientas Necesarias

    H-11489 800-295-5510 uline.mx BASE DE PEDESTAL PARA TABLETA HERRAMIENTAS NECESARIAS Llave Allen de 5 mm Llave Inglesa de 17 mm (incluida) (incluida) Desarmador Taladro de Cruz (para instalación opcional en pared) PARTES 2 Tornillos Galvanizados 4 Tornillos 1 Tornillo Galvanizado...
  • Page 7 ENSAMBLE Inserte el cable 5. Coloque el poste Diagrama 5 de carga a través encima de la base. del poste. (Vea Diagrama 5) (Vea Diagrama 1) Diagrama 1 2. Pase el cable por 6. Apriete los tornillos Diagrama 6 el poste y sáquelo con la llave Allen.
  • Page 8 CONTINUACIÓN DEL ENSAMBLE 11. Fije la perilla 16. Ajuste los clips en la parte superior e inferior de al tornillo. la base para tableta para asegurarla. (Vea Diagrama 9) (Vea Diagrama 13) 12. Apriete la tuerca. Diagrama 9 13. Libere la base para tableta con la llave. (Vea Diagrama 10) Diagrama 13 Diagrama 10...
  • Page 9 CONTINUACIÓN DEL ENSAMBLE 20. Coloque la cubierta en 22. Cierre la cubierta. las ranuras debajo de 23. Bloquee la base para tableta. (Vea Diagrama 18) la base para tableta. (Vea Diagrama 16) Diagrama 18 Diagrama 16 21. Posicione la cubierta en las ranuras para el alineamiento y ajuste adecuado.
  • Page 10 INSTALACIÓN EN PARED OPCIONAL Remueva los tornillos en la parte posterior de la 4. Perfore los orificios base para tableta. Retire la pieza cuadrada. para tornillos. (Vea Diagramas 19-20) (Vea Diagrama 22) Diagrama 19 Vista Frontal Diagrama 22 5. Coloque taquetes para panel de yeso de 6 x 30 mm en los orificios.

  • Page 11: Outils Requis

    H-11489 1 800 295-5510 uline.ca SUPPORT DE TABLETTE SUR PIED OUTILS REQUIS Clé Allen de 5 mm Clé de 17 mm (inclus) (inclus) Tournevis Perceuse cruciforme (optionnel pour fixation murale) PIÈCES Vis galvanisée Vis M4 x 12 mm x 4 Vis galvanisée M6 x 25 mm x 2 M10 x 30 mm x 1 Vis ST4.6 x 30 mm x 4...

  • Page 12: Montage

    MONTAGE Insérez le câble 5. Placez le poteau Figure 5 de recharge dans sur la base. le poteau. (Voir Figure 5) (Voir Figure 1) Figure 1 2. Faites passer le câble 6. Serrez les vis avec Figure 6 par le bas du poteau. la clé...
  • Page 13 MONTAGE SUITE 11. Fixez l'écrou à la vis. 16. Ajustez les pinces en haut et en bas du support de (Voir Figure 9) tablette pour fixer la tablette. (Voir Figure 13) 12. Serrez l'écrou. Figure 9 13. Déverrouillez le support avec l'une des clés. (Voir Figure 10) Figure 13 Figure 10...
  • Page 14 MONTAGE SUITE 20. Placez le couvercle 22. Fermez le couvercle. dans les fentes sous 23. Verrouillez le support de tablette. (Voir Figure 18) le support de tablette. (Voir Figure 16) Figure 18 Figure 16 21. Ajustez le couvercle dans les fentes pour un bon alignement et un bon ajustement.
  • Page 15 FIXATION MURALE (OPTIONNEL) Desserrez les vis à l'arrière du support de tablette. 4. Percez les trous pour Retirez la pièce carrée. (Voir Figures 19 et 20) les vis. (Voir Figure 22) Figure 19 Vue avant Figure 22 5. Insérez les ancrages de cloison sèche de 6 x 30 mm dans les trous.
