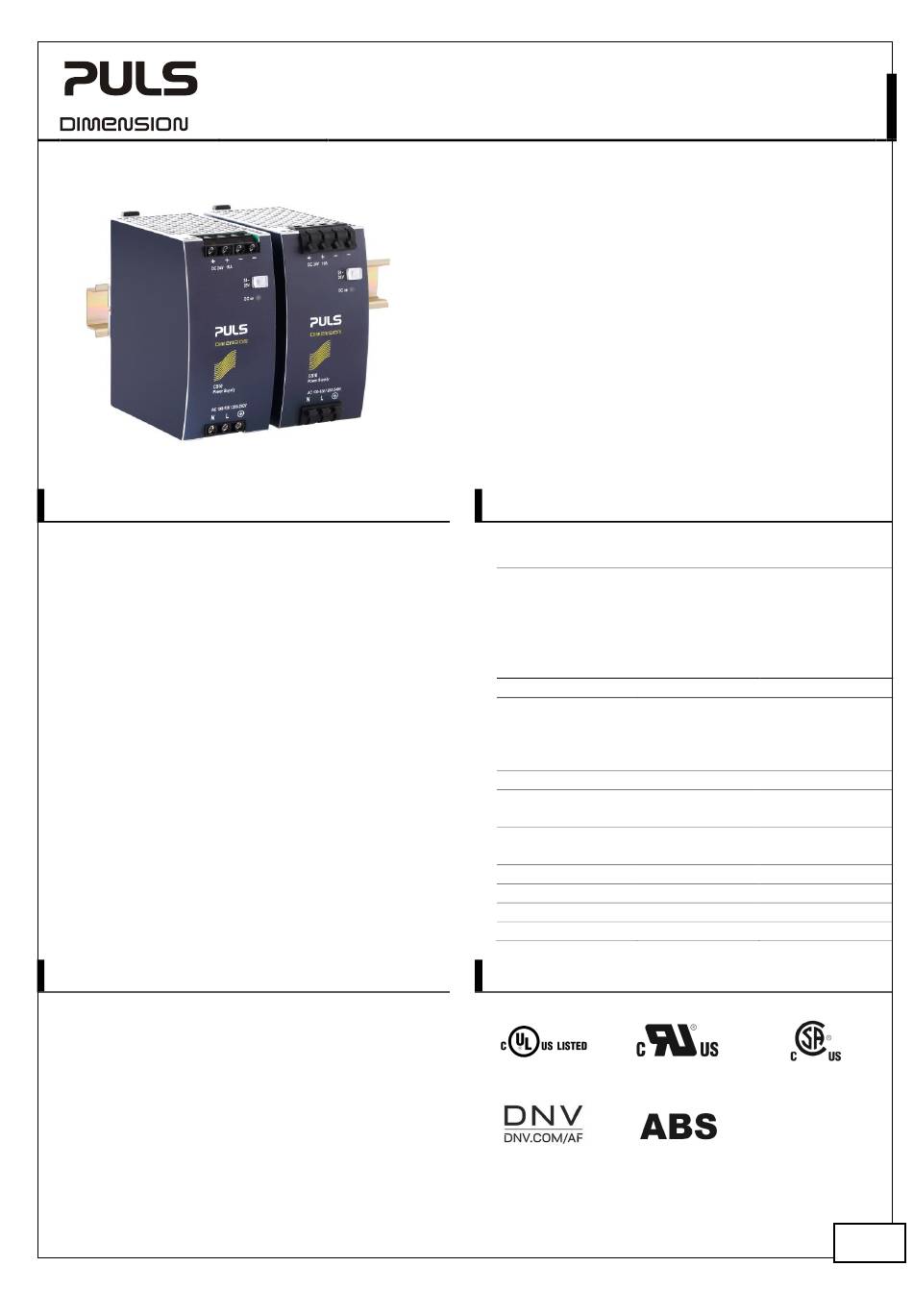

Puls DIMENSION CS Series Manual

CS-Series
P D
RODUCT ESCRIPTION

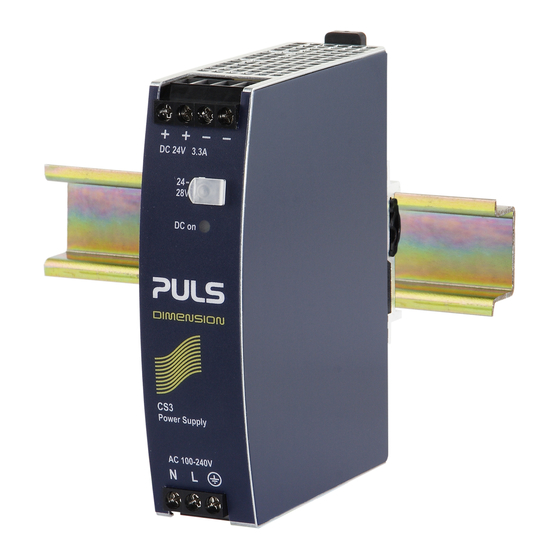

The DIMENSION CS-Series units are cost optimized power
supplies without compromising
performance. The CS-Series is part of the DIMENSION power
supply family, existing alongside the high featured Q-Series.
The CS10.241 includes all the essential basic functions. The
devices also offer PowerBoost: Power reserves of 20%, which
may even be used continuously at temperatures up to +45°C.
The most important features are the small size, high efficiency
and the wide temperature range.
The Auto-select input makes worldwide installation and usage
very simple. Defects or system failures caused by wrongly set
switches cannot occur.
High immunity to transients and power surges as well as low
electromagnetic emission and a large international approval
package for a variety of applications makes this unit suitable for
nearly every situation.
O N
RDER UMBERS
Power Supply CS10.241
CS10.241-S1
Accessory ZM1.WALL
ZM13.SIDE
YRM2.DIODE
YR40.241
Aug. 2022 / Rev. 2.1 DS-CS10.241-EN
All parameters are specified at 24V, 10A, 230Vac, 50Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
quality, reliability and
24-28V Standard unit
Version with quick-
connect spring-clamp
terminals
Wall mount bracket
Side mount bracket
Redundancy module
Redundancy module
www.pulspower.com Phone +49 89 9278 0 Germany
CS10.241, CS10.241-S1
24V, 10A, 240W S
P S
OWER UPPLY
▪ AC 100-120 / 200-240V Auto-select Input
▪ Width only 60mm
▪ Optional with Spring-clamp Terminals (CS10.241-S1)
▪ Efficiency up to 91.6%
▪ Easy Fuse Breaking due to High Overload Peak Current
▪ 20% Output Power Reserves (PowerBoost)
▪ Full Power Between -25°C and +60°C
▪ Minimal Inrush Current Surge
▪ 3 Year Warranty
S - D
HORT FORM ATA
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 10A
8.6A
Derate linearly between +60°C and +70°C
PowerBoost 12A
Linear decrease to nominal power
between +45°C and +60°C
Output ripple < 50mVpp
AC Input voltage AC 100-120V /
200-240V
Mains frequency 50-60Hz
AC Input current 3.73 / 2.23A
DC Input voltage -
Power factor 0.59 / 0.51
AC Inrush current 3 / 3A peak
Efficiency 91.0 / 91.6%
Losses 23.7 / 22.0W
Temperature range -25°C to +70°C
Hold-up time 46 / 47ms
Dimensions 60x124x117mm
Weight 700g
M A
AIN PPROVALS
For details and the complete approval list, see chapter 18.
UL 508
Marine
P I
INGLE HASE
up to +60°C ambient
at +70°C ambient
up to +45°C ambient
20Hz to 20MHz
±10%
Auto-select input
±6%
at 120 / 230Vac
not allowed
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
operational
at 120 / 230Vac
WxHxD
UL 60950-1 Class I Div 2
Marine
NPUT
1/27
