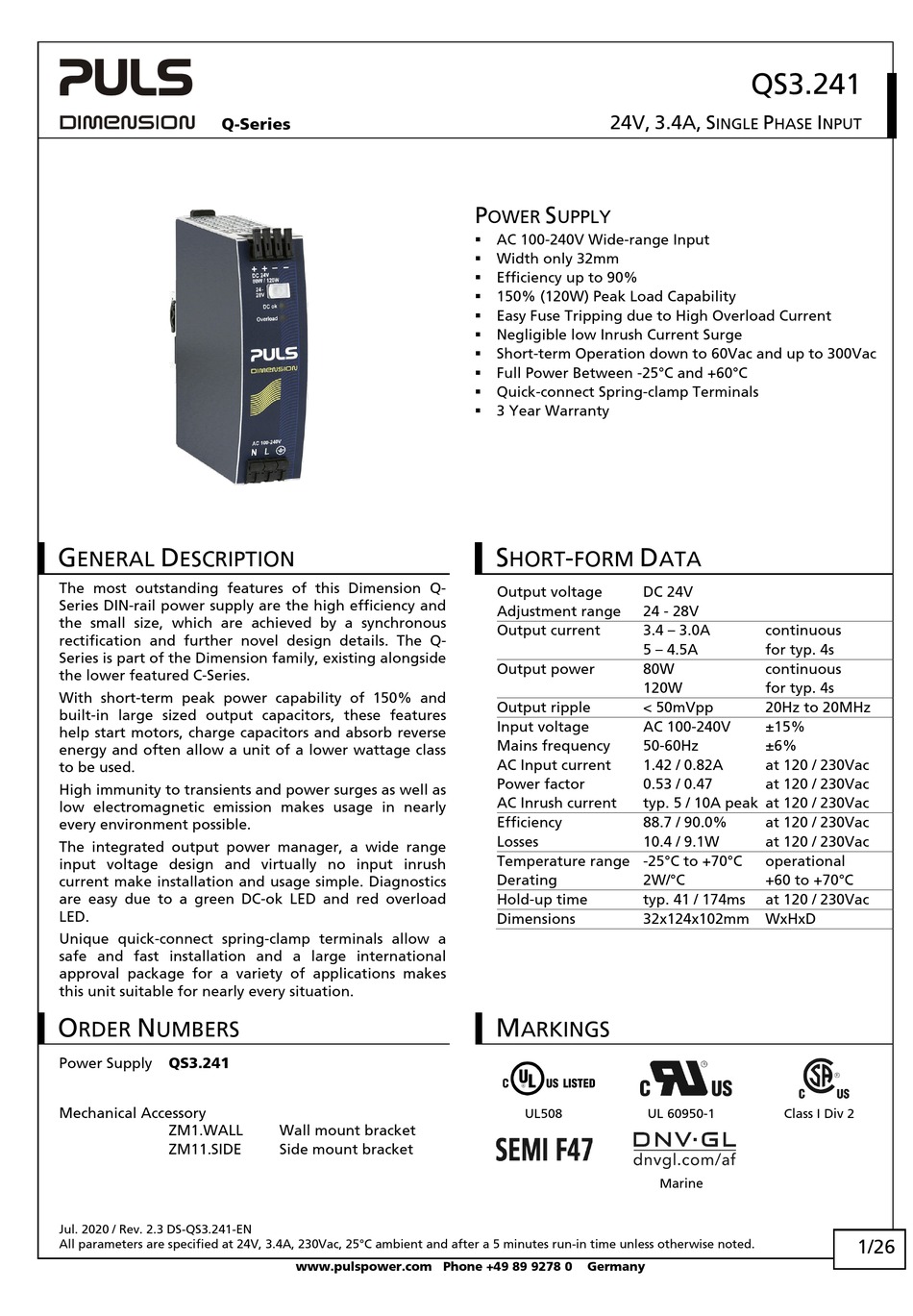

Q-Series
G D
ENERAL ESCRIPTION

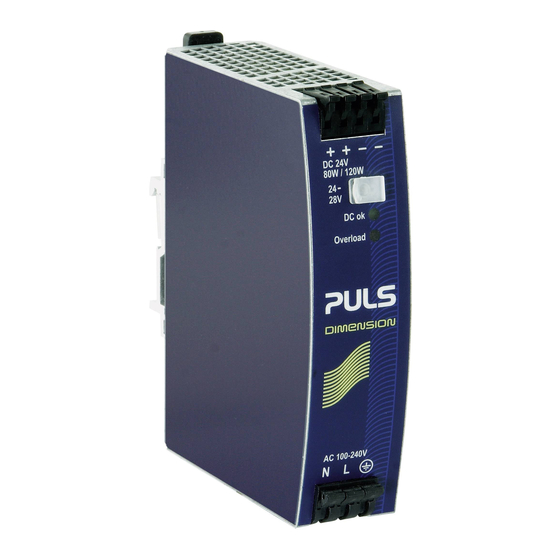

The most outstanding features of this Dimension Q-
Series DIN-rail power supply are the high efficiency and
the small size, which are achieved by a synchronous
rectification and further novel design details. The Q-
Series is part of the Dimension family, existing alongside
the lower featured C-Series.
With short-term peak power capability of 150% and
built-in large sized output capacitors, these features
help start motors, charge capacitors and absorb reverse
energy and often allow a unit of a lower wattage class
to be used.
High immunity to transients and power surges as well as
low electromagnetic emission makes usage in nearly
every environment possible.
The integrated output power manager, a wide range
input voltage design and virtually no input inrush
current make installation and usage simple. Diagnostics
are easy due to a green DC-ok LED and red overload
LED.
Unique quick-connect spring-clamp terminals allow a
safe and fast installation and a large international
approval package for a variety of applications makes
this unit suitable for nearly every situation.
O N
RDER UMBERS
Power Supply QS3.241
Mechanical Accessory
ZM1.WALL
ZM11.SIDE
Jul. 2020 / Rev. 2.3 DS-QS3.241-EN
All parameters are specified at 24V, 3.4A, 230Vac, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
Wall mount bracket
Side mount bracket
www.pulspower.com Phone +49 89 9278 0
24V, 3.4A, S
P S
OWER UPPLY
 AC 100-240V Wide-range Input
 Width only 32mm
 Efficiency up to 90%
 150% (120W) Peak Load Capability
 Easy Fuse Tripping due to High Overload Current
 Negligible low Inrush Current Surge
 Short-term Operation down to 60Vac and up to 300Vac
 Full Power Between -25°C and +60°C
 Quick-connect Spring-clamp Terminals
 3 Year Warranty
S - D
HORT FORM
Output voltage DC 24V
Adjustment range 24 - 28V
Output current 3.4 – 3.0A
5 – 4.5A
Output power 80W
120W
Output ripple < 50mVpp
Input voltage AC 100-240V
Mains frequency 50-60Hz
AC Input current 1.42 / 0.82A
Power factor 0.53 / 0.47
AC Inrush current typ. 5 / 10A peak at 120 / 230Vac
Efficiency 88.7 / 90.0%
Losses 10.4 / 9.1W
Temperature range -25°C to +70°C
Derating 2W/°C
Hold-up time typ. 41 / 174ms
Dimensions 32x124x102mm
M
ARKINGS
UL508
Germany
QS3.241
P I
INGLE HASE
ATA
continuous
for typ. 4s
continuous
for typ. 4s
20Hz to 20MHz
±15%
±6%
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
at 120 / 230Vac
operational
+60 to +70°C
at 120 / 230Vac
WxHxD
UL 60950-1 Class I Div 2
Marine
NPUT
