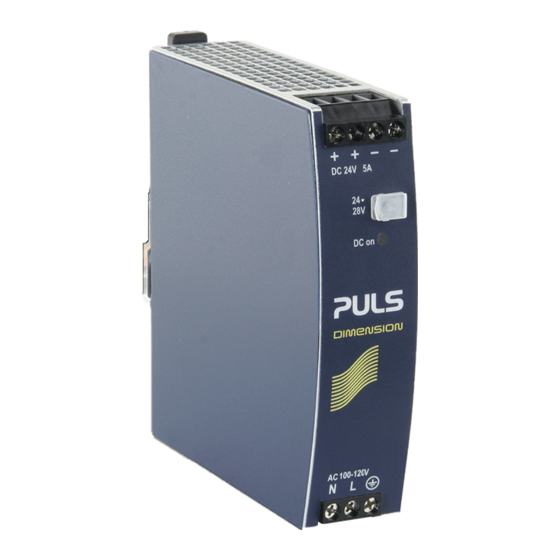

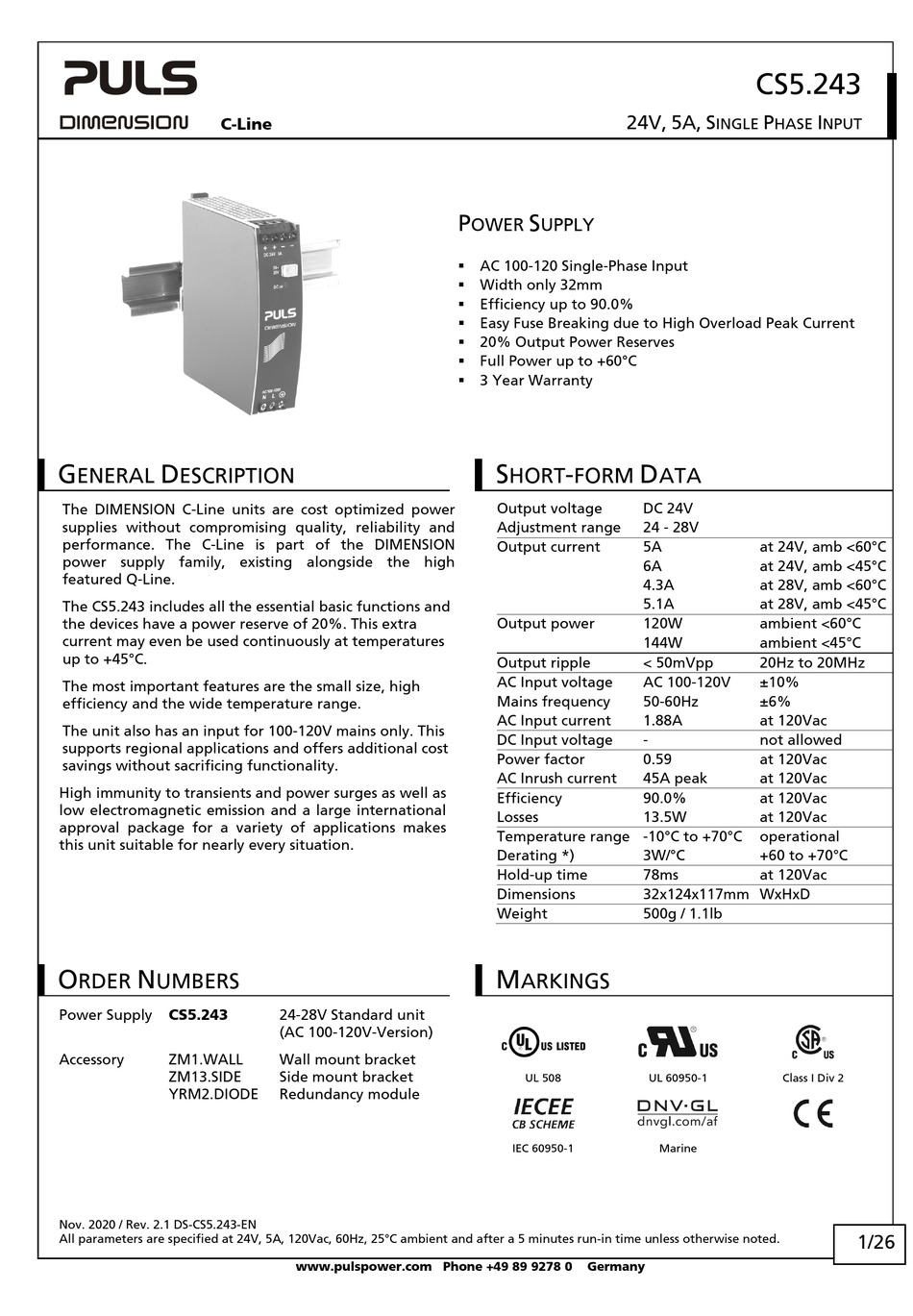

Puls DIMENSION C-Line CS5.243 Manual

C-Line
G D
ENERAL ESCRIPTION
The DIMENSION C-Line units are cost optimized power
supplies without compromising quality, reliability and
performance. The C-Line is part of the DIMENSION
power supply family, existing alongside the high
featured Q-Line.
The CS5.243 includes all the essential basic functions and
the devices have a power reserve of 20%. This extra
current may even be used continuously at temperatures
up to +45°C.
The most important features are the small size, high
efficiency and the wide temperature range.
The unit also has an input for 100-120V mains only. This
supports regional applications and offers additional cost
savings without sacrificing functionality.
High immunity to transients and power surges as well as
low electromagnetic emission and a large international
approval package for a variety of applications makes
this unit suitable for nearly every situation.
O N
RDER UMBERS
CS5.243
Power Supply
Accessory ZM1.WALL
ZM13.SIDE
YRM2.DIODE
Nov. 2020 / Rev. 2.1 DS-CS5.243-EN
All parameters are specified at 24V, 5A, 120Vac, 60Hz, 25°C ambient and after a 5 minutes run-in time unless otherwise noted.
24-28V Standard unit
(AC 100-120V-Version)
Wall mount bracket
Side mount bracket
Redundancy module
www.pulspower.com Phone +49 89 9278 0
24V, 5A, S
P S
OWER UPPLY
 AC 100-120 Single-Phase Input
 Width only 32mm
 Efficiency up to 90.0%
 Easy Fuse Breaking due to High Overload Peak Current
 20% Output Power Reserves
 Full Power up to +60°C
 3 Year Warranty
S -
HORT FORM
Output voltage
Adjustment range
Output current
Output power
Output ripple
AC Input voltage
Mains frequency
AC Input current
DC Input voltage
Power factor
AC Inrush current
Efficiency
Losses
Temperature range -10°C to +70°C
Derating *)
Hold-up time
Dimensions
Weight
M
ARKINGS
UL 508
IEC 60950-1
Germany
CS5.243
P
INGLE HASE
D
ATA
DC 24V
24 - 28V
5A at 24V, amb <60°C
6A at 24V, amb <45°C
4.3A at 28V, amb <60°C
5.1A at 28V, amb <45°C
120W ambient <60°C
144W ambient <45°C
< 50mVpp 20Hz to 20MHz
AC 100-120V ±10%
50-60Hz ±6%
1.88A at 120Vac
- not allowed
0.59 at 120Vac
45A peak at 120Vac
90.0% at 120Vac
13.5W at 120Vac
operational
3W/°C +60 to +70°C
78ms at 120Vac
32x124x117mm WxHxD
500g / 1.1lb
UL 60950-1 Class I Div 2
Marine
I
NPUT
1/26
