OMI Operations Manual

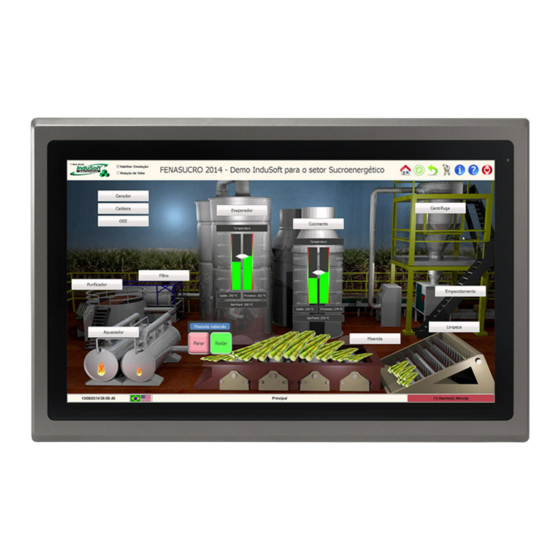

OMI6900 Light Industrial Panel PC Series
Your Industrial Control Solutions Source
Maple Systems, Inc. | 808 134
_____________________
www.maplesystems.com
th
St. SW, Suite 120, Everett, WA 98204 | 425.745.3229
For use with the following:
• OMI6912A
• OMI6915A
• OMI6916A
• OMI6918A
•
OMI6921A
Advertisement
Table of Contents
Related Manuals for Maple Systems OMI6912A
Summary of Contents for Maple Systems OMI6912A
- Page 1 OMI6900 Light Industrial Panel PC Series Your Industrial Control Solutions Source _____________________ www.maplesystems.com For use with the following: • OMI6912A • OMI6918A • OMI6915A • OMI6921A • OMI6916A Maple Systems, Inc. | 808 134 St. SW, Suite 120, Everett, WA 98204 | 425.745.3229...
-
Page 2: Table Of Contents
TABLE OF CONTENTS COPYRIGHT NOTICE ........................2 WARRANTY...........................2 TECHNICAL SUPPORT ........................3 UNPACKING THE UNIT ........................3 SAFETY PRECAUTIONS ......................4 DIMENSIONS AND SPECIFICATIONS..................5 OMI6912A Dimensions.............................5 OMI6912A Specifications ............................6 OMI6915A Dimensions.............................7 OMI6915A Specifications ............................8 OMI6916A Dimensions.............................9 OMI6916A Specifications ............................10 OMI6918A Dimensions............................11 OMI6918A Specifications ............................12 OMI6921A Dimensions............................13 OMI6921A Specifications ............................14... -
Page 3: Copyright Notice
OMI Operations Manual: OMI6900 Series COPYRIGHT NOTICE This manual is a publication of Maple Systems, Inc., and is provided for use by its customers only. The contents of the manual are copyrighted by Maple Systems, Inc.; reproduction in whole or in part, for use other than in support of Maple Systems equipment is prohibited without the specific written permission of Maple Systems. -
Page 4: Safety Precautions
OMI Operations Manual: OMI6900 Series SAFETY PRECAUTIONS Please observe the following precautions when installing the OMI6900 Series Open HMIs. Failure to comply with these restrictions could result in loss of life, serious personal injury, or equipment damage. Warning: Disconnect this equipment from any power before cleaning. Do not use liquid or spray detergents for cleaning. -
Page 5: Dimensions And Specifications
OMI Operations Manual: OMI6900 Series DIMENSIONS AND SPECIFICATIONS The following section contains the Dimensions and Specifications for the OMI6900 series Light Industrial Panel PCs. OMI6912A Dimensions Power Connector VESA 100 x 100 mm Screw Holes Line Out Remote Power Switch Connector USB 3.0 Host Ports... -
Page 6: Omi6912A Specifications
System Microsoft Windows© 10 IoT Enterprise 2019 LTSC 64-bit (PKEA) * Additional SSD options available; contact Maple Systems for details. For Microsoft Windows 10 IoT 2016 LTSB Operating System, contact Maple Systems Sales. Notes Specifications subject to change without notice... -
Page 7: Omi6915A Dimensions
OMI Operations Manual: OMI6900 Series OMI6915A Dimensions Power Connector VESA 100 x 100 mm Screw Holes Line Out Remote Power Switch Connector USB 3.0 Host Ports Gigabit Ethernet Ports DE9P COM Port OMI Operations Manual: OMI6900 Series... -
Page 8: Omi6915A Specifications
Microsoft Windows© 10 IoT Enterprise 2019 LTSC 64-bit (PKEA) * Additional SSD options available; contact Maple Systems for details ** For Microsoft Windows 10 IoT 2016 LTSB Operating System, contact Maple Systems Sales. Notes Specifications subject to change without notice... -
Page 9: Omi6916A Dimensions
OMI Operations Manual: OMI6900 Series OMI6916A Dimensions Power Connector VESA 100 x 100 mm Screw Holes Line Out Remote Power Switch Connector USB 3.0 Host Ports Gigabit Ethernet Ports DE9P COM Port OMI Operations Manual: OMI6900 Series... -
Page 10: Omi6916A Specifications
Microsoft Windows© 10 IoT Enterprise 2019 LTSC 64-bit (PKEA) * Additional SSD options available; contact Maple Systems for details. ** For Microsoft Windows 10 IoT 2016 LTSB Operating System, contact Maple Systems Sales. Notes Specifications subject to change without notice. -
Page 11: Omi6918A Dimensions
OMI Operations Manual: OMI6900 Series OMI6918A Dimensions Power Connector VESA 100 x 100 mm Screw Holes Line Out Remote Power Switch Connector USB 3.0 Host Ports Gigabit Ethernet Ports DE9P COM Port OMI Operations Manual: OMI6900 Series... -
Page 12: Omi6918A Specifications
Microsoft Windows© 10 IoT Enterprise 2019 LTSC 64-bit (PKEA) * Additional SSD options available; contact Maple Systems tor details. ** For Microsoft Windows 10 IoT 2016 LTSB Operating System, contact Maple Systems Sales. Notes Specifications subject to change without notice. -
Page 13: Omi6921A Dimensions
OMI Operations Manual: OMI6900 Series OMI6921A Dimensions Power Connector VESA 100 x 100 mm Screw Holes Line Out Remote Power Switch Connector USB 3.0 Host Ports Gigabit Ethernet Ports DE9P COM Port OMI Operations Manual: OMI6900 Series... -
Page 14: Omi6921A Specifications
Microsoft Windows© 10 IoT Enterprise 2019 LTSC 64-bit (PKEA) * Additional SSD options available; contact Maple Systems tor details. ** For Microsoft Windows 10 IoT 2016 LTSB Operating System, contact Maple Systems Sales. Notes Specifications subject to change without notice. -
Page 15: Overview Of Omi6900 Series
OMI Operations Manual: OMI6900 Series OVERVIEW OF OMI6900 SERIES The OMI6900 Series is available in 12.1”, 15”, 15.6”, 18.5”, and 21.5” screen sizes. The OMI6900 is a compact flat panel touch screen and is powered by the Intel 4th Gen Core i5 CPU processor with built-in 8GB DDR3L 1600MHz. -
Page 16: Rear View Of Omi6915
OMI Operations Manual: OMI6900 Series Rear View of OMI6915 Rear View of OMI6916 OMI Operations Manual: OMI6900 Series... -
Page 17: Rear View Of Omi6918
OMI Operations Manual: OMI6900 Series Rear View of OMI6918 Rear View of OMI6921 OMI Operations Manual: OMI6900 Series... -
Page 18: I/O Ports
OMI Operations Manual: OMI6900 Series I/O PORTS COM1 and COM2: Connector Type: DE9P male serial ports. COM1* COM2 Pin # (RS-232 Default) (RS422) (RS485) (RS232) 422_RX+ 422_RX- 422_TX- 485- 422_TX+ 485+ * Refer to “Setting COM1 Function” to set the communication mode. OMI Operations Manual: OMI6900 Series... - Page 19 OMI Operations Manual: OMI6900 Series Line Out: Connector Type: 3.5mm audio jack. Line out HD Audio port can be connected to a headphone or amplifier. USB: OMI6900 models have 2 USB 3.0 type A ports. Note: USB 3.0 allows data transfers up to 5000 Mb/s, full-speed, and low-speed signaling. The current limit is 2.0A LAN1 and LAN2: Standard 10/100/1000M RJ-45 Ethernet ports, LINK LED (green) and ACTIVE LED (yellow) respectively...
-
Page 20: Setting Com1 Function
OMI Operations Manual: OMI6900 Series SETTING COM1 FUNCTION 1. Using a #1 Phillips screwdriver, remove the 2 Phillips screws indicated in the figure. Remove the storage cover by lifting it out of the unit. Using a #1 Phillips screwdriver, remove the 1 screw retaining the storage bracket. - Page 21 OMI Operations Manual: OMI6900 Series The DIP switches are now visible. Reference the “COM1 Function Switch Setting” label and/or the following chart to set the DIP switches to the desired S_422 S_232 RS-232, RS-422, or RS-485 Function (switches 1-5) (all switches) communication mode.
- Page 22 OMI Operations Manual: OMI6900 Series Replace the storage cover and secure it with the screws removed in step 1. Enter the BIOS Setup Utility to select the desire communication mode by pressing [Delete] key during POST. The Main menu containing the system summary information will appear.
- Page 23 OMI Operations Manual: OMI6900 Series 9. Set the “UART1 Mode Selection” to the desired COM1 communication mode as follows: ➢ Advance ➢ F81216 Second Super IO Configuration. ➢ Super IO chip F81216SEC Second IO ➢ Serial Port 0 Configuration ➢ UART1 Mode Selection： •...
- Page 24 OMI Operations Manual: OMI6900 Series 3. Using a #1 Phillips screwdriver, remove the 1 screw retaining the storage bracket. Then carefully slide the bracket out of the unit. 4. The DIP switches and switch settings are now visible. S_422 5. Reference the “COM1 Function Switch Function Setting”...
- Page 25 OMI Operations Manual: OMI6900 Series 6. Slide the bracket and storage device into the OMI, securing it with the screw removed in step 3. 7. Replace the storage cover and secure it with the screws removed in step 1. OMI Operations Manual: OMI6900 Series...
-
Page 26: Vesa Mounting
Tighten the panel bolts with a torque force between 7 ~ 8.5 inch/lbs. to ensure an adequate seal. Torque values outside this range may negate NEMA or IP rating, or cause damage to the unit or panel. Maple Systems is not responsible for damage to unit, mounting surface, or to other components caused by improper mounting. -
Page 27: Driver Installation
Recovery DVD (enclosed with Non-Embedded Operating Systems only) to reinstall Windows as it arrived to you from Maple Systems. You will need to re-activate Windows using the Product Key located on the rear panel of your unit, adjacent to the product label. -
Page 28: Touch Screen
OMI Operations Manual: OMI6900 Series TOUCH SCREEN The OMI6900 Series includes an analog resistive touch screen. An application is pre-loaded onto your OMI6900 Series which allows you to calibrate and change the settings of the touch screen. Touch Screen Calibration The touch screen may need to be recalibrated from time-to-time. -
Page 29: Touch Screen Settings
OMI Operations Manual: OMI6900 Series 3. For Standard Calibration: Click this button and arrows appear pointing to red squares. Use your finger or stylus to touch the red squares in sequence. After the fifth red point calibration is complete. 4. For Advanced Calibration: Click this button and arrows appear pointing to red squares. -
Page 30: Touch Screen Edge Compensation
OMI Operations Manual: OMI6900 Series Beep Mode: • Enable Beep Sound – turns beep function on and off • Beep on Pen Down – beep occurs when pen comes down • Beep on Pen Up – beep occurs when pen is lifted up •... -
Page 31: Operating System Options
OMI Operations Manual: OMI6900 Series OPERATING SYSTEM OPTIONS The OMI6900 series OMIs can be purchased with the following operating systems pre-installed: • Windows 7 Pro For Embedded systems (FES7) • Windows 10 IoT Enterprise 2019 LTSC (ESD) • Windows 10 IoT Enterprise Embedded 2019 LTSC (ESD) Windows 7 Professional for Embedded Systems Windows 7 Professional for Embedded is the same operating system that would be installed on a typical PC. - Page 32 OMI Operations Manual: OMI6900 Series Your Industrial Control Solutions Source _____________________ www.maplesystems.com 1010-1070 Rev. 02 OMI Operations Manual: OMI6900 Series Maple Systems, Inc. | 808 134 St. SW, Suite 120, Everett, WA 98204 | 425.745.3229...
