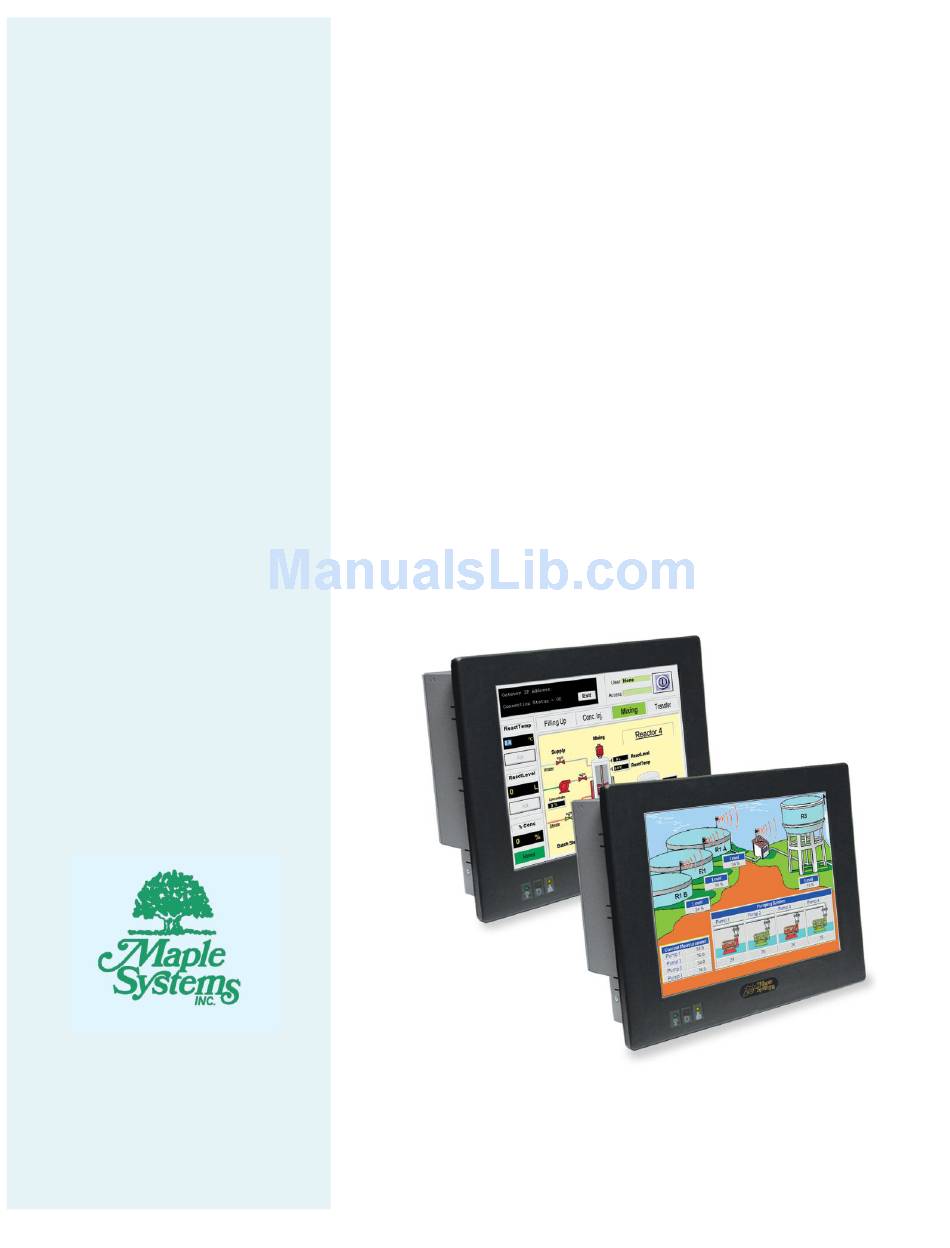

- Page 1 PANEL PC PC100 Series Operation Manual 808 134 Street SW, Suite 120 Everett, WA 98204, USA Phone: 425-745-3229 Fax: 425-745-3429 Email: maple@maplesystems.com www.maplesystems.com 1010-1022 Rev. 01...
-
Page 2: Copyright Notice
COPYRIGHT NOTICE This manual is a publication of Maple Systems, Inc., and is provided for use by its customers only. The contents of the manual are copyrighted by Maple Systems, Inc.; reproduction in whole or in part, for use other than in support of Maple Systems equipment, is prohibited without the specific written permission of Maple Systems. -
Page 3: Table Of Contents
Contents CHAPTER 2 - SYSTEM FEATURES ........11 ABOUT YOUR DOCUMENTATION ........1 ..............11 NCLOSURE ..............1 ONVENTIONS On/Off Switch ............11 PC100 S PC? ........2 HAT IS A ERIES ANEL ......... 11 ICROPROCESSOR AND EMORY XP B ............2 INDOWS ASICS .............. -
Page 4: About Your Documentation
PC100 Series Operation Manual Introduction - Welcome Welcome to the Maple Systems' PC100 Series of Panel PCs. This powerful family of touchscreen Panel PCs can be configured with any Windows XP/2000-compatible HMI software, such as WebStudio, to connect to programmable logic controllers (PLCs) and motion controllers, providing the human-machine interface in industrial applications. -
Page 5: What Is Apc100 Series Panel Pc
What is a PC100 Series Panel PC? The PC100 Series Panel PC is a fully functional computer that is built to withstand the harsh conditions found in industrial environments. Preloaded with Microsoft Windows XP the PC100 Series Panel PC can be configured for industrial automation using most XP-compatible operator interface or SCADA software, such as the industrial automation software, WebStudio. -
Page 6: List Of Features
PC100 Series Operation Manual List of Features The PC100 Series comes in a variety of configurations, and has a whole host of features that make it the ideal open-platform Panel PC for every application: Two Ethernet ports for networking or Internet ... -
Page 7: Chapter 1 - Installation Instructions
NEMA Rating The PC100 Series Panel PCs are rated for NEMA 4 (indoor). This means that when the Panel PC is properly mounted to a panel or other enclosure, the front enclosure of the Panel PC will provide protection to the inside of the panel from splashing water, windblown dust, or hose-directed water. -
Page 8: Fcc Class A Rating
Environmental Considerations The PC100 Series is designed to operate in temperatures from 0-40° C. It is intended for indoor installations and not designed for outdoor applications. Avoid installing the PC100 Series in environments with severe mechanical vibration or shocks. -
Page 9: Control Panel Grounding
The control panel should be connected to a good, high-integrity earth ground both for safety considerations and shielding purposes. Maple Systems cannot overemphasize the importance of good grounding. If you fail to use good grounding procedures during installation, sporadic malfunction of the computer may occur: ... -
Page 10: Connect Panel Pc Chassis Ground To Control Panel
PC100 Series Operation Manual Connect Panel PC Chassis Ground to Control Panel To reduce the possibility of electrical interference, connect the chassis ground terminal of the Panel PC to a clean earth ground. If the control panel is metal, make sure it is properly grounded. Then connect a short heavy-gauge wire (#18 AWG) from the chassis ground terminal of the computer to a mounting bolt on the control panel door. -
Page 11: Installation
It is necessary to follow all installation procedures described in this chapter for electrical noise immunity and CE compliance. Your Maple Systems Panel PC is designed to connect easily to your PLC. External rear connectors provide quick connections for power, communications and programming wiring. - Page 12 PC100 Series Operation Manual Panel/Wall Mounting Instructions Step 1: Lock the Hook Sheet. Step 2: Place the Panel PC in the hole. Step 3: Put the hooks on the hook sheet. Step 4: Lock the hooks by M4 screws and M4 nuts.
- Page 13 PC100 Series Operation Manual CAUTION: Do not over-tighten the screws beyond snugness, or you may damage the housing. REINSTALLATION: Because the gasket will take a “set” to the panel, be sure to reinstall the touchscreen computer to the same panel cutout when a NEMA 4 seal is required. For best results, also replace the gasket itself.
-
Page 14: Chapter 2 - System Features
Chapter 2 - System Features Enclosure On/Off Switch Each PC100 Series Panel PC ON/OFF switch is a toggle located on the unit. Locations for each unit are pictured below. On the toggle switch, - indicates ON and O indicates OFF. PC110C Microprocessor and Memory Standard models of the PC100 Series Panel PCs come with the following microprocessors. -
Page 15: Keyboard Input
PC100 Series Operation Manual Keyboard Input A keyboard can be plugged into one of the PC100 Series Panel PC's keyboard/mouse ports, or USB keyboard and mouse may be plugged into a USB Port. Additionally, Windows XP Professional allows for use of a soft keyboard that can be displayed on the touchscreen display. -
Page 16: Leds
LEDs Two status LEDs are on the front bezel of the PC100 Series Panel PCs. On the PC110C, the status LED is located along the bottom of the bezel. The PC110C also has an additional status LED that indicates Ethernet status. -
Page 17: Serial Ports
PC100 Series Operation Manual Serial Ports The PC110C has two DE9 connectors for serial devices. COM1 is fixed for RS-232. COM2 is selectable for RS232/422/485. The pinouts for each port are below. Restrict cable length to less than 500 feet (150m) for RS422/RS485 devices and less than 50 feet (15m) for RS232 devices in order to avoid communication problems. -
Page 18: Com2 [Rs232/422/485]
PC100 Series Operation Manual COM2 [RS232/422/485] Pinout Pin # RS232 RS422 RS485 RTS- Not used RTS+ Not used CTS+ Not used Not Used Not used Not used Configuring for RS232, RS422 or RS485 COM2 is configurable as RS232, RS422 or RS485 by configuring jumpers. To do this, jumper pins must be configured at JP3 for the PC110C. - Page 19 PC100 Series Operation Manual Jumper Definition Representation in Diagram jumper block jumper cap 2 pin jumper closed (enabled) 3 pin jumper 2-3 pin closed (enabled) Jumper Block 1-2 pin closed (enabled) 1010-1022 Rev. 01...
- Page 20 PC100 Series Operation Manual Setting COM2 jumpers on PC110C for RS232, RS422 or RS485 1010-1022 Rev. 01...
-
Page 21: Ethernet Port
The PC110C has built-in Type II CompactFlash™ port for use with a CompactFlash card. Audio Ports It is possible to record and play audio files on all PC100 Series Panel PCs with the audio ports. Mic In Record Windows XP compatible sound files by attaching a microphone to the Mic In audio port, available on all PC100 Series models. - Page 22 PC100 Series Operation Manual Maple Systems Inc. 808 134 Street SW, Suite 120 Everett, WA 98204-7333 Phone: (425) 745-3229 Email: maple@maplesystems.com Web: www.maplesystems.com...
