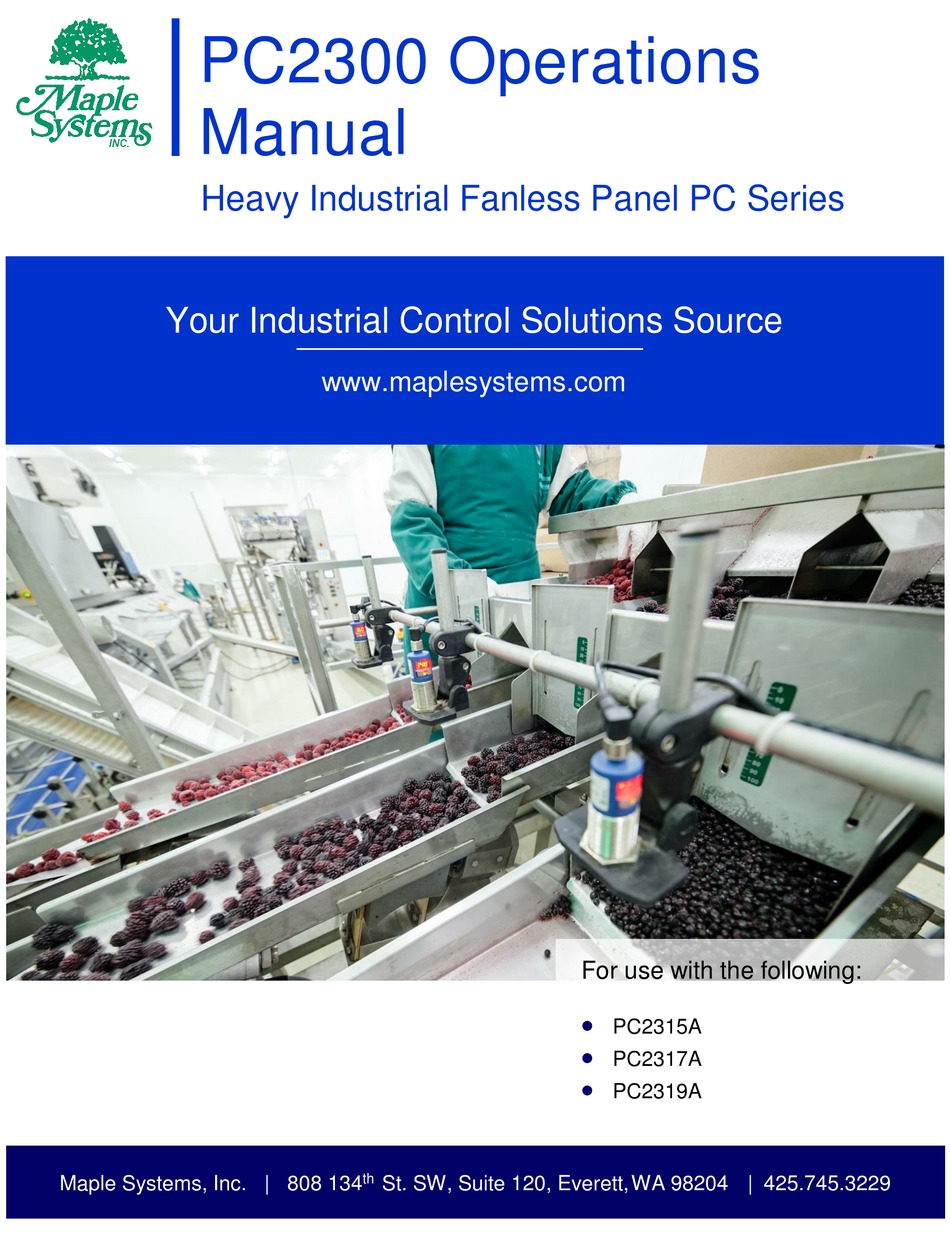

- Page 1 PC2300 Operations Manual Heavy Industrial Fanless Panel PC Series Your Industrial Control Solutions Source www.maplesystems.com For use with the following: PC2315A PC2317A PC2319A Maple Systems, Inc. | 808 134 St. SW, Suite 120, Everett, WA 98204 | 425.745.3229...
-
Page 2: Table Of Contents
SAFETY PRECAUTIONS ......................5 OVERVIEW OF PC2300 SERIES ....................6 SPECIFICATIONS AND DIMENSIONS ..................7 PC2315A SPECIFICATION ......................7 PC2315A DIMENSIONAL DRAWING .................... 8 PC2317A SPECIFICATION ......................9 PC2317A DIMENSIONAL DRAWING ..................10 PC2319A SPECIFICATION ......................11 PC2319A DIMENSIONAL DRAWING ..................12 PANEL MOUNTING ........................ -
Page 3: Copyright Notice
PC2300 Operations Manual COPYRIGHT NOTICE This manual is a publication of Maple Systems, Inc., and is provided for use by its customers only. The contents of the manual are copyrighted by Maple Systems, Inc.; reproduction in whole or in part, for use other than in support of Maple Systems equipment, is prohibited without the specific written permission of Maple Systems. -
Page 4: Unpacking The Unit
Carefully unpack the PC2300. Check all material in the container against the packing list. Maple Systems will not accept responsibility for shortages against the packing list unless notified within 30 days. The equipment and accessories were inspected and tested by Maple Systems before shipment. -
Page 5: Safety Precautions
PC2300 Operations Manual SAFETY PRECAUTIONS Please observe the following precautions when installing the PC2300 Series panel PC. Failure to comply with these restrictions could result in loss of life, serious personal injury, or equipment damage. Warning: Disconnect this equipment from any power before cleaning. Do not use liquid or spray detergents for cleaning. -
Page 6: Overview Of Pc2300 Series
PC2300 Operations Manual OVERVIEW OF PC2300 SERIES The PC2300 Series are fanless heavy industrial LCD touchscreen panel PCs available in 15”, 17”, and 19” screen sizes. The PC2300 are powered by Intel 3 Generation Core Processors, with up to 16GB of RAM. Front view of PC2300 Series PC2300 Bottom I/O view PC2300 Operations Manual... -
Page 7: Specifications And Dimensions
PC2300 Operations Manual SPECIFICATIONS AND DIMENSIONS PC2315A SPECIFICATION Base Model: Intel® Core™ Mobile i3-3120ME processor Upgrade Options: Intel® Core™ Mobile i5-3610ME or i7-3610QE processor System System Chipset Intel QM77 Base Model: 4 GB DDR3L SO-DIMM System Memory Upgrade Options: 8 GB or 16 GB DDR3L SO-DIMM 4 x USB 3.0 type A... -
Page 8: Pc2315A Dimensional Drawing
SIM Card Slot CFast Card Slot Power Switch Power Connector Com Ports DE9P Mic In Line Out Ethernet Ports USB 3.0 Ports Maple Systems Inc., 808 134th Street SW, Suite 120, Everett, WA 98204-7333 • www.maplesystems.com PC2300 Operations Manual ___ 8... -
Page 9: Pc2317A Specification
PC2300 Operations Manual PC2317A SPECIFICATION Base Model: Intel® Core™ Mobile i3-3120ME processor Upgrade Options: Intel® Core™ Mobile i5-3610ME or i7-3610QE processor System System Chipset Intel QM77 Base Model: 4 GB DDR3L SO-DIMM System Memory Upgrade Options: 8 GB or 16 GB DDR3L SO-DIMM 4 x USB 3.0 type A 3 x DE9P COM1/3/4: RS-232 Serial... -
Page 10: Pc2317A Dimensional Drawing
SIM Card Slot CFast Card Slot Power Switch Power Connector Com Ports DE9P Mic In Line Out Ethernet Ports USB 3.0 Ports Maple Systems Inc., 808 134th Street SW, Suite 120, Everett, WA 98204-7333 • www.maplesystems.com PC2300 Operations Manual ___ 10... -
Page 11: Pc2319A Specification
PC2300 Operations Manual PC2319A SPECIFICATION Base Model: Intel® Core™ Mobile i3-3120ME processor Upgrade Options: Intel® Core™ Mobile i5-3610ME or i7-3610QE processor System System Chipset Intel QM77 Base Model: 4 GB DDR3L SO-DIMM System Memory Upgrade Options: 8 GB or 16 GB DDR3L SO-DIMM 4 x USB 3.0 type A 3 x DE9P COM1/3/4: RS-232 Serial... -
Page 12: Pc2319A Dimensional Drawing
SIM Card Slot CFast Card Slot Power Switch Power Connector Com Ports DE9P Mic In Line Out Ethernet Ports USB 3.0 Ports Maple Systems Inc., 808 134th Street SW, Suite 120, Everett, WA 98204-7333 • www.maplesystems.com PC2300 Operations Manual ___ 12... -
Page 13: Panel Mounting
PC2300 Operations Manual PANEL MOUNTING Follow the steps below to panel mount the PC2300: 1. Cut out a section of the panel that corresponds to the cut out dimensions shown on the corresponding dimensional drawing 2. Place the PC2300 through the panel cut out so that the gasket surrounding the PC screen is flush against the panel surface. -
Page 14: Vesa Mounting
PC2300 Operations Manual VESA MOUNTING Select any compatible VESA mounting system and install according to the manufacturer’s instructions. The selected mounting system should be capable of supporting the net weight of the PC2300 as listed in the specifications above. Mounting points on the rear of the unit are compatible with the Video Electronics Standards Association (VESA) Mounting Interface Standard (MIS) Part D. -
Page 15: Touch Screen Calibration
PC2300 Operations Manual TOUCH SCREEN CALIBRATION The PC2300 is shipped with a factory touchscreen calibration and should work out of the box. A calibration tool is preloaded in the event that there is a problem with the factory calibration or the touchscreen needs recalibration. - Page 16 PC2300 Operations Manual 2. Carefully lift the PC sub-assembly and gently rotate it towards the top of the display assembly as shown below. Disconnect the two cables connecting the PC sub-assembly to the display assembly only if necessary. Note: the connectors are keyed to insure the correct orientation when re-connecting. PC2300 Operations Manual ___ 16...
-
Page 17: Install Pci / Pcie Card
PC2300 Operations Manual INSTALL PCI / PCIe CARD 1. Remove the CPU assembly from the display assembly as described above. 2. Remove the PCI mounting bracket PCI card mounting bracket 3. Break out the metal I/O plate cover from the mounting bracket. 4. - Page 18 PC2300 Operations Manual 6. Install the PCI or PCIe riser card (only necessary if not ordered preinstalled). 7. Plug the PCI or PCIe card assembly (from step 4) into the riser card and re-install the PCI mounting bracket onto the PC housing PC2300 Operations Manual ___ 18...
-
Page 19: Install Or Replace Hdd / Ssd
PC2300 Operations Manual INSTALL OR REPLACE HDD / SSD 1. Remove the PC sub-assembly from the display assembly as described above. 2. Disconnect the SATA / SATA Power connectors from the existing drive. 3. Unscrew the four screws holding the drive tray to the PC sub-assembly PC2300 Operations Manual ___ 19... - Page 20 PC2300 Operations Manual 4. If installing an additional hard drive connect the provided SATA/SATA Power connector to the connectors on the PC motherboard. 5. Replace or insert the additional HDD / SSD in the drive tray as needed, using the provided mounting screws.
-
Page 21: I/O Ports
PC2300 Operations Manual I/O PORTS SERIAL COM PORTS Connector Type: 4ea DE9P, COM1, COM2, COM3 and COM4 port. COM1/3/4 COM2 Pin # (RS232) (RS422) PC2300 Operations Manual ___ 21... -
Page 22: Digital I/O Port
PC2300 Operations Manual DIGITAL I/O PORT Connector Type: 1ea DB25S, digital I/O port ASSIGNMENT ASSIGNMENT DIN1 DOUT1 DIN2 DOUT2 DIN3 DOUT3 DIN4 DOUT4 DIN5 DOUT5 DIN6 DOUT6 DIN7 DOUT7 DIN8 DOUT8 VCC12 VCC5 PC2300 Operations Manual ___ 22... -
Page 23: Lan Ports
PC2300 Operations Manual LAN PORTS Connector Type: 2ea RJ45, LAN1 and LAN2 port. LAN1 LAN2 LAN LED Indicator: Left side LED Green Color On: 10/100 LAN Speed Indicator Orange Color On: Giga LAN Speed Indicator Off: No LAN switch/hub connected Right side LED Yellow Color Blinking: LAN Message Active... -
Page 24: Printer Port
PC2300 Operations Manual PRINTER PORT Connector Type: 1ea DB25S, LPT port ASSIGNMENT ASSIGNMENT STBJ ALFJ PDR0 ERRJ PDR1 PAR_INITJ PDR2 SLCTINJ PDR3 PDR4 PDR5 PDR6 PDR7 ACKJ BUSY SLCTJ PC2300 Operations Manual ___ 24... -
Page 25: Power Input
PC2300 Operations Manual POWER INPUT Connector Type: 1ea 4-Pos power connector ASSIGNMENT AUDIO PORTS Connector Type: 3.5mm audio jack LINE OUT (Green) MIC IN (Pink) PC2300 Operations Manual ___ 25... -
Page 26: Usb 3.0 Ports
PC2300 Operations Manual USB 3.0 PORTS Connector Type: 2 ea USB 3.0 type A ports ASSIGNMENT ASSIGNMENT USB_VCC5 USB_VCC5 USB_N1 USB_N2 USB_P1 USB_P2 USB3_1RXN USB3_2RXN USB3_1RXP USB3_2RXP USB3_1TXN USB3_2TXN USB3_1TXP USB3_2TXP PC2300 Operations Manual ___ 26... -
Page 27: Vga Port
PC2300 Operations Manual VGA PORT Connector Type: 1ea DE15S, VGA port ASSIGNMENT ASSIGNMENT CRT_RED CRT_VCC CRT_GREEN CRT_BLUE CRT_DATA CRT_HSYNC CRT_VSYNC CRT_CLK PC2300 Operations Manual ___ 27... -
Page 28: Installation Of Drivers
PC2300 Operations Manual INSTALLATION OF DRIVERS INTRODUCTION The PC2300 comes with a DVD support disk that contains all applicable drivers. Note: Install the drivers immediately after the OS is fully installed. INTEL® CHIPSET SOFTWARE INSTALLATION UTILITY The Intel® Chipset Device Software installs Windows *.INF files to the target system. These files outline to the operating system how to configure the Intel®... -
Page 29: Intel® Management Engine Components Utility
PC2300 Operations Manual INTEL® MANAGEMENT ENGINE COMPONENTS UTILITY The Intel ® ME software components that need to be installed depend on the system's specific hardware and firmware features. The installer detects the system's capabilities and installs the relevant drivers and applications. Installation Instructions for Windows 7 1. -
Page 30: Touchscreen Driver Utility
PC2300 Operations Manual TOUCHSCREEN DRIVER UTILITY The touch screen driver utility can only be installed on Windows XP/7/8, and it should be installed right after the OS installation. Installation of Touchscreen Driver To install the touchscreen driver, follow the steps below: 1. -
Page 31: Ami Bios Set Up
PC2300 Operations Manual AMI BIOS SET UP INTRODUCTION The system PC2300 uses an AMI Aptio BIOS that is stored in the Serial Peripheral Interface Flash Memory (SPI Flash) and can be updated. The SPI Flash contains the BIOS Setup program, Power-on Self-Test (POST), the PCI auto- configuration utility, LAN EEPROM information, and Plug and Play support. -
Page 32: Entering Setup
PC2300 Operations Manual ENTERING SETUP When the system is powered on, the BIOS will enter the Power-On Self Test (POST) routines and the following message will appear on the lower screen: POST screen As long as this message is present on the screen you may press the <Del> key (the one that shares the decimal point at the bottom of the number keypad) to access the Setup program. - Page 33 PC2300 Operations Manual Setup program initial screen You may move the cursor by up/down keys to highlight the individual menu items. As you highlight each item, a brief description of the highlighted selection will appear at the bottom of the screen. PC2300 Operations Manual ___ 33...
-
Page 34: Main
PC2300 Operations Manual MAIN Main Screen BIOS Setting Options Description/Purpose BIOS Vendor No changeable options Displays the BIOS vendor. Core Version No changeable options Displays the current BIOS core version. Project Displays the version of the BIOS currently No changeable options Version installed on the platform. -
Page 35: Advanced
PC2300 Operations Manual ADVANCED Advanced Screen PC2300 Operations Manual ___ 35... - Page 36 PC2300 Operations Manual Advanced - PCI Subsystems Settings PCI Subsystems Settings Screen BIOS Setting Options Description/Purpose -32 PCI Bus Clocks -64 PCI Bus Clocks -96 PCI Bus Clocks -128 PCI Bus Clocks PCI Latency Timer Sets PCI latency time. -160 PCI Bus Clocks -192 PCI Bus Clocks -224 PCI Bus Clocks -248 PCI Bus Clocks...
- Page 37 PC2300 Operations Manual Advanced - ACPI Settings ACPI Settings Screen BIOS Setting Options Description/Purpose ACPI Sleep State -Suspend Disabled Select the highest ACPI sleep state the -S1 only(CPU Stop Clock) system will enter, when the SUSPEND -S3 only(Suspend to RAM) button is pressed.
- Page 38 PC2300 Operations Manual Advanced - CPU Configuration CPU Configuration Screen BIOS Setting Options Description/Purpose CPU Signature no changeable options CPU Signature Microcode Patch no changeable options Microcode Patch Max CPU Speed no changeable options Max CPU Speed Min CPU Speed no changeable options Min CPU Speed CPU speed...
- Page 39 PC2300 Operations Manual BIOS Setting Options Description/Purpose L1 Data Cache no changeable options L1 Data Cache L1 Code no changeable options L1 Code Cache Cache L2 Cache no changeable options L2 Cache L3 Cache no changeable options L3 Cache Hyper- -Disabled Enabled for Windows XP and Linux (OS optimized Threading...
- Page 40 PC2300 Operations Manual Advanced - SATA Configuration SATA Configuration Screen BIOS Setting Options Description/Purpose SATA -Disabled Enable / Disable Serial ATA Controller(s) -Enabled Controller. SATA Mode -IDE SATA controller type selection, corresponding to three Selection -AHCI options: IDE, -RAID RAID and AHCI. IDE Legacy / Native -Native IDE mode selection...
- Page 41 PC2300 Operations Manual Advanced - PCH-FW Configuration PCH-FW Configuration Screen BIOS Setting Options Description/Purpose ME FW Version no changeable options ME FW Version ME Firmware Mode no changeable options ME Firmware Mode ME Firmware Type no changeable options ME Firmware Type ME Firmware SKU no changeable options ME Firmware SKU...
- Page 42 PC2300 Operations Manual Advanced - PCH-FW Configuration - Firmware Update Configuration Firmware Update Configuration Screen BIOS Setting Options Description/Purpose ME FW Image Re-Flash -Disabled Use this item to enable or disable ME -Enabled FW Image Re-Flash function. PC2300 Operations Manual ___ 42...
- Page 43 PC2300 Operations Manual Advanced - USB Configuration USB Configuration Screen BIOS Setting Options Description/Purpose USB Transfer time-out -1 sec Use this item to set the time-out value for control, bulk, -5 sec and interrupt transfers. -10 sec -20 sec Device reset time- out -10 sec Use this item to set USB mass storage device start unit -20 sec...
- Page 44 PC2300 Operations Manual Advanced - NCT6106 Super IO Configuration NCT6106 Super IO Configuration Screen BIOS Setting Options Description/Purpose Super IO Chip No changeable options Displays the super IO chip model. PC2300 Operations Manual ___ 44...
- Page 45 PC2300 Operations Manual Advanced - NCT6106 Super IO Configuration - Serial Port 0 Configuration Serial Port 0 Configuration Screen BIOS Setting Options Description/Purpose Serial Port -Disabled Configures the serial port 0. -Enabled Device No changeable options Reports the current serial port 0 Settings setting.
- Page 46 PC2300 Operations Manual Advanced - NCT6106 Super IO Configuration - Serial Port 1 Configuration Serial Port 1 Configuration Screen BIOS Setting Options Description/Purpose Serial Port -Disabled Configures the serial port 1. -Enabled Device No changeable options Reports the current serial port 1 Settings setting.
- Page 47 PC2300 Operations Manual Advanced - NCT6106 Super IO Configuration - Serial Port 2 Configuration Serial Port 2 Configuration Screen BIOS Setting Options Description/Purpose Serial Port -Disabled Configures the serial port 2. -Enabled Device No changeable options Reports the current serial port 2 setting. Settings Change -Auto...
- Page 48 PC2300 Operations Manual Advanced - NCT6106 Super IO Configuration - Serial Port 3 Configuration Serial Port 3 Configuration Screen BIOS Setting Options Description/Purpose Serial Port -Disabled Configures the serial port 3. -Enabled Device No changeable options Reports the current serial port 3 setting. Settings Change -Auto...
- Page 49 PC2300 Operations Manual Advanced - NCT6106 Super IO Configuration - Serial Port 4 Configuration Serial Port 4 Configuration Screen BIOS Setting Options Description/Purpose Serial Port -Disabled Configures the serial port 4. -Enabled Device No changeable options Reports the current serial port 4 Settings setting.
- Page 50 PC2300 Operations Manual Advanced - NCT6106 Super IO Configuration - Serial Port 5 Configuration Serial Port 5 Configuration Screen BIOS Setting Options Description/Purpose Serial Port -Disabled Configures the serial port 5. -Enabled Device No changeable options Reports the current serial port 5 setting. Settings Change -Auto...
- Page 51 PC2300 Operations Manual Advanced - NCT6106 Super IO Configuration - Parallel Port Configuration Parallel Port Configuration Screen BIOS Setting Options Description/Purpose Parallel Port -Disabled Configures the parallel port. -Enabled Change -Auto Specifies the base I/O address and interrupt Settings -IO=378h; IRQ=5 request for the parallel port if enabled.
- Page 52 PC2300 Operations Manual Advanced - NCT6106 HW Monitor NCT6106 HW Monitor Screen BIOS Setting Options Description/Purpose SYS Thermistor No changeable options Display system temperature. Temp CPU Diode No changeable options Display processor's temperature. Temp SysFan Speed No changeable options Display fan speed of the System fan. CpuFan Speed No changeable options Display fan speed of the CPU fan.
- Page 53 PC2300 Operations Manual Advanced - WatchDog Configuration WatchDog Configuration Screen BIOS Setting Options Description/Purpose Watchdog multiple options ranging Sets the desired value for timeout value from 0 to 255 watchdog timer. 0 means disabled. PC2300 Operations Manual ___ 53...
-
Page 54: Chipset
PC2300 Operations Manual CHIPSET Chipset Screen PC2300 Operations Manual ___ 54... - Page 55 PC2300 Operations Manual Chipset – PCH-IO Configuration Screen PCH-IO Configuration Screen BIOS Setting Options Description/Purpose Intel PCH SKU No changeable Displays Intel PCH SKU Name. Name options Intel PCH Rev ID No changeable Display Intel PCH Rev ID. options PCH LAN -Enabled Enable or disable onboard NIC.
- Page 56 PC2300 Operations Manual Chipset - PCH-IO Configuration - PCH Azalia Configuration PCH Azalia Configuration Screen BIOS Setting Options Description/Purpose Azalia -Disabled The Audio Configuration settings -Enabled Enable/Disable the Azalia HD Audio. -Auto Azalia Internal -Disabled Use this item to enable or disable HDMI Codec -Enabled internal HDMI codec for Azalia.
- Page 57 PC2300 Operations Manual Chipset - System Agent (SA) Configuration System Agent (SA) Configuration Screen BIOS Setting Options Description/Purpose System Agent No changeable options Displays System Agent Bridge Name. Bridge Name System Agent No changeable options Display System Agent RC Version. RC Version VT-d No changeable options...
- Page 58 PC2300 Operations Manual Chipset - System Agent (SA) Configuration - Graphics Configuration Graphics Configuration Screen BIOS Setting Options Description/Purpose Primary Display -Auto Select which of IGFX/PEG/PCI graphics device should be -IGFX primary display or select SG for switchable Gfx. -PEG -PCI Internal Graphics -Auto...
- Page 59 PC2300 Operations Manual BIOS Setting Options Description/Purpose DVMT Pre- -32MB Select DVMT 5.0 Pre-Allocated (Fixed) graphics memory Allocated -64MB size used by the internal graphics device. -96MB -128MB -160MB -192MB -224MB -156MB -288MB -320MB -352MB -384MB -416MB -448MB -480MB -512MB -1024MB DVMT Total Gfx -128MB...
- Page 60 PC2300 Operations Manual Chipset - System Agent (SA) Configuration - Graphics Configuration - LCD Control LCD Control Screen BIOS Setting Options Description/Purpose Primary IGFX -VBIOS Default Select the Video Device, which will be activated Boot Display -CRT during POST. This has no effect if external graphics -EFP present.
- Page 61 PC2300 Operations Manual BIOS Setting Options Description/Purpose LVDS1 -1280x1024 LVDS -1400x1050(RB) LVDS1 -1400x1050 LVDS2 -1600x1200 LVDS -1366x768 LVDS -1680x1050 LVDS -1920x1200 LVDS1 -1440x900 LVDS -1600x900 LVDS -1024x768 LVDS2 -1280x800 LVDS -1920x1080 LVDS -2048x1536 LVDS Active LFP -No LVDS Select the Active LFP Configuration. No LVDS: VBIOS -Int-LVDS does not enable LVDS.
-
Page 62: Boot
PC2300 Operations Manual BOOT Boot Screen BIOS Setting Options Description/Purpose Boot Option -[drive(s)] Allows to set boot option listed in Hard Drive BBS -Disabled Priorities. PC2300 Operations Manual ___ 62... -
Page 63: Security
PC2300 Operations Manual SECURITY Security Screen BIOS Setting Options Description/Purpose Administrator Password can be up to 20 Specifies the administrator password. Password alphanumeric characters. User Password can be up to 20 Specifies the user password. Password alphanumeric characters. PC2300 Operations Manual ___ 63... -
Page 64: Save & Exit
PC2300 Operations Manual SAVE & EXIT Save & Exit Screen BIOS Setting Options Description/Purpose Save Changes No changeable options Exits and saves the changes in CMOS SRAM. and Exit Discard Changes No changeable options Exits without saving any changes made in BIOS and Exit settings. -
Page 65: Flash Bios Update
PC2300 Operations Manual FLASH BIOS UPDATE Before System BIOS Update: 1. Prepare a bootable media (e.g. USB storage device) which can boot system to DOS prompt. 2. Download and save the BIOS file (e.g. 620x0Pxx.bin) to the bootable device. 3. Copy AMI flash utility – AFUDOS.exe (V2.35) into a bootable device 4. - Page 66 PC2300 Operations Manual AFUDOS command for system BIOS update AFUDOS.exe is aforementioned AMI firmware update utility; the command line is shown as below: AFUDOS <ROM File Name> [option1] [option2]… You can type AFUDOS /? to see all the definition of each control options. The recommended options for BIOS ROM update consist of following parameters: /P: program main BIOS image /B: program Boot Block...
- Page 67 PC2300 Operations Manual 7. Verify during the following boot that BIOS version displayed at the initialization screen has changed PC2300 Operations Manual ___ 67...
-
Page 68: Wonderware / Indusoft Webstudio On An Pc2300
PC2300 Operations Manual WONDERWARE / INDUSOFT WEBSTUDIO on an PC2300 All of the PC2300 series Panel PCs are compatible with Wonderware / Indusoft Web Studio. The choice of operating system will determine the target platform and runtime license required as shown in the chart below: Operating System Runtime License* Target Platform... - Page 69 PC2300 Operations Manual Your Industrial Control Solutions Source www.maplesystems.com 1010-1047 Rev 00 Maple Systems, Inc. | 808 134 St. SW, Suite 120, Everett, WA 98204 | 425.745.3229 PC2300 Operations Manual ___ 69...
