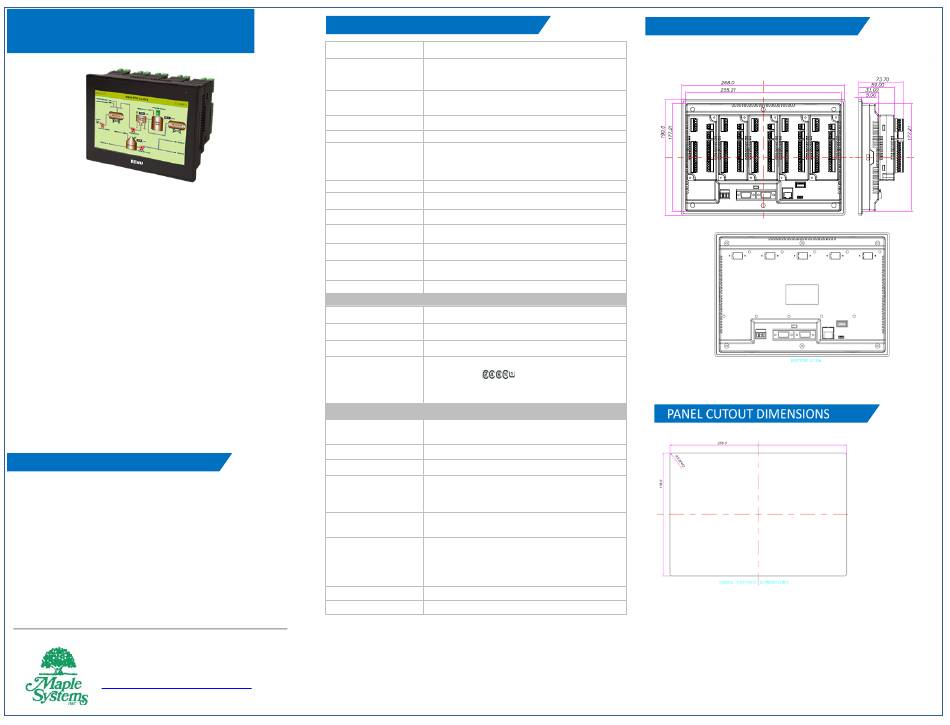

HMC4101A-M Series
QUICK START GUIDE
Product Description:
HMC4101A-M: 1024 x 600, WSVGA, 10.1" color TFT with
4-wire analog resistive touch screen with 2 comm port,
one USB Type C port, one USB Host port, 1 Ethernet Port
& SD card slot. It supports up to 5 expansions.
Contents:
1ea HMC4101A-M (bagged and sealed)
1ea Mounting kit (4ea mounting clips)
1ea Input Power connector plug
1ea Quick Strat Guide
GETTING STARTED
Perform the following steps to configure and use the
HMC4000 Series unit:
1. Install MAPware-7000 software.
2. Create your project.
3. Connect a programming cable (USB or Ethernet).
4. Save your project.
5. Download project to HMC4101 (note: you must select
the Download Firmware option for the initial download).
6. The HMC4000 unit is ready to use in the system.
For More Information, visit
https:\\www.maplesystems.com
SPECIFICATIONS
Power (Base) 24VDC(±15%), 270mA, 6.48W
Power
24VDC(±15%), 520mA, 12.48W
(with 5 Expansions)
10.1", 1024 x 600pixels, WSVGA color TFT with
Display
4-wire analog resistive touch screen
1
LEDs
RAM Memory 512MB
Up to 1GB that includes user application, data
User Application log, alarms, retentive memory and logic
memory
Internal Datalog 50 MB
eMMC 4GB
RTC Built-in, date and time function
Expansion Supports 5 expansion slots
Weight Approx. 900gm
Product Dimensions 268.0(W) x 190.0(H) x 36.8(D)mm
Panel Cut-out 256.00(W) x 178.00(H)mm
Communication
COM1 and COM2 2 x RS232/RS485
USB Ports 1 USB Type C Port and 1 USB Host Port
Ethernet 1 Ethernet Port
Micro SD [High Capacity (4GB to 32GB)]
Speed Class:
SD Card
[While inserting and removing SD card, please make
sure to TURNOFF the power to the unit.]
Environment & Approvals
Operating
0° to 50°C
Temperature
Storage Temperature -20° to 85°C
Humidity 10 to 95% (Non-Condensing)
IEC 60068-2-27
Shock 25g, 11ms, 6 shocks per axis, total 18 shocks (X,
Y, Z)
IEC 60068-2-6
Vibration
5 to 150Hz, 3g peak (X, Y, Z)
EN 55011 : 2009/A1 : 2010
EN 61131-2 : 2007
EMC
EN 61000-6-2 : 2005/AC : 2005
EN 61000-6-4 : 2007/A1 : 2011
Protection IP66 for front panel mounting
APPROVALS CE, UL (Class1 Div2) & RoHS
PRODUCT DIMENSIONS
[Panel Cutout Dimensions: 256.00(W) x 178.00(H)mm,
Panel Thickness: Maximum 6mm and Mounting Clamps: 6]
Tighten the mounting screws evenly to a torque between 0.4N/m
to maintain water and dust resistance.
AW-10114101AM Rev. 00, 02/18/22
