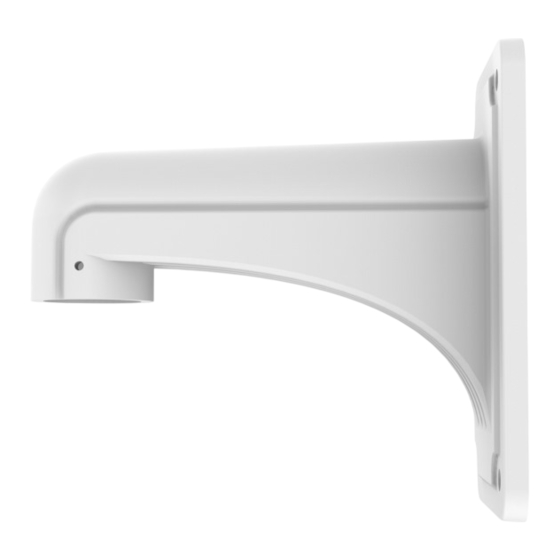

Eneo DOME-WB6 Quick Installation Manual

Eneo DOME-WB6 Quick Installation Manual

Advertisement

PRIOR to USE

Install the mount onto a strong structure such as concrete wall
Use the supplied accessories when installing the mount bracket depends on mounting position

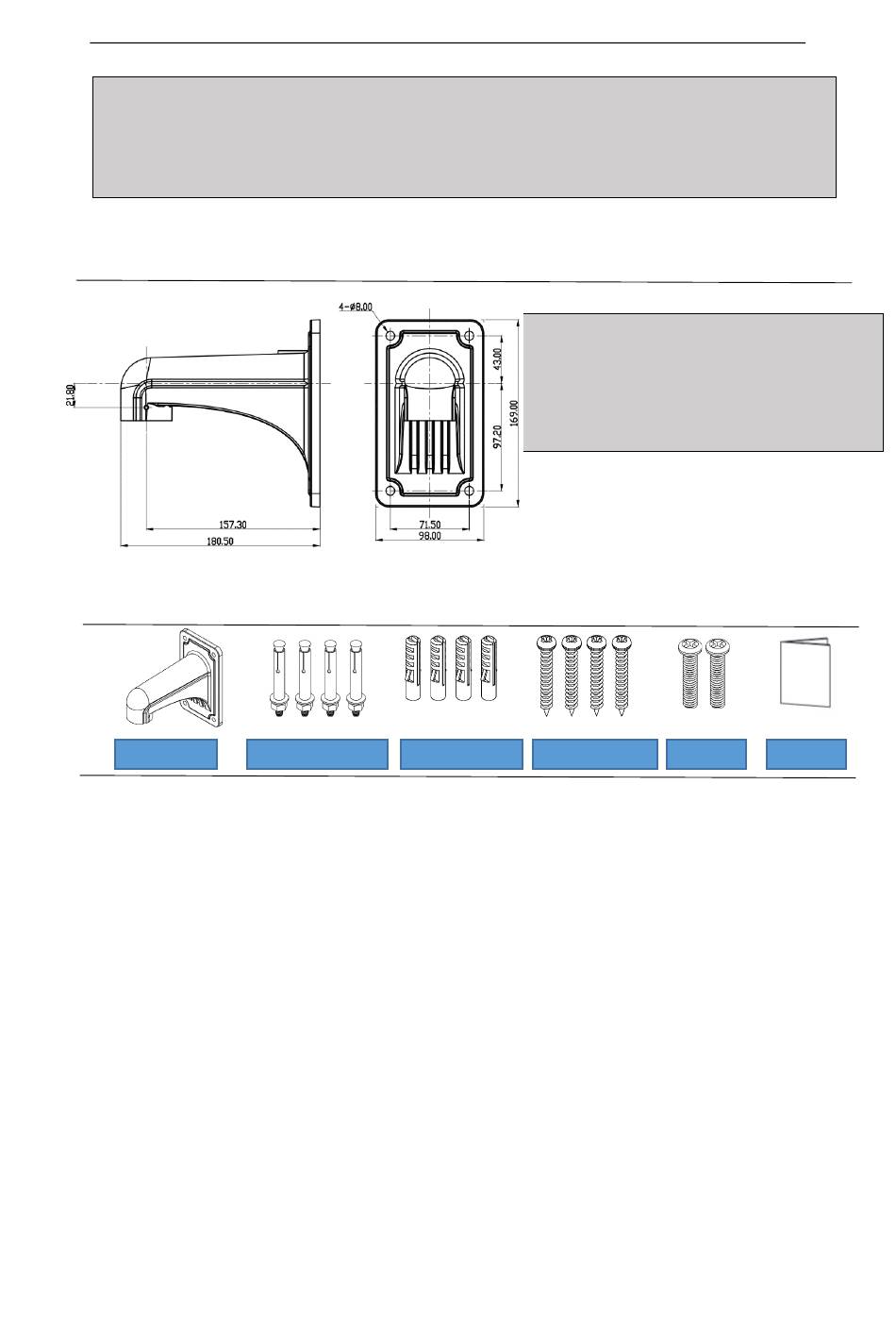

DIMENSION

(Unit: mm)

PARTS SUPPLIED

Bracket
4xExpansion Bolt Sets
Dome-WB6 Quick Installation Guide (EN)
Construction: Aluminum Cast
Environment: Wall/Pillar/Corner Mount
Dimension (mm): 169.0x98.0x180.5mm
Weight: 805g (1.77lb)
4x Expansion Bolt

SPECIFICATION

4x Screws PA5*35
2xScrews
QIG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DOME-WB6 and is the answer not in the manual?

Questions and answers

Summary of Contents for Eneo DOME-WB6

  • Page 1 Dome-WB6 Quick Installation Guide (EN) PRIOR to USE Install the mount onto a strong structure such as concrete wall Use the supplied accessories when installing the mount bracket depends on mounting position DIMENSION SPECIFICATION (Unit: mm) Construction: Aluminum Cast Environment: Wall/Pillar/Corner Mount Dimension (mm): 169.0x98.0x180.5mm...
  • Page 2 Dome-WB6 Quick Installation Guide (EN) INSTALLATION  Wall Mount Allow you match with the Junction Box with thread structure 1. Locate the mounting template at the installation position and drill the wall. 2. Remove the release paper of bracket pad and attach to rear plate of the bracket 3.
  • Page 3 Dome-WB6 Quick Installation Guide (EN) 2. The Bracket can match the Junction Box (AK-23 & AK-25 etc) with thread Structure, which can install with the Dome camera (RB/FG),...
  • Page 4 Dome-WB6 Quick Installation Guide (EN)  Corner Mount The Bracket can match one corner bracket for the Corner Mount, based on the above- mentioned dome/bullet cameras (ND/NI/FG/RB) Pillar Mount  Bracket can match one Pillar bracket for the Pole Mount, based on the above-mentioned...
