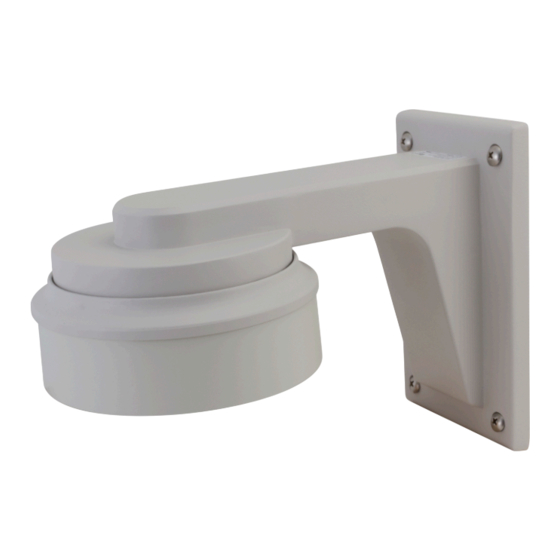

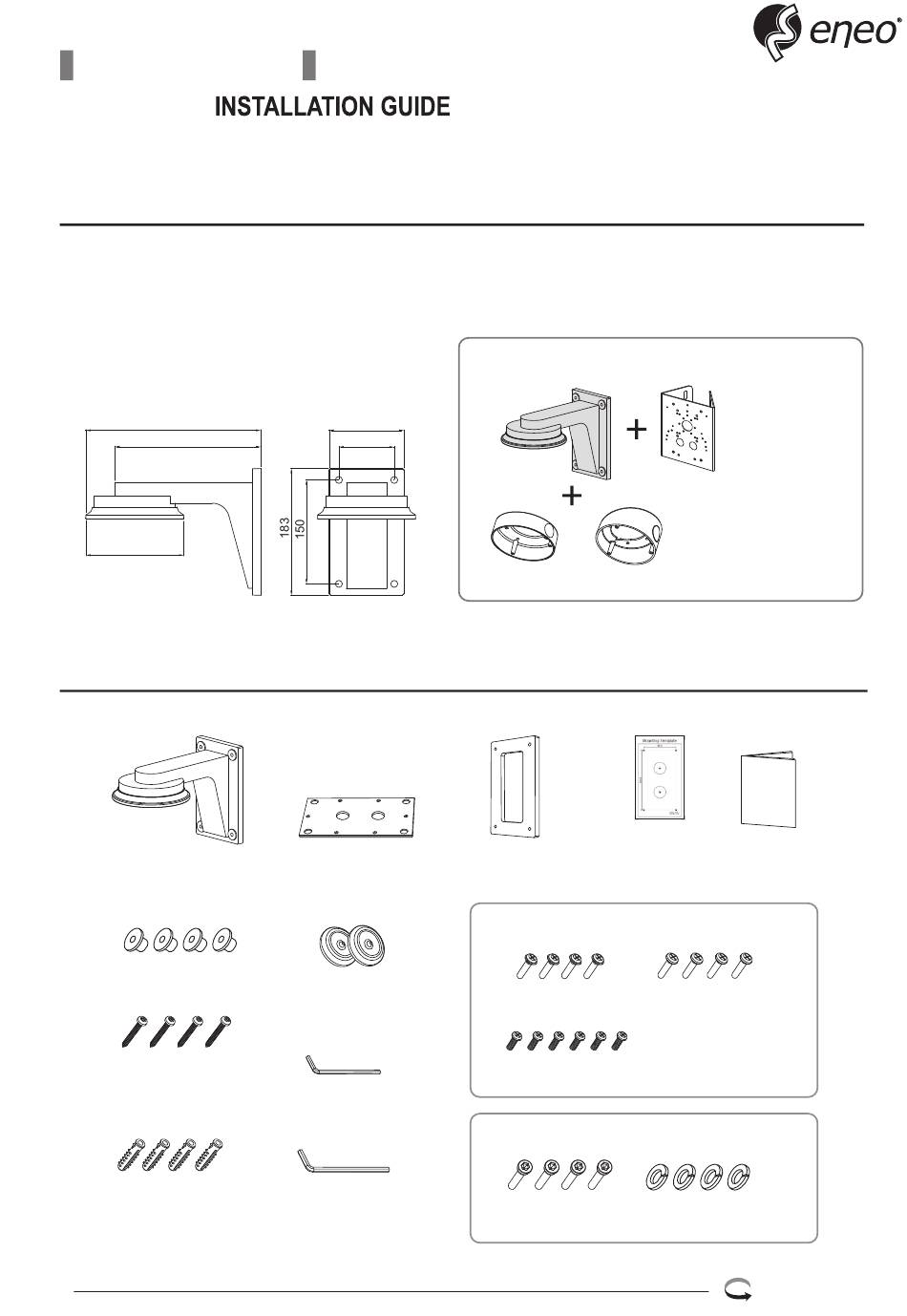

Eneo DOME-WB1 B Installation Manual

DOME-WB1 B
PRIOR to USE
Install the mount onto a strong structure such as concrete
wall. Use the supplied accessories when installing the
mount bracket depends on mounting position.
DIMENSION
(unit: mm)
252.7
211
Ø141.4
PARTS SUPPLIED
Wall Mount Bracket
SUS Bushing (Q'ty:4)
Mounting Screw
M5x50mm (Q'ty:4)
Plastic Anchor
8x35mm (Q'ty:4)
for Vandalproof dome
108
80
Plastic Plate
Rear-Plate
(Q'ty:1)
Cable Grommet
(Q'ty:2)
L-Wrench
3mm(Q'ty:1)
L-Wrench
5mm (Q'ty:1)
SPECIFICATION
Construction: Aluminum cast
Environment: Wall mount for a Vandalproof dome
Dimension(mm): Ø141.4(W)x183(H)x252.7(L)
Weight: 1 kg (2.2 lb)
APPLICATION
(DOME/BASIS1) (DOME/WEDGE2)
Mounting
(Q'ty:1)
Template
Assembly Screw : for main bracket
M3x12mm (Q'ty:4)
M3x8mm (Q'ty:6)
Mounting Screw : for Pole mount adaptor
M6x30mm (Q'ty:4) Spring Washer (Q'ty:4)
Pole mount adapter :
Mounting on the
pole-like structure
(PM-42A)
Surface mount or
Tilted mount adaptor
Installation
Guide
M4x12mm (Q'ty:4)
Screwed in Mount-Plate
Please Turn Over
