Digital Cap Heat Press Manual
Digital Cap Heat Press Manual

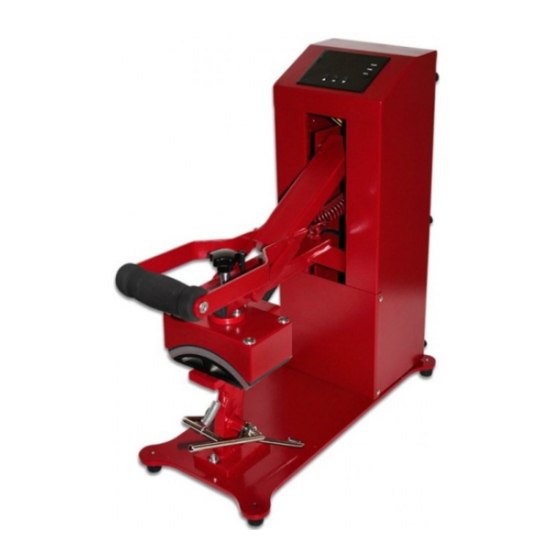

Model No.: DCP-100B
CONTENTS
I. Assembly Drawing -----------------------------------------------------------------------------------2
II. Technical Parameters ------------------------------------------------------------------------------2
III. Operation Process -------------------------------------------------------------------------------3-4
IV. Maintenance ------------------------------------------------------------------------------------------4
V. Trouble Shooting For Transfer Print Quality------------------------------------------------5
VI. Circuit Diagram --------------------------------------------------------------------------------------6
VII. Explosion View -----------------------------------------------------------------------------------7-8
- 1 -
Advertisement
Table of Contents
Related Manuals for Microtec DCP-100B
Summary of Contents for Microtec DCP-100B
- Page 1 Digital Cap Heat Press Manual Digital Cap Heat Press Manual Model No.: DCP-100B CONTENTS I. Assembly Drawing -----------------------------------------------------------------------------------2 II. Technical Parameters ------------------------------------------------------------------------------2 III. Operation Process -------------------------------------------------------------------------------3-4 IV. Maintenance ------------------------------------------------------------------------------------------4 V. Trouble Shooting For Transfer Print Quality------------------------------------------------5 VI. Circuit Diagram --------------------------------------------------------------------------------------6 VII.

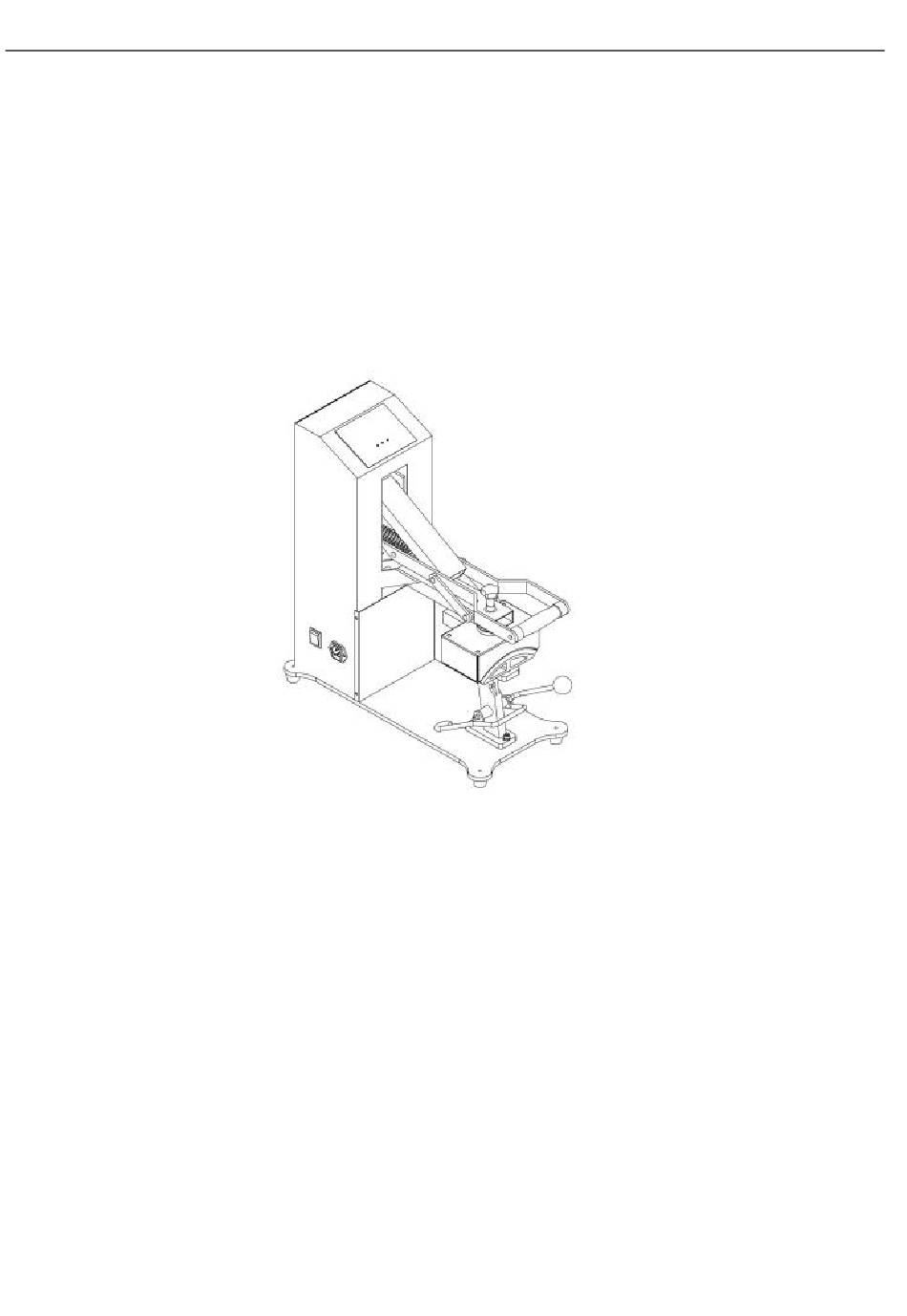

- Page 2 ○ Support Plate Hat Rack ○ ○ II. Technical Parameters 1. Model No.: DCP-100B 2. Machine Dimension: 525*540*225mm 3. Cap Heater Size: for normal caps 4. Printable Articles Max Size: 80*130*10mm 5. Voltage: 220V/1Phase; 110V/1Phase 6. Power: 0.5KW 7. Recommend Setting: 30~280s; 180~200°C Time Range: 0~999s Maximum Temp: 225 C°...
- Page 3 Digital Cap Heat Press Manual III. Operating Process 1. Set temperature required Turn on power switch, temperature Press button, the temp light Press button, the light is light is ON. The digital display shows on (C denotes Celsius). Press is ON. Press Up “△” or Down “▽” arrows “△”...
- Page 4 Digital Cap Heat Press Manual heat platen temperature is 200 °C but the display shows 180°C, press Down button“▽”to set to -20, and then press button 5 seconds return to operation mode 3. Printing methods Step 1: Make sure the cord is connected well to the wall socket. Place the cap in the cap heater, and transfer paper with images facing down the cap, adjust moderate pressure, and power on.
- Page 5 Digital Cap Heat Press Manual 6. The setting temp and time becomes abnormal after exchange the cap heater. 1). Please reset the temp and time according the operation process manual. 7. Other notice 1). In order to prolong the machine service life, please add the lubrication oil regularly on the joints. 2).
- Page 6 Digital Cap Heat Press Manual VI. Circuit Diagram FU:Fuse : Power Switch SJ: Digital Controller :Heating Pipe R1:Relay T: Transformer - 6 -...
- Page 7 Digital Cap Heat Press Manual VII. Explosion View - 7 -...
- Page 8 Digital Cap Heat Press Manual Electrical Case Serial No. Part Name Machine Base Back Cover Rubber Foot GY-04 Digital Controller Cap Rack Handle Power Switch Cap Rack Power Socket Support Plate Power Cord Spring Support Arm Cap Under Plate Connect Piece Spring Connect Piece Cap Heater...
